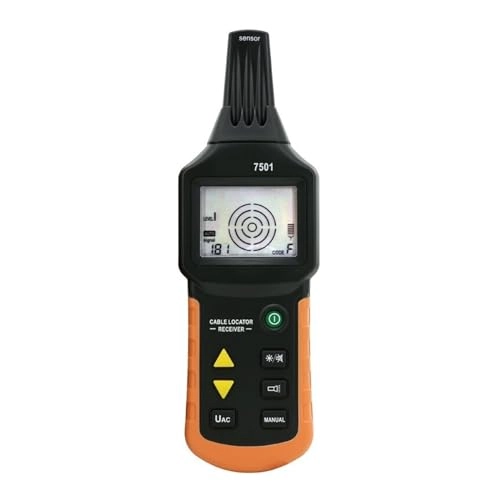

nmbhus VC7501

Technical parameters of the transmitter Temperature Measurement Specifications +2.5°C Show LCD, with function indicator and bar graph External voltage dielectric strength Max 400VAC/DC Overvoltage category CATIII 300V Power Supply 1x9V Power consumption Minimum current Approx. 31mA Maximum current. Approx. 115mA fuse F0.5A 1000V, 6.3x32mm Temperature Range Operando -10°C to 50°C, Max. 80% relative humidity (non-condensing) Storage. 20°C to +60°C, max. 80% relative humidity (non-condensing) Altitude Maximum 2000 m Dimensions (H x W x D) Dimensions (H x W x D) 190mm x 89mm x 42.5mm Without battery Approx. 360g With battery Approx. 420g Technical parameters of the receiver Tracking Depth The depth of tracking depends on the medium and the specific application. Cable Positioning Mode Single-polar applications Approx. 0 to 2 meters Bipolar Applications Approx. 0 to 0.5 m Individual return lines Up to 2.5 m Identification of mains voltage Approx. 0 to 0.4 m Show LCD, with function indicator and bar graph Power Supply 6x1.5VAAA Power consumption Minimum current Approx. 32mA Maximum current. Approx. 89mA Temperature Range Operando -10°C to 50°C, Max. 80% RH (non-condensing) Storage. -20°C to +60°C, max. 80% RH (non-condensing) Altitude Max. 2000 meters Dimensions (H x W x D) 24.5mmX78mmX38.5mm Weight: Without battery Approx. 280g With battery Approx. 350g
