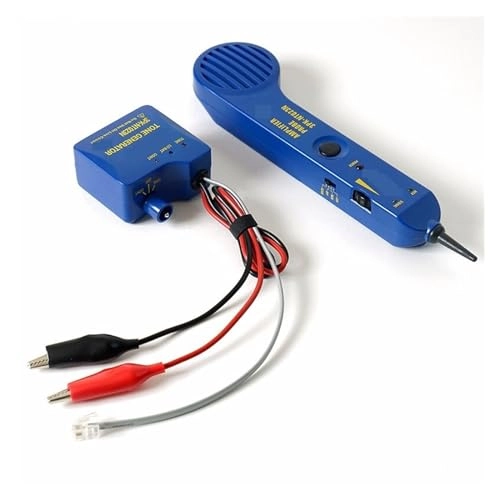

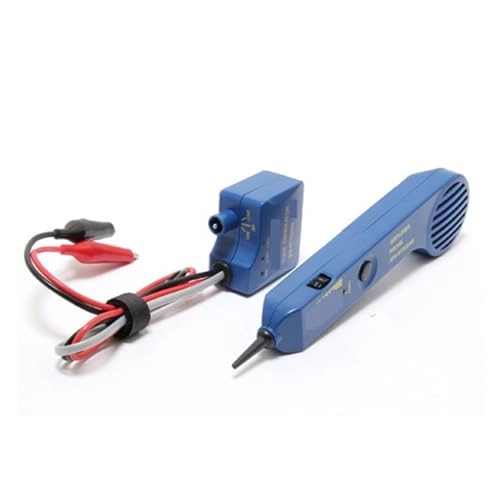

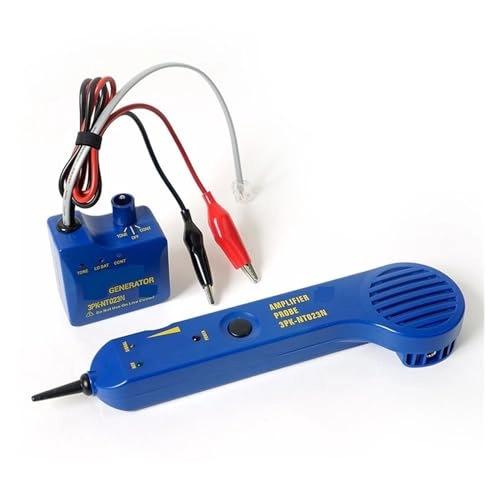

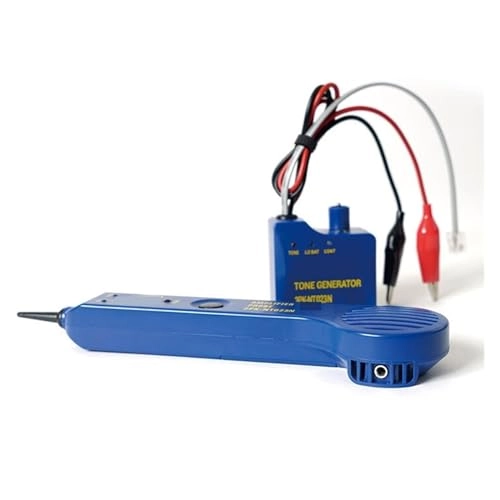

nmbhus 531001093194 - RJ11 (6pin2c), Alligator Clips Short circuit/conductivity test

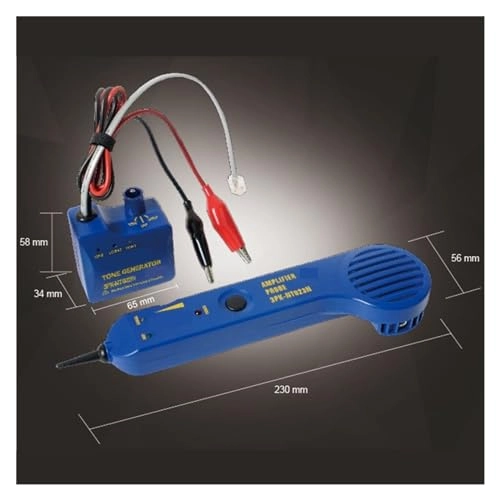

Audio Effective Test Distance 1.5 km Maximum operating current ≤20mA tone Single Tone/Dual Tone Checkable connection RJ11 (6pin2c), Alligator Clips Function Selection 3 Position Switch (TON/OFF/CONT) Short circuit/conductivity test 1 LED (≥10Ω), Coaxial Cable and General Unipole / Coaxial cable line test and general single-core/multi-core stranded cable with alligator clips Output signal voltage 8Vp-p LED Indicator No. Power indicator x 1, phone line positive/negative polarity indicator x 1 Telephone Line Status Indicator 1 Testing of telecommunications equipment and routers Live Power Test Yes Voltage Protection DC 48V Battery Low Voltage Indication 7V (power indicator flashing) Battery DC 9.0V (1604/6F22DC9Vx1pcs) Dimensions (LxWxH) 65×58×34 millimeters Weight (L x W x H) 62g Maximum operating current <;70mA Function Selection 4 segment slide switch (LED lighting, non-contact power check, off, wire search) Signal strength indication LED indicator buzzer Non-contact power check (NCV) LED indicator buzzer (AC 90~1000V) work light Yes Power indicator 1 x LED Battery DC 9.0V (1604/6F22 DC 9V x 1pcs) Dimensions (L x W x H) 230×56×25mm Weight: 80g
