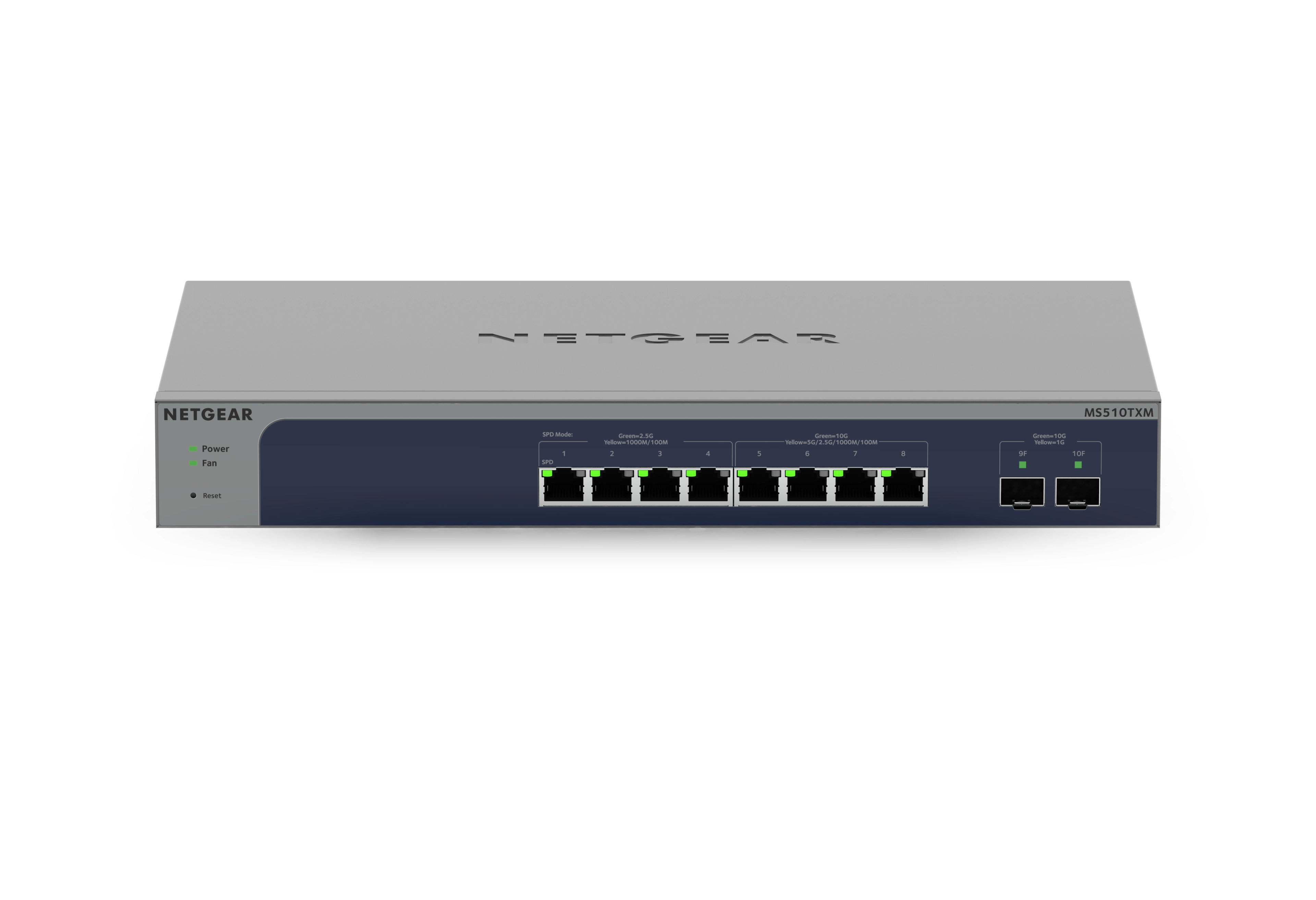

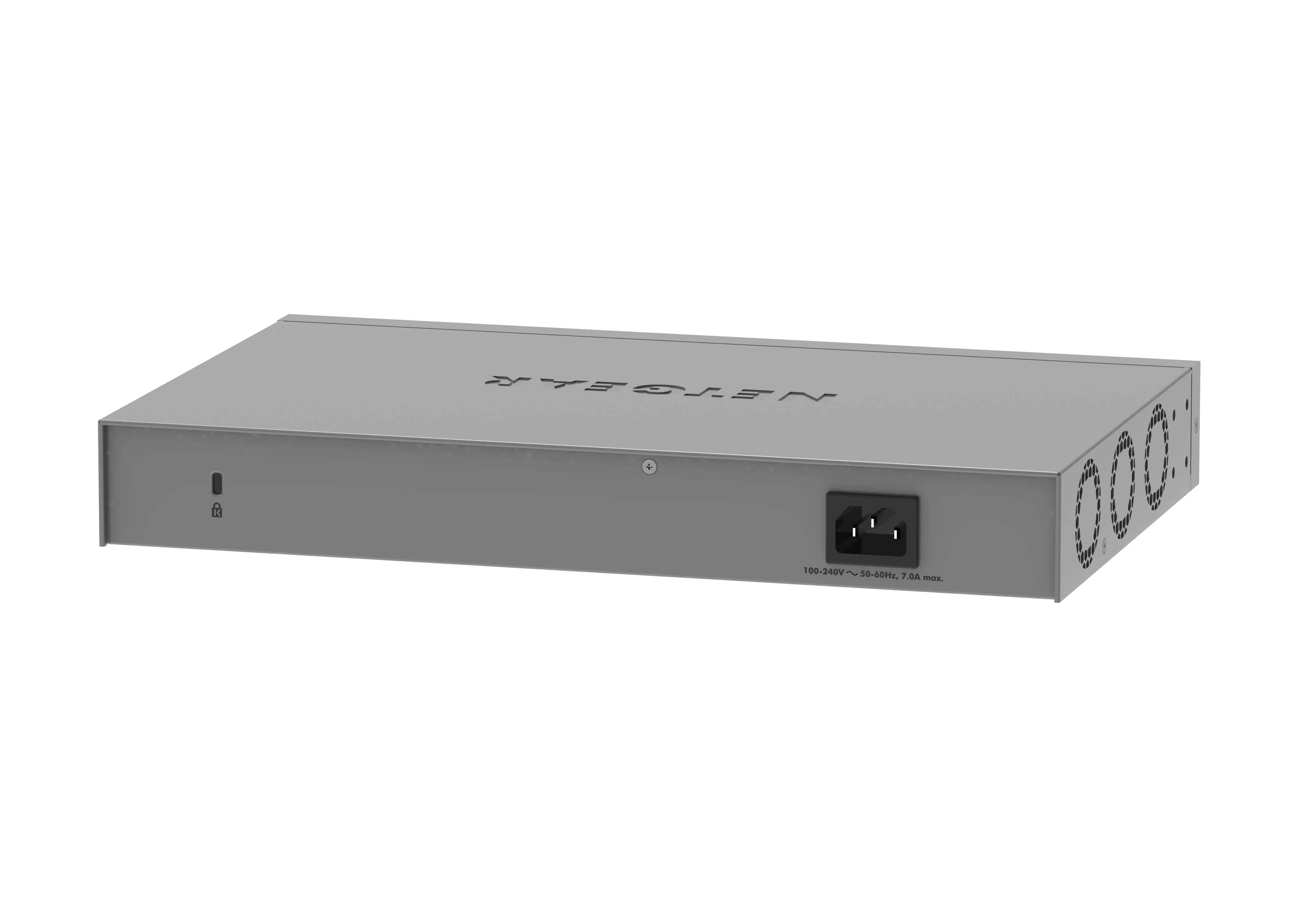

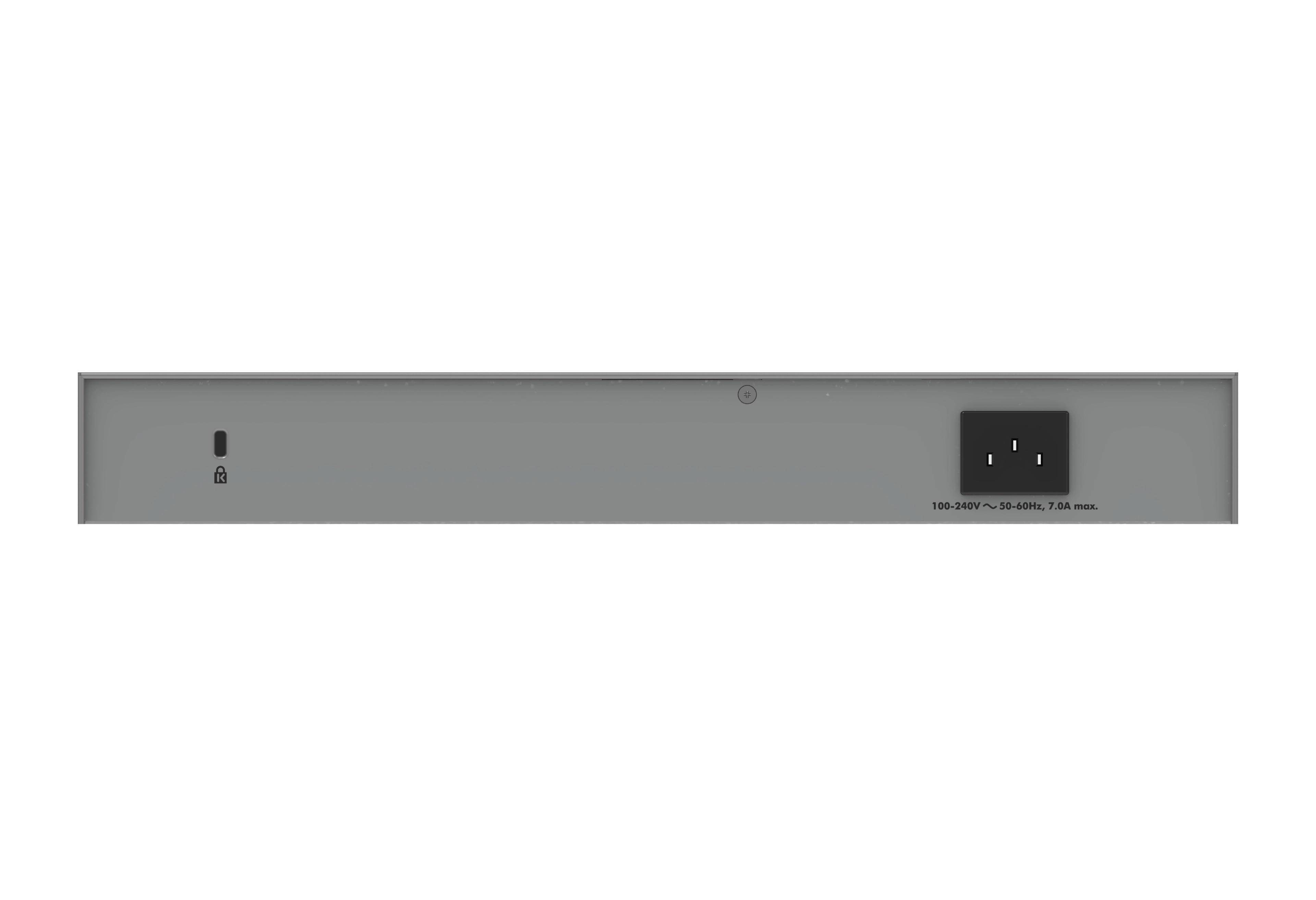

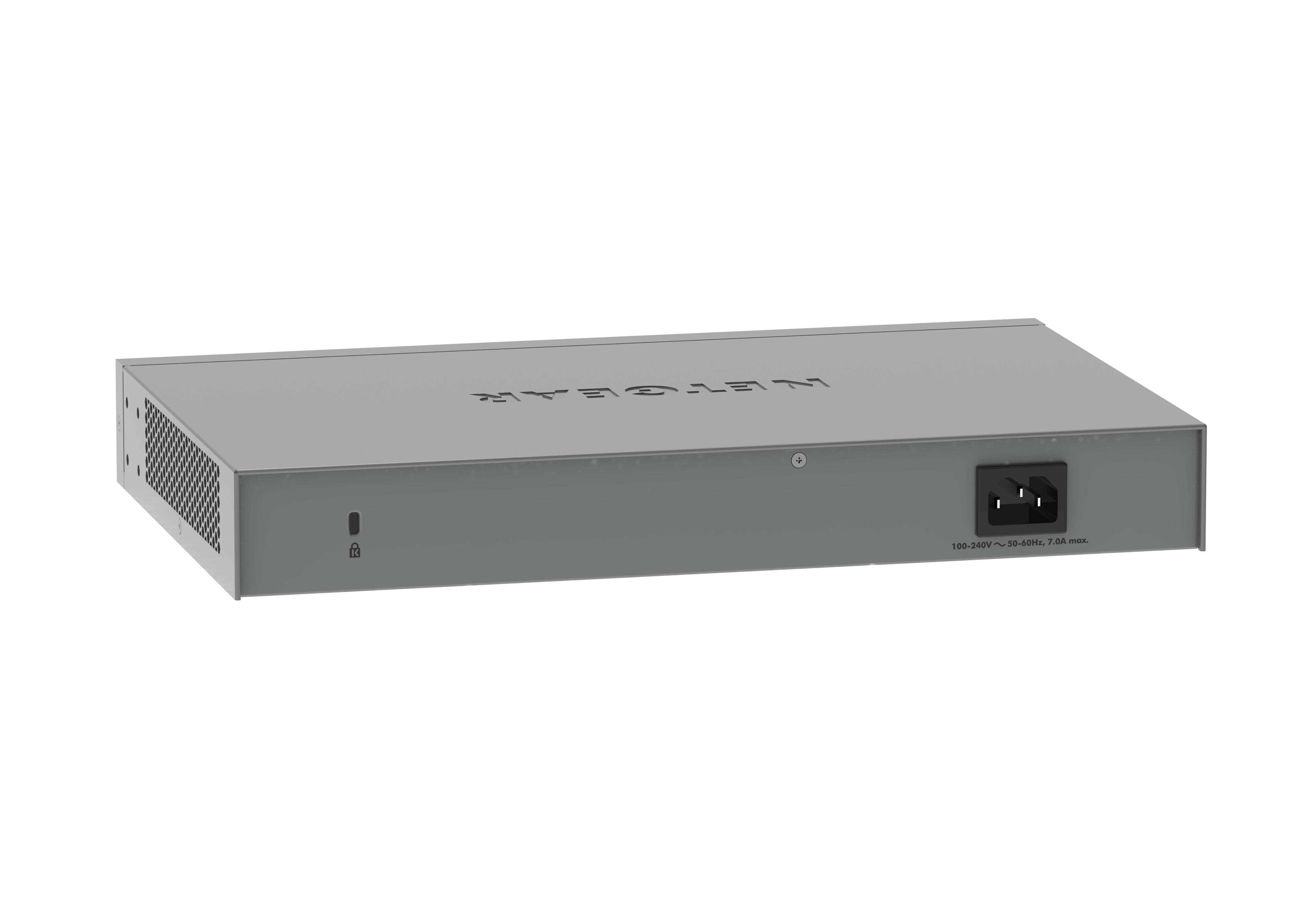

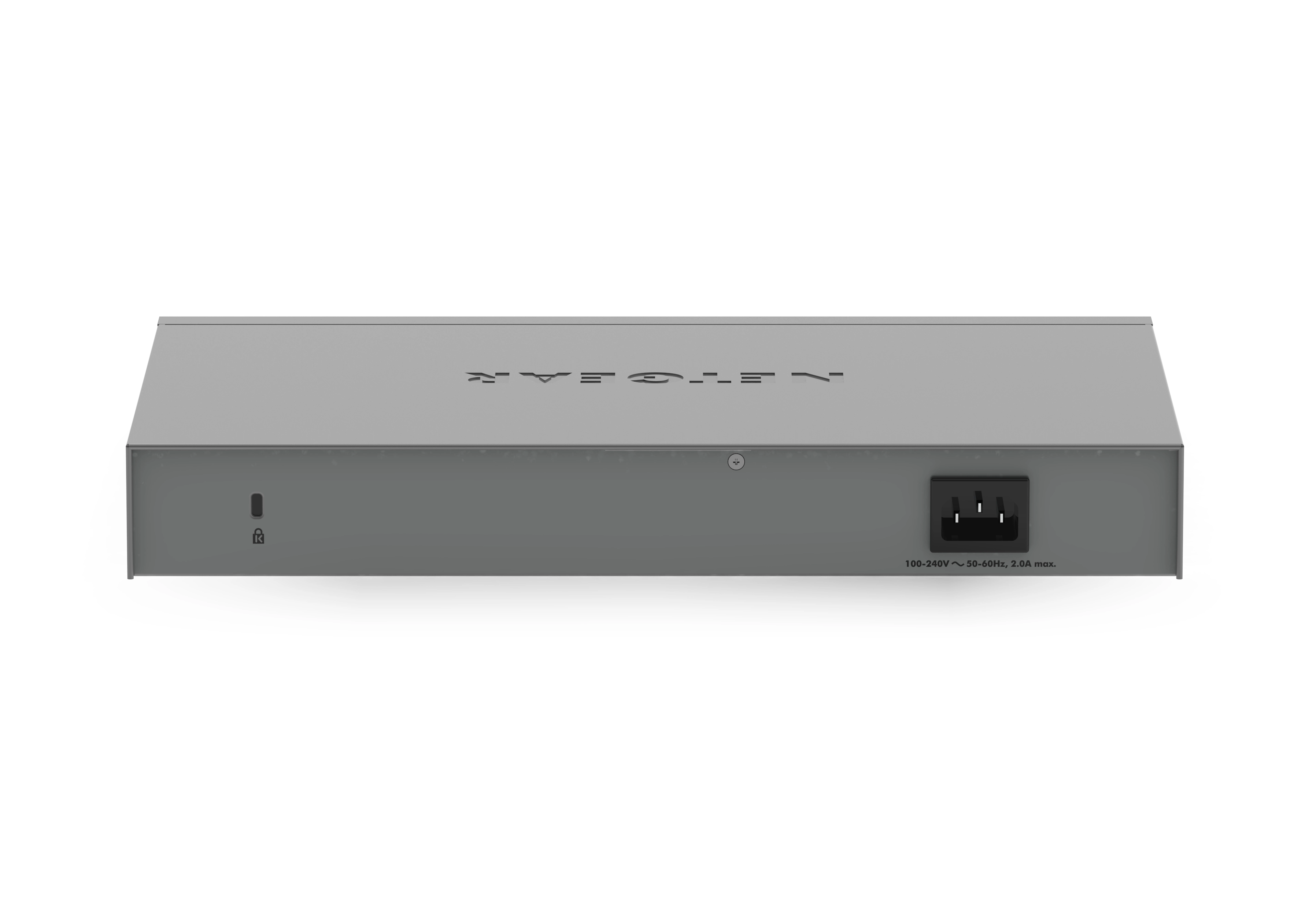

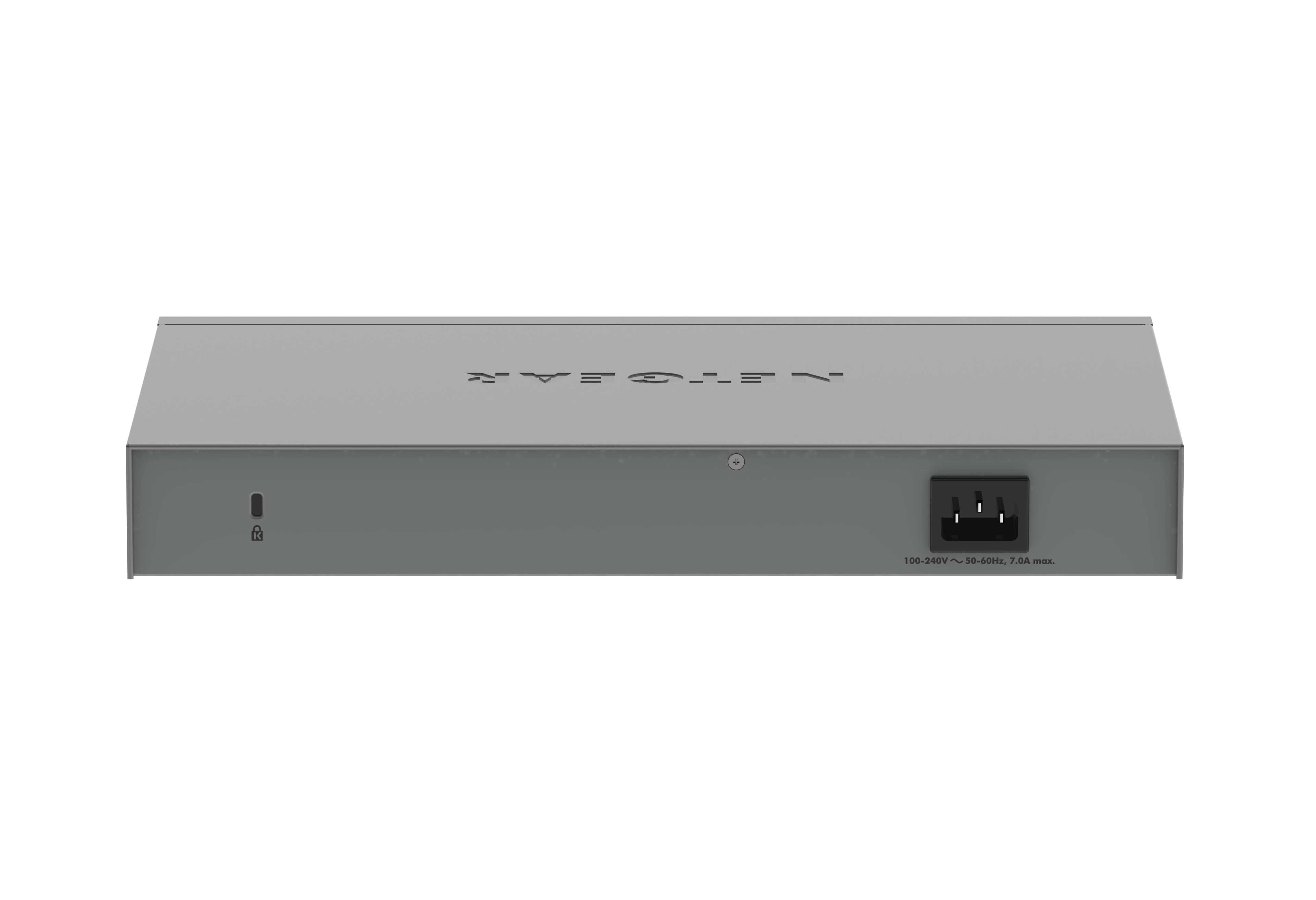

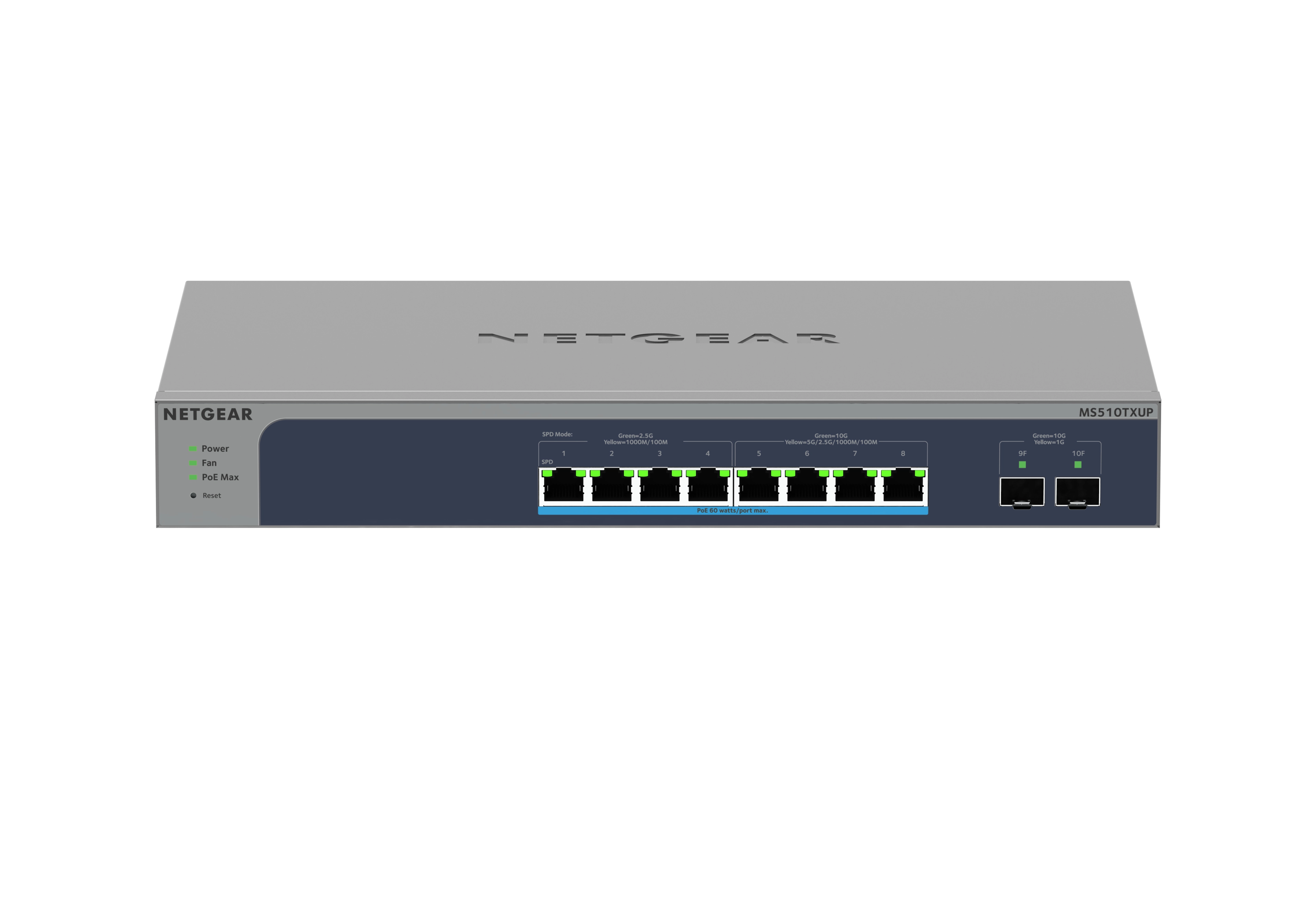

NETGEAR MS510TXM 10-ports

Best offer
AED
2 95800

Key Features

  • Switch layer: L2, L2/L3/L4
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
  • Multicast MAC address table: 512entries
  • DHCP features: DHCP client, DHCP server, DHCPv6 snooping
  • Latency (10 Gbps): 2.36µs
  • Number of queues: 8
  • Number of multicast groups filtered: 256
  • Port mirroring: Yes
  • Jumbo frames: 10000
  • Queue scheduling algorithms: WRR+SP
  • SFP+ module slots quantity: 2
  • Switching capacity: 140Gbit/s
  • MAC address table: 32000entries
  • Access Control List (ACL): Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
1059519 h
Internal memory
256 MB
Processor frequency
1000 MHz
Cloud-managed
✓
Quality of Service (QoS) support
✓
Password protection
✓
Noise level
25 dB
Rack mounting
✓
Product colour
Grey
Packet buffer memory
2 MB
Queue scheduling algorithms
WRR+SP
SFP+ module slots quantity
2
Switching capacity
140 Gbit/s
MAC address table
32000 entries
Access Control List (ACL)
✓
Access Control List (ACL) rules
164
Jumbo frames support
✓
Multicast support
✓
Switch layer
L2, L2/L3/L4

Packaging data

Rack rails
✓

Weight & dimensions

Weight
1420 g
Height
43 mm
Depth
206 mm
Width
328 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Number of multicast groups filtered
256

Power

Power connector
DC-in jack
AC input voltage
100 - 240 V
Power consumption (typical)
19.39 W
AC input frequency
50 - 60 Hz
Power consumption (max)
47 W
Power over Ethernet (PoE)
✗
Total Power over Ethernet (PoE) budget
295 W
Power source
AC

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Activity, Fan fail, Link, PoE, Power, Speed, Yes

Computer system

Built-in processor
✓

Packaging content

User guide
✓
Quick start guide
✓
Manual
✓
Cables included
AC
Power supply included
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
✓
Number of VLANs
256
Spanning tree protocol
✓
10G support
✓
Jumbo frames
10000
Port mirroring
✓

Ports & interfaces

Console port
RJ-45
USB 2.0 ports quantity
1
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity
8

Operational conditions

Operating altitude (imperial)
0 - 3000 m
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 95 %
Non-operating altitude
0 - 3000 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95 %
Heat dissipation
160.46 BTU/h

Technical details

Certification
47 CFR FCC, ACMA, ANSI C63.4:2014, AS/NZS CISPR 32:2013, BSMI, CE mark, CE/EN55032/24, CNS 13438, CSA safety, EN 55024:2010, EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC Part 15 class B, GB/T9254-2008, GB4943.1-2011, ICES-003:2016, KC, VCCI, VCCI-CISPR 32:2016, YD/T993-1998, commercial
Switch type
Managed

Memory

Flash memory
64 MB

Data transmission

Number of queues
8
Latency (10 Gbps)
2.36 µs

Security

Broadcast storm control
✓
DHCP features
DHCP client, DHCP server, DHCPv6 snooping

Logistics data

Harmonized System (HS) code
85176990

Multicast features

Multicast MAC address table
512 entries

Product Details

Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Managed Pro Switch Family for future-proof deployments Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables. That is why NETGEAR launched its new Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle. Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.
