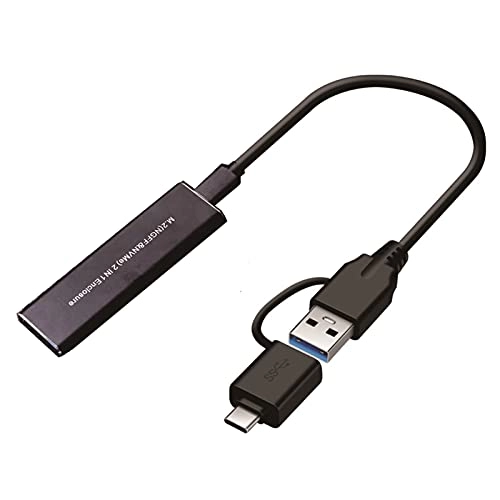

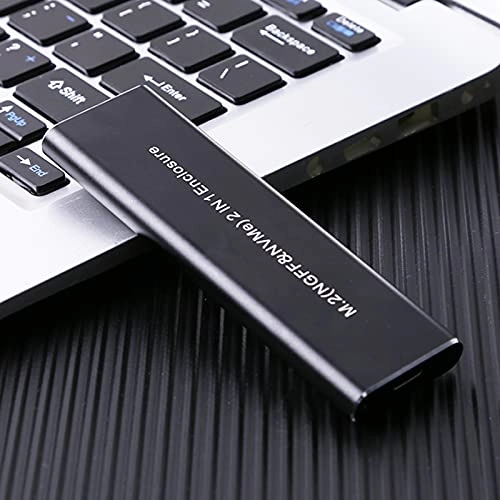

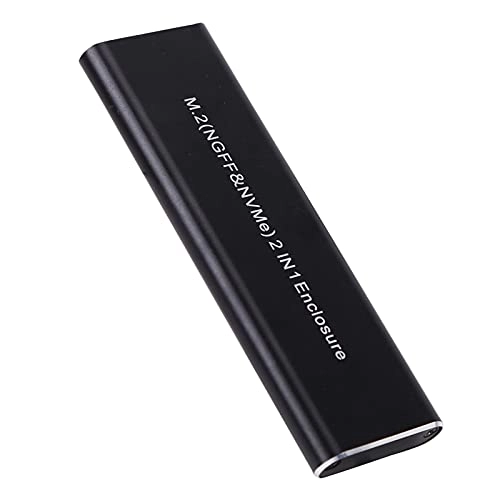

Nahamo772187882112 USB 3.1 Type-C SSD Enclosure

M.2 SATA NVME to USB 3.1 hard drive enclosure.

Specifications

• Material: Aluminum alloy
• Color: Black, Silver (optional)
• Main Control Chip: RTL9210B
• Output Interface: USB 3.1 TYPE-C
• Transmission Rate: 10Gbps

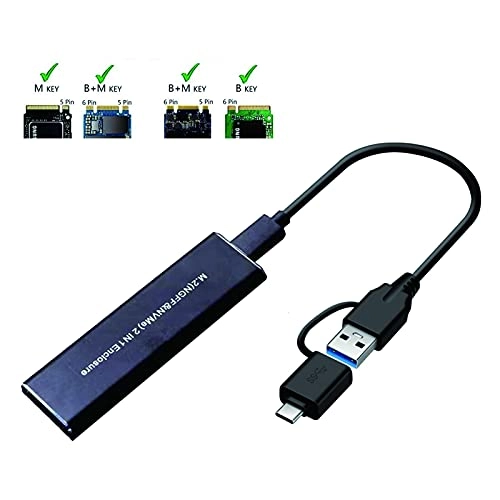

• Hard Disk Interface: M KEY, B&M KEY
• Support Protocol: Support NVME/NGFF Two Protocols
• Support M.2 Hard Disk Size: 2230/2242/2260/2280 Four Sizes
• Support Capacity: 2TB MAX
• Installation Method: Screw Fixed
• Support System: for Win/Linux/ Android
• Item Size: 120 * 30 * 8mm / 4.72 * 1.18 * 0.31in
• Item Weight: 37g / 1.31ounces
• Package Weight: 62g / 2.19ounces
• Package Size: 165 * 75 * 20mm / 6.5 * 2.95 * 0.79in

Installation Steps

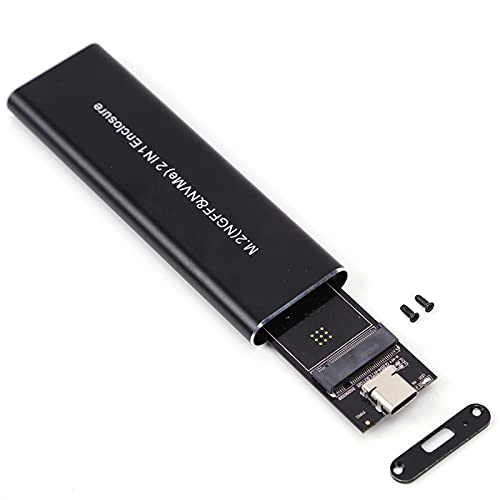

• Use a screwdriver to unscrew the top screws and take out the PCB d.
• Align the slots and install the SSD hard drive.
• Tighten the screw at the bottom of the hard drive to fix the hard drive.
• Put the installed hard disk into the hard disk box and close the top cover.

Packing List

1 * USB SSD Enclosure

1 * Data Cable
