MXMMUB Z10002M

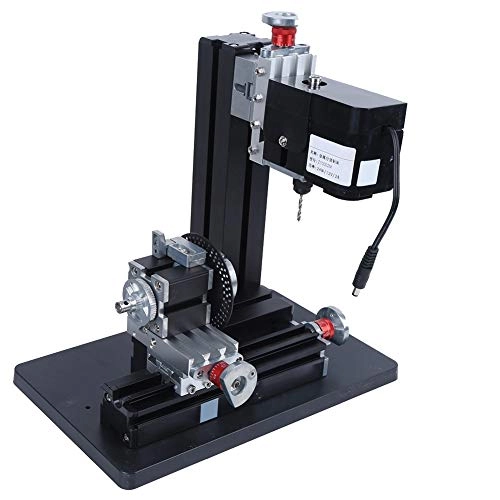

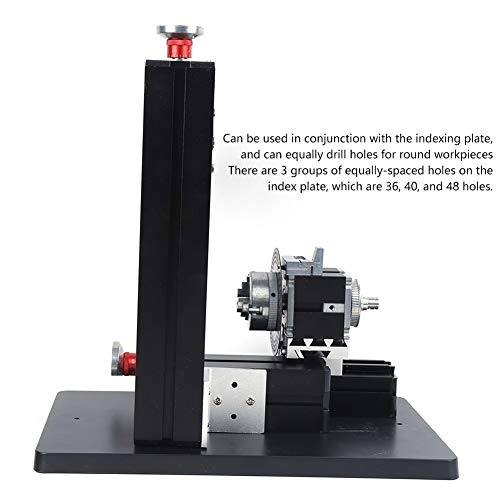

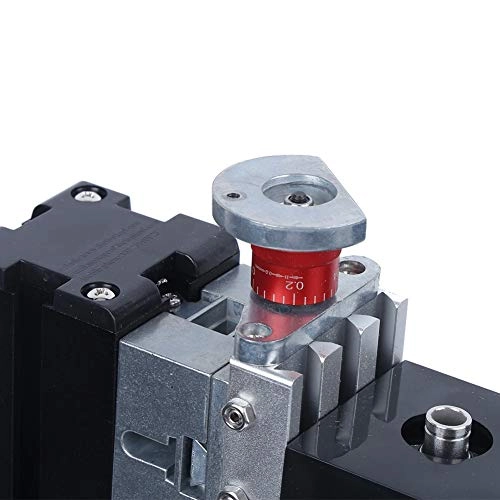

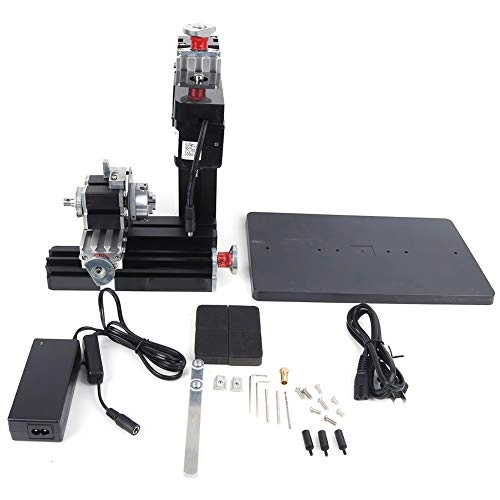

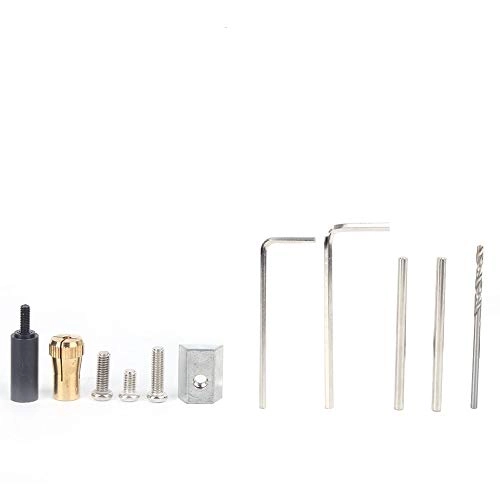

Specification: Item Type: Metal Dividing Drill Machine The main parts of the machine tool: such as the spindle box, the rocker arm of the drilling machine, the long machine base, the short machine base, the size slider, the motor fan blade, the connecting block, the indexing locator, the gear, etc. are all made of metal materials Function: 1. With the use of indexing plate, it is possible to drill holes in equal parts. 2. There are three groups of small holes equally distributed on the index plate, which are 36, 40 and 48 small holes. The index holes can be selected according to actual needs. Technical Parameters: 1. Motor speed: 20,000 rpm. 2. Processing materials: wood, engineering plastics, soft metals (gold, silver, copper, aluminum, etc.). 3. The maximum diameter of the 3-jaw chuck can hold the workpiece is 50mm. 4. The transformer has overcurrent, overvoltage and overheat protection. 5. The hand wheel has a 0.02mm accuracy graduation line, which increases the accuracy of the machine tool processing workpiece 6. Accuracy 0.07mm Package List: 1 x Drilling Machine 1 x Iron Iron 1 x Baseplate 1 x Cushion 1 x Power Cord 1 Pack Accessories
