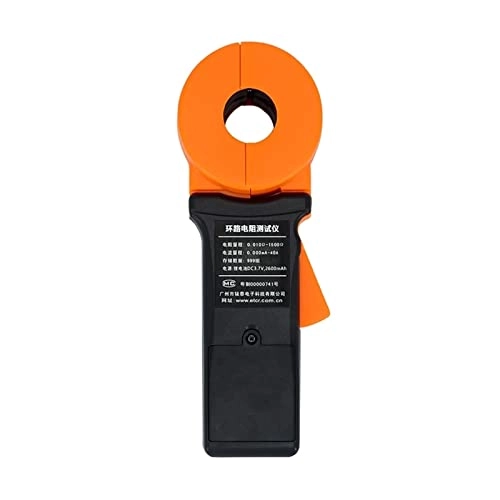

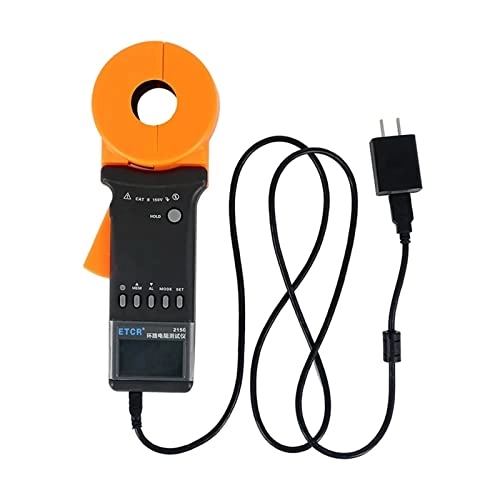

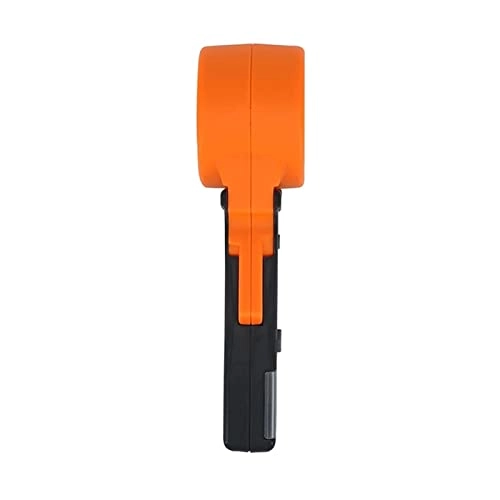

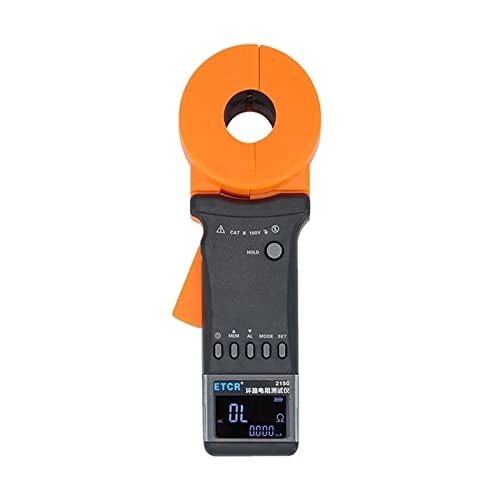

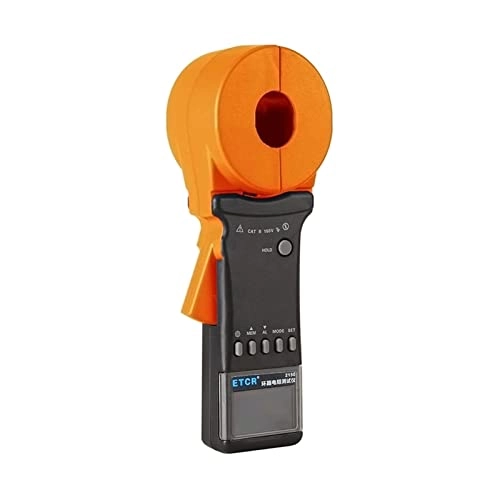

MKHFP ETCR2150 - Loop Resistance Tester 0.001MA 1500OHM

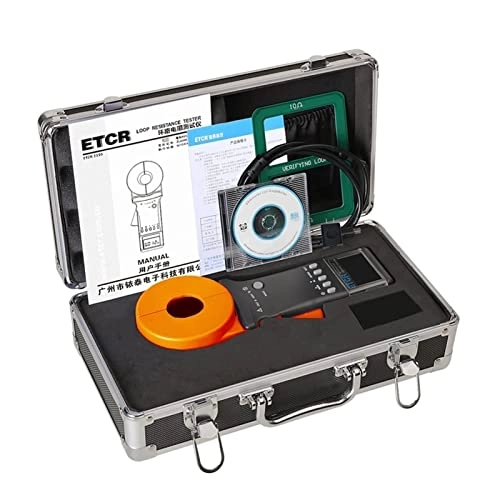

Function Loop resistance measurement, loop leakage current measurement Power Supply 3. 7vdc (Rechargeable Lithium Battery 2600mAh) Resistance Range 0.010-1500 Resistance Resolution 0.001 Data Memory 999 sets Alarm threshold adjustment range Resistance: 1-199 Alarm sound and light "Beep-Beep-Beep-" Alarm sound, press AL button to turn on and off; Lcd alarm indication to intermit Working temperature and humidity -2 0C-55C; 20%RH-90%RH LCD Screen Screen L × W: 47 mm × 28.5 mm Clamp Size 1.26 inches (32mm) Clamp Opening Extension 1.26 inches (32mm) Tester Weight 1120g (with batteries) Clamping Dimension L × W × T: 26 0 mm × 90 mm × 66 mm Protection level Dual insulation Structural Feature clamp Changing Automatic switching Single measurement time 0.5 seconds Full memory indication Memorandum symbol blinks when all 999 sets memory is full Rs232 Interface (optional) The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files Accessories Meter: 1 piece, Test Ring: 1 Piece, Meter Suitcase: 1 Piece, Batteries: 4 PCS (LR6)
