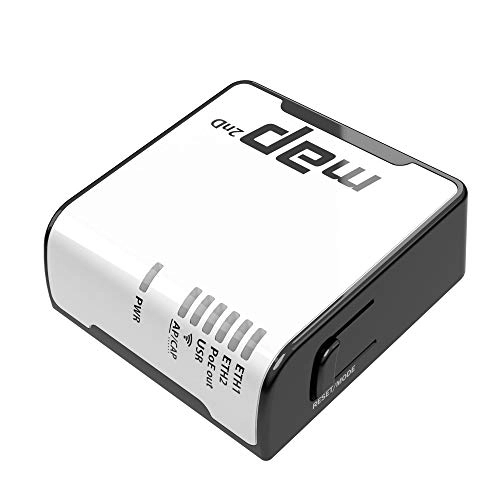

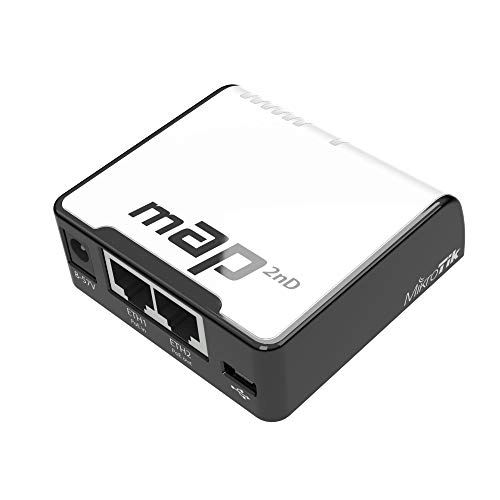

Mikrotik RBmAP2nD

Model: RBmAP2nD Mikrotik Wireless Dual-Chain 2.4GHz Micro Access Point The mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. Technical Description Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650 MHz Dimensions 68x68x19mm License level 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH Tested ambient temperature -20°C to 70°C MicroUSB input Voltage 5-5 V PoE in 802.3af/at PoE in input Voltage 12-57 V PoE out Passive PoE PoE-out ports Ether2 Number of DC inputs 3 (PoE-IN, DC jack, MicroUSB) DC jack input Voltage 8-57 V Max out per port output (input <30 V) 0.5 A Max total out (A) 0.5 A Max power consumption 5 W Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 1.2 Wireless 2.4 GHz chip model QCA9531 Wireless 2.4 GHz generation Wi-Fi 4 10/100 Ethernet ports 2 Number of USB ports 1 USB Power Reset Yes USB slot type microUSB type AB Max USB current (A) 1 PCB temperature monitor Yes Voltage Monitor Yes
