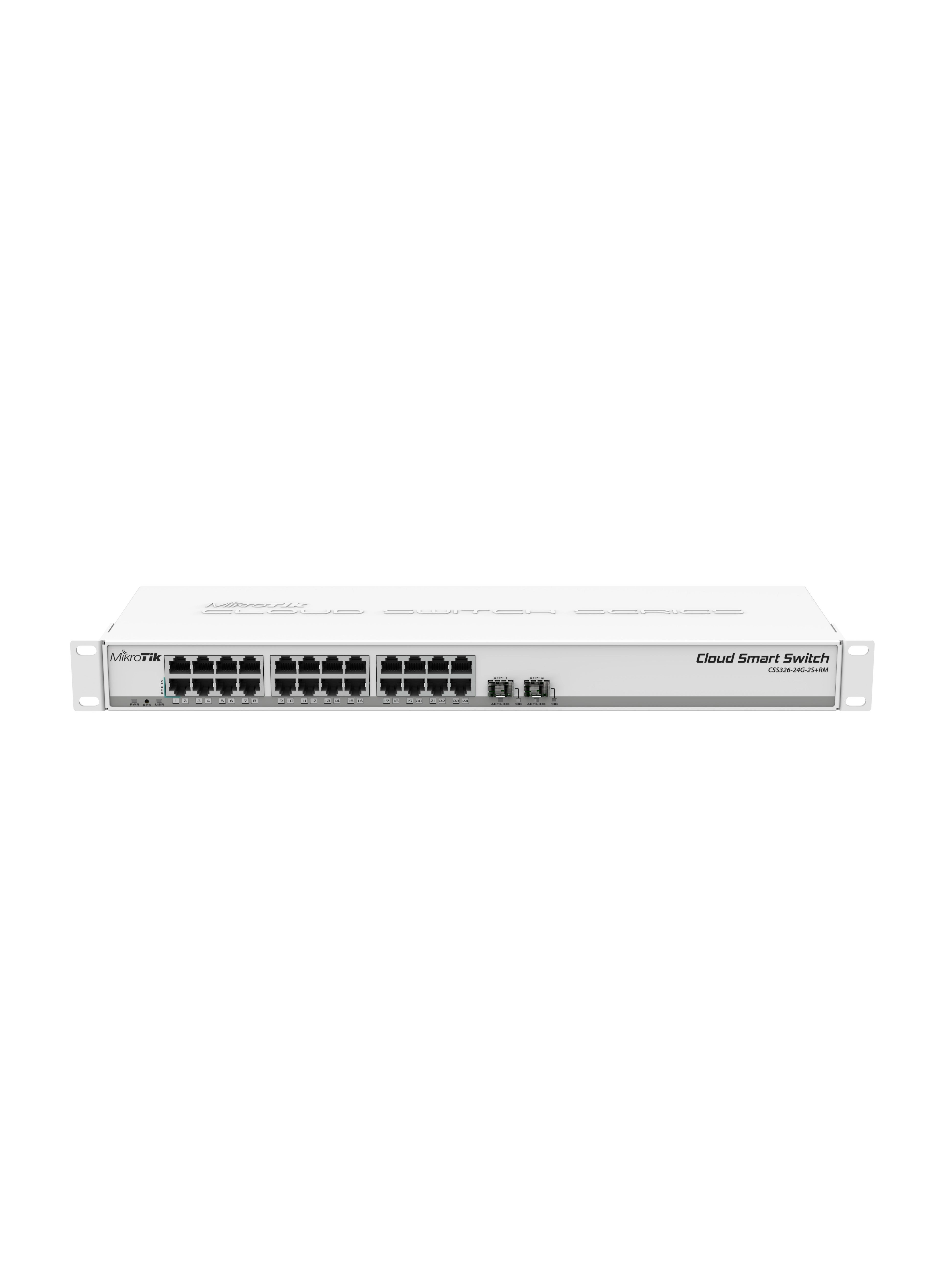

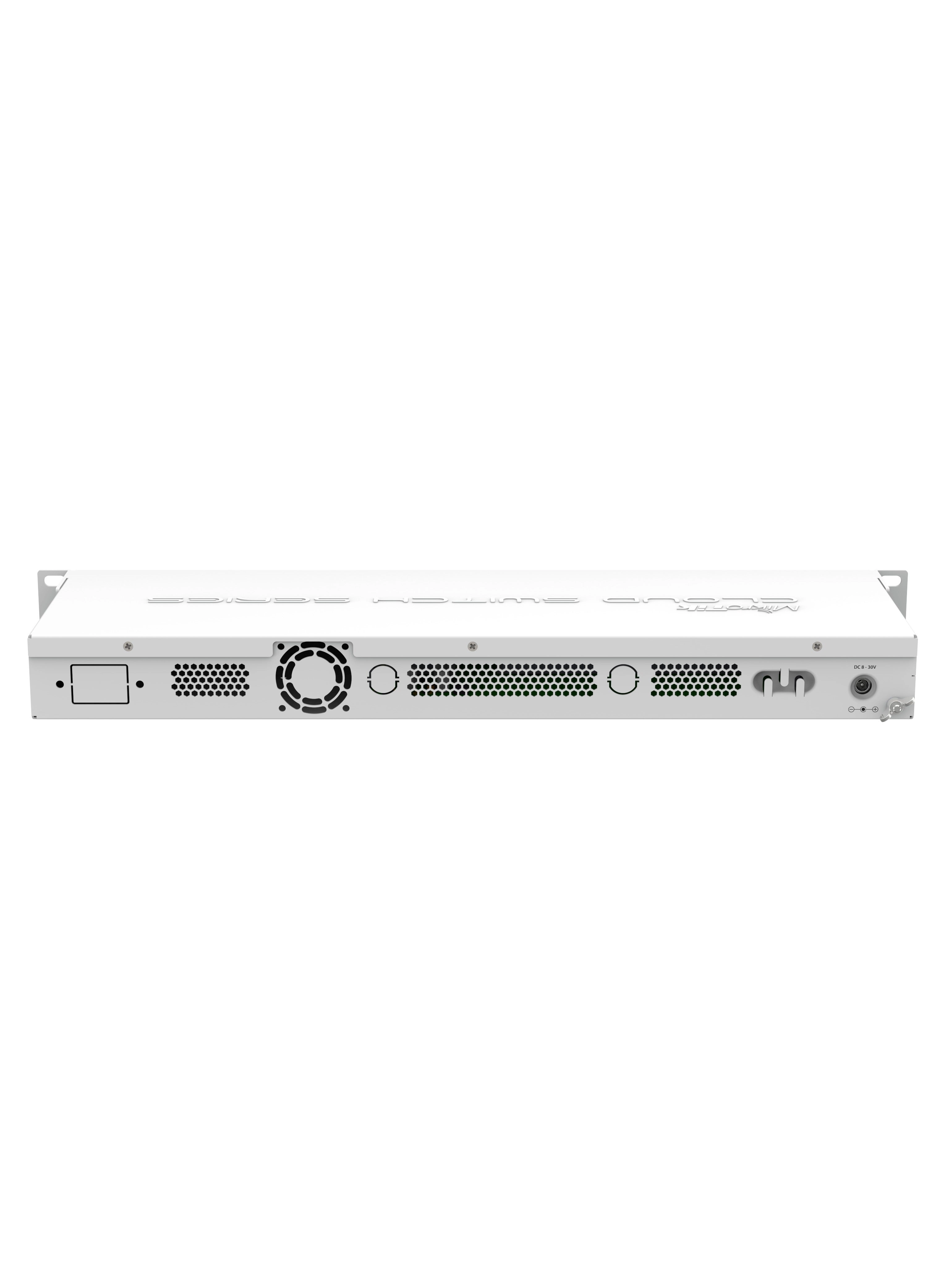

Mikrotik CSS326-24G-2S+RM 26-Ports

Name: Mikrotik CSS326-24G-2S+RM 26-Ports
Brand: Mikrotik
SKU: 345442
Availability: InStock

Best offer

AED

501⁰⁰

Key Features

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Port mirroring: Yes
SFP+ module slots quantity: 2
Access Control List (ACL): Yes
Number of power supply units: 1
Form factor: 1U
Spanning tree protocol: Yes
10G support: Yes
Broadcast storm control: Yes
Product colour: White

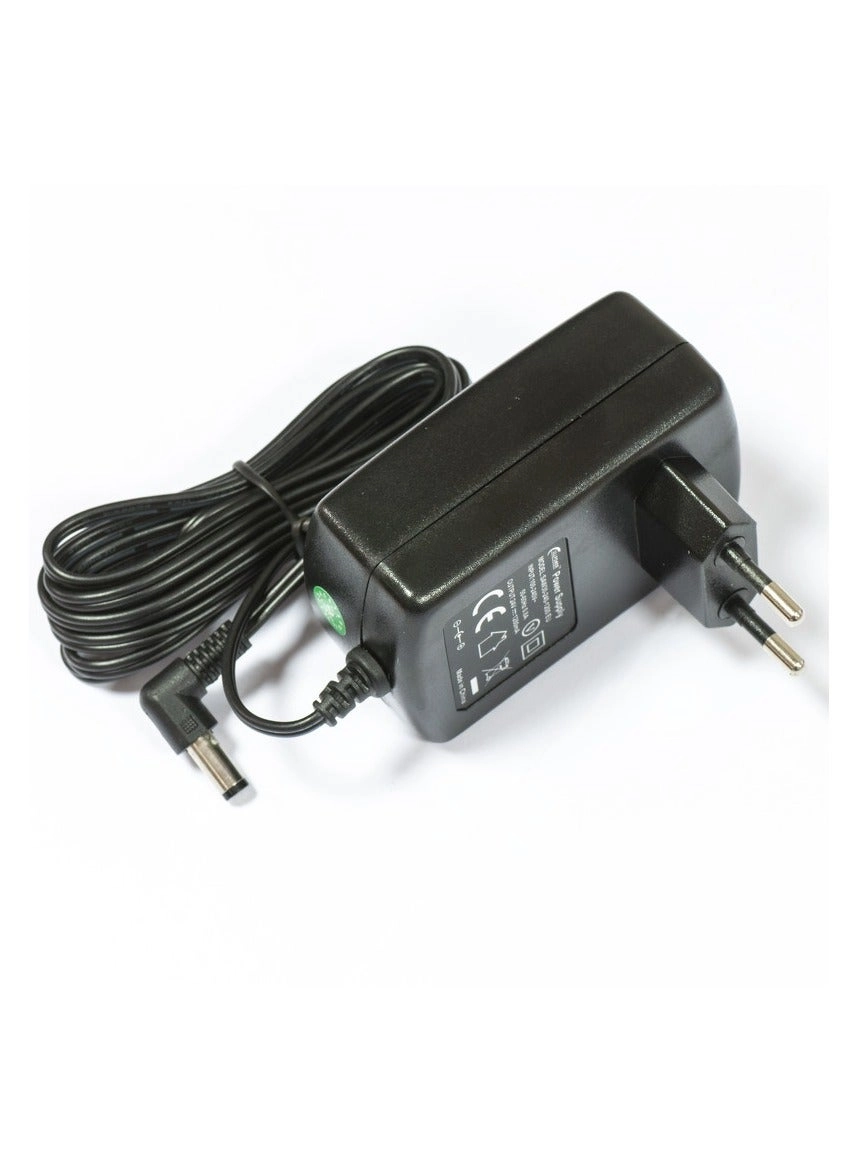

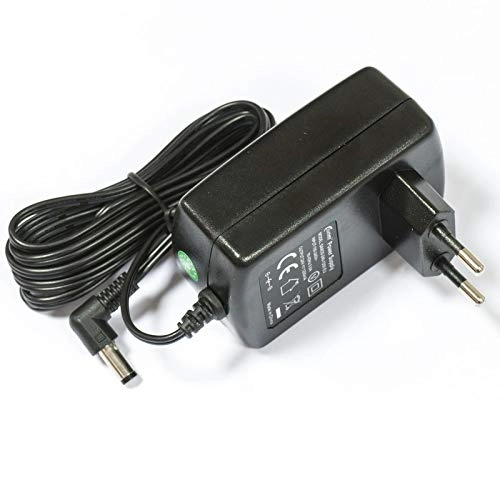

AC adapter included: Yes

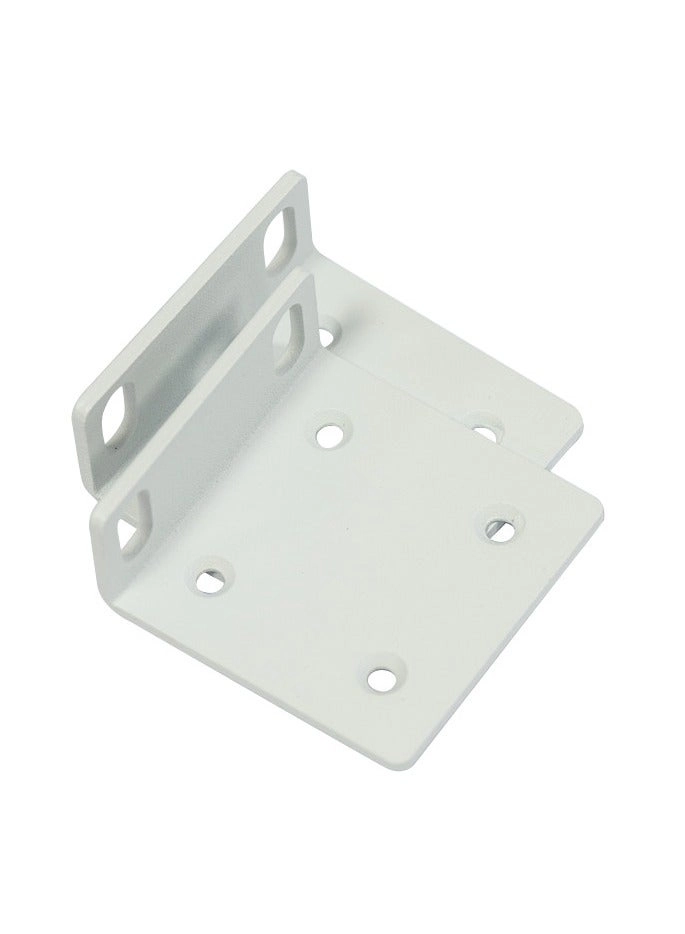

Mounting bracket(s) included: Yes
Flash memory: 2MB
Number of VLANs: 4000

Specifications

Features

Internal memory

2 MB

Security algorithms

SNMP

Rack mounting

✓

Product colour

White

SFP+ module slots quantity

Access Control List (ACL)

✓

Weight & dimensions

Height

44 mm

Depth

144 mm

Width

440 mm

Management features

Web-based management

✓

Power

Power connector

DC-in jack

Power consumption (typical)

19 W

Power over Ethernet (PoE)

✓

Number of power supply units

Design

Reset button

✓

Form factor

Computer system

Built-in processor

✓

Packaging content

Manual

✓

Power supply included

✓

AC adapter included

✓

Mounting bracket(s) included

✓

Network

Networking standards

IEEE 802.1Q

VLAN support

✓

Number of VLANs

4000

Spanning tree protocol

✓

10G support

✓

Port mirroring

✓

Ports & interfaces

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Technical details

Switch type

Managed

Memory

Flash memory

2 MB

Security

MAC address filtering

✓

Broadcast storm control

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features. The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
