Midas DL444 Wired Microphone

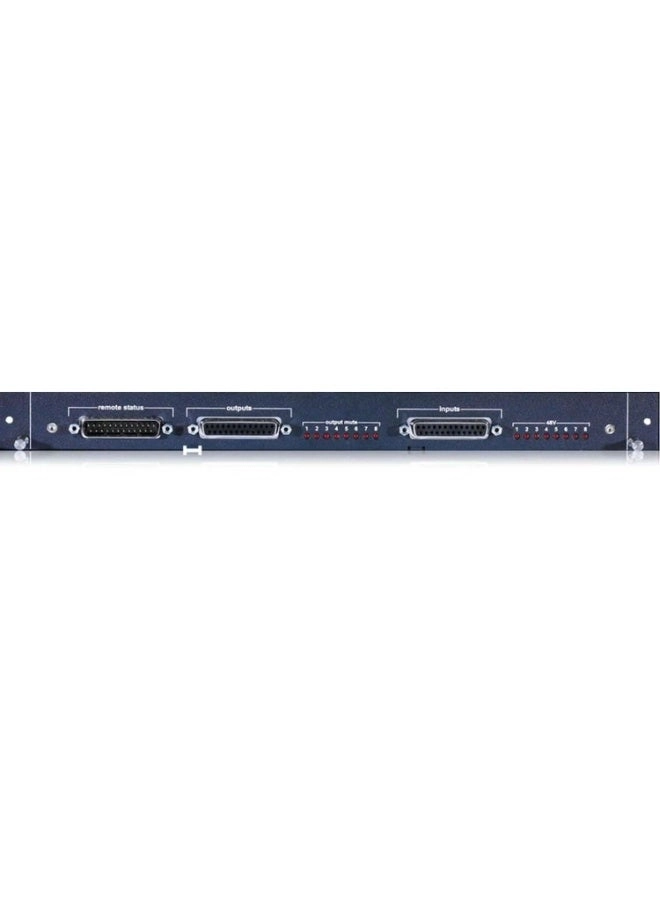

KEY FEATURES 8 inputs and 8 outputs in a single card form factor 25-pin D-sub connectors for inputs, outputs, remote +48 V and check LEDs Mic/line inputs with remote control MIDAS mic preamps with +48 V and check remote indicators Ultra-low latency 24-bit 96 kHz A-D and D-A convertors Outputs are balanced with high-current drive capability for long cable runs DESCRIPTION The DL444 25-Pin D-Sub Connector Card from Midas features two 25-pin female D-sub connectors as well as a 25-pin male D-sub connector for inputs, outputs, remote +48 V and check LED indicator lights. The outputs are balanced with high-current drive capability for long cable runs and the mic/line inputs feature remote control microphone preamps. The card also features ultra-low latency 24-bit 96 kHz A-D and D-A converters. SPECIFICATIONS Compatibility Compatible with the DL451, DL351, PRO3, PRO6, and PRO9 surfaces
