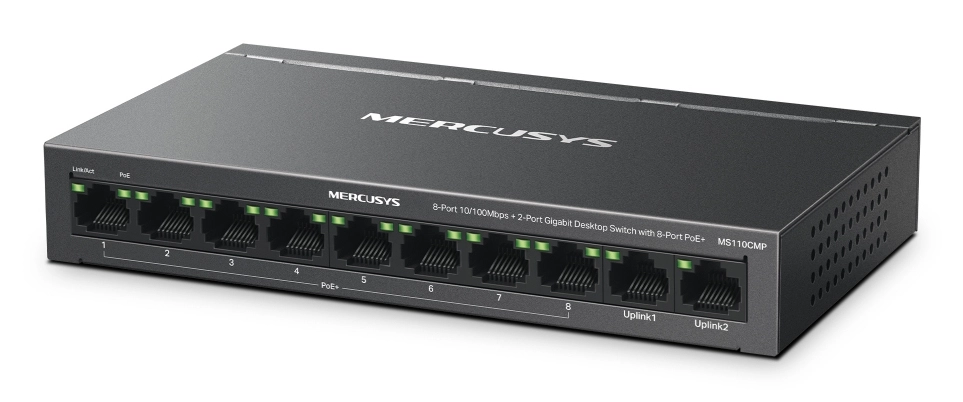

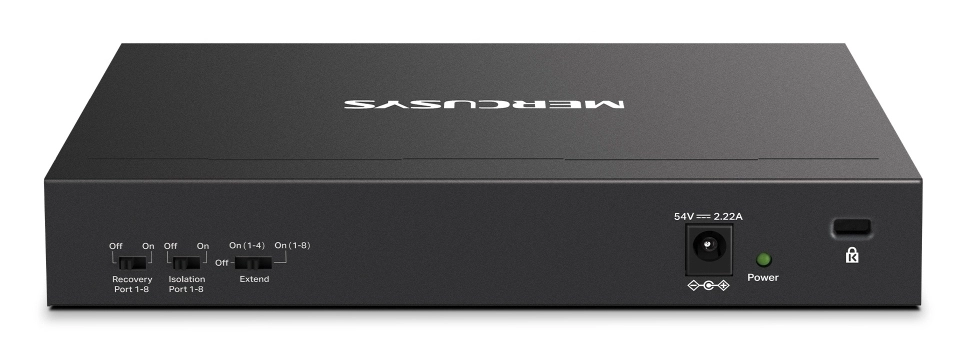

Mercusys MS110CMP 10-ports

Name: Mercusys MS110CMP 10-ports
Brand: Mercusys
SKU: 992445
Availability: InStock

Best offer

AED

89⁰⁰

AED

129⁰⁰

-31%

Key Features

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power over Ethernet plus (PoE+) ports quantity: 8
Half duplex: Yes
Jumbo frames: 2
Wall mountable: Yes
Switching capacity: 5.6Gbit/s
Full duplex: Yes
MAC address table: 2000entries
Jumbo frames support: Yes
Power over Ethernet (PoE) type supported: PoE+
Power source: DC/PoE
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Transmission distance (max): 0.25km

Specifications

Features

Rack mounting

✗

Stackable

✗

Product colour

Black

Wall mountable

✓

Switching capacity

5.60 Gbit/s

Full duplex

✓

MAC address table

2000 entries

Jumbo frames support

✓

Weight & dimensions

Height

27 mm

Depth

98 mm

Width

171 mm

Power

AC input voltage

220 V

Power consumption (typical)

3.79 W

DC input voltage

54 V

AC input frequency

50 Hz

Input current

2.2 A

Power consumption (max)

130.49 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

115 W

Power over Ethernet (PoE) type supported

PoE+

Power source

DC/PoE

Design

Housing material

Metal

Packaging content

Quick start guide

✓

Cables included

Power supply included

✓

Network

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Auto MDI/MDI-X

✓

Auto-negotiation

✓

Transmission distance (max)

0.25 km

Ethernet LAN data rates

10G support

✗

Flow control support

✓

Jumbo frames

Half duplex

✓

Ports & interfaces

Power over Ethernet plus (PoE+) ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating relative humidity (H-H)

5 - 90 %

Storage relative humidity (H-H)

10 - 95 %

Heat dissipation

444.97 BTU/h

Product Details

Long-Range up to 250 m with Extend Mode Extend Mode increases PoE transmission distance to 250 m. MS110CMP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas. Traffic Separation With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110CMP provides 2× uplink ports when turning on the isolation mode. PoE Auto Recovery The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically. Plug and Play MS110CMP offers auto-negotiation(10/100M) and automated MDl/MDIX. There is no additional configuration needed. lt is simple to use, saving time and effort. Durable and Silent MS110CMP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life.
