Lenovo 40AF0135AU

Name: Lenovo 40AF0135AU
Brand: Lenovo
SKU: 104415
Availability: InStock

Best offer

AED

725⁰⁰

AED

899⁰⁰

-19%

Key Features

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Host interface: Thunderbolt 3
Charging function: Yes
Maximum digital resolution: 3840 x 2160pixels
Ethernet LAN data rates: 10, 100Mbit/s
Ethernet LAN: Yes
DisplayPort version: 1.2
DisplayPorts quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
Combo headphone/mic port: Yes
Number of displays supported: 2

Specifications

Features

Compatibility

13 Gen 3 Windows, 20HA), 20HC), 20JX), 20K0), 20LA), 20LC), E470, E480, E580, L380, L380 Yoga, L470, L480, L580, Lenovo Tablet 10, Miix 520-12IKB, P52s, P580p, T460, T470, T470s, T480, T480s, T570, T580, ThinkPad 25, ThinkPad P52s (20LB, ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad P51s (20HB, Thinkpad P51s (20JY, Thinkpad T570 (20H9, Thinkpad T570 (20JW, Thinkpad T580 (20L9, X1 Carbon Gen 5, X1 Carbon Gen 6, X1 Tablet Gen 2, X1 Tablet Gen 3, X1 Yoga Gen 2, X1 Yoga Gen 3, X260, X270, X280

Brand compatibility

Lenovo

Plug and Play

✓

Card reader integrated

✗

Connectivity technology

Docking, Wired

Product colour

Black

Host interface

Thunderbolt 3

Charging function

✓

Maximum digital resolution

3840 x 2160 pixels

Packaging data

Package weight

1950 g

Package height

86 mm

Package depth

422 mm

Package width

200 mm

Weight & dimensions

Weight

810 g

Height

54.10 mm

Depth

378 mm

Width

159 mm

Power

Power supply type

External

Power plug type

Type C

AC input voltage

100 - 240 V

Power supply

135 W

AC input frequency

50 - 60 Hz

Power source type

System requirements

Windows operating systems supported

Windows 10, Windows 7

Other features

Cable lock slot type

Kensington

Design

LED indicators

Power

Cable lock slot

✓

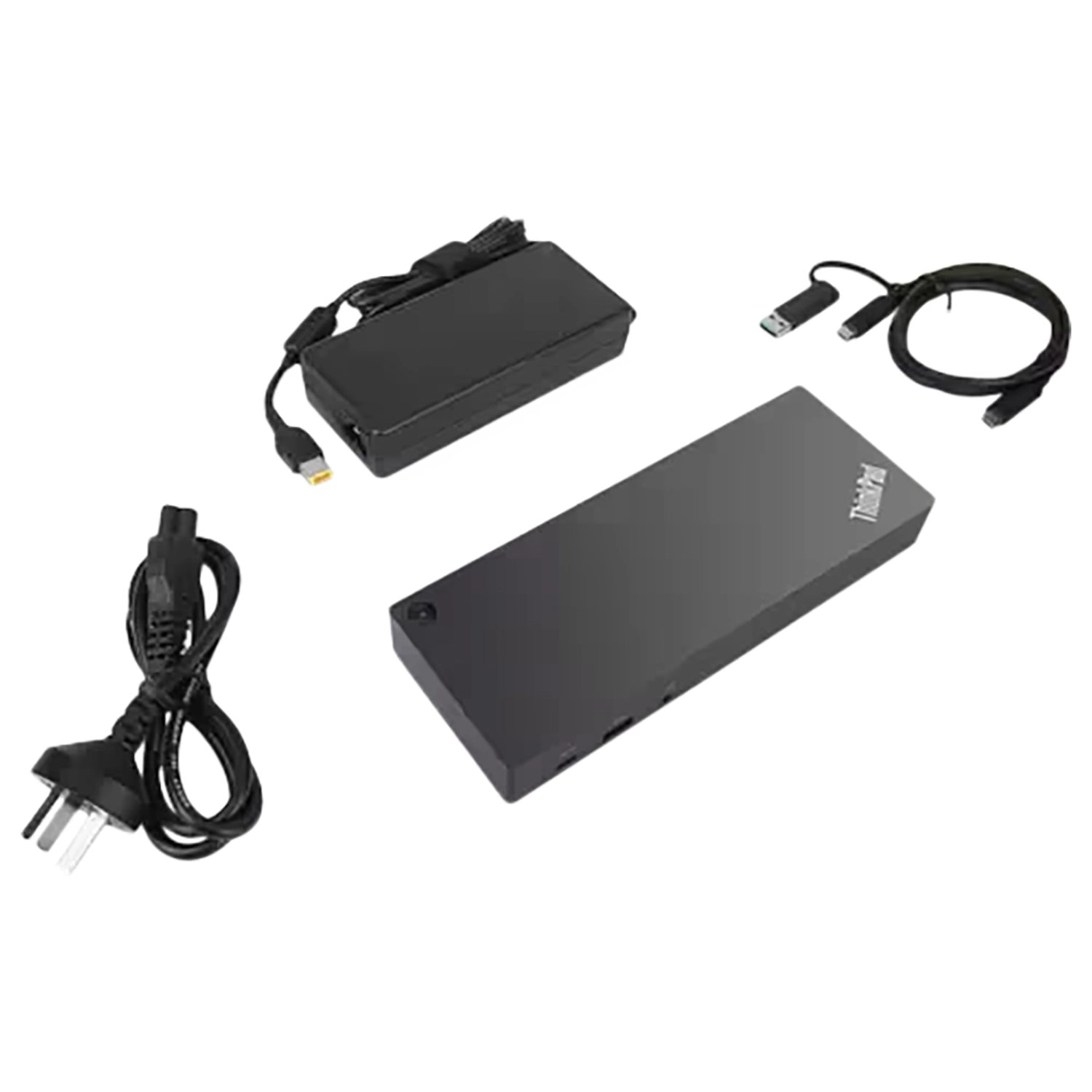

Packaging content

Manual

✓

Cables included

AC, Thunderbolt

AC adapter included

✓

Network

Ethernet LAN data rates

10, 100

Ethernet LAN

✓

Ports & interfaces

DC-in jack

✓

Interface

Thunderbolt 3

Ethernet LAN (RJ-45) ports

Microphone in

✗

Headphone connectivity

3.5 mm

VGA (D-Sub) ports quantity

DisplayPort version

1.2

DisplayPorts quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

HDMI ports quantity

USB 2.0 ports quantity

Combo headphone/mic port

✓

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

Mounting

Number of displays supported

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Operating relative humidity (H-H)

8 - 95 %

Technical details

Certification

BSMI, CB, CE, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Quality, TUV Mark, Ukraine DoC, VCCI, cULus

Video

HD type

4K Ultra HD

Logistics data

Harmonized System (HS) code

84733020

Product Details

Lenovo™ ThinkPad® Pro Docking Station (40AH) provides the best docking experience for Large Enterprise ThinkPad customers. The innovative side-connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessoriesand external displays, while rapid charging support and a mirrored power button make going mobile even easier.. Designed for large enterprise environments, ThinkPad Docking Stations support PXE boot, Wake-on-LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly crafted and extensively tested, ThinkPad Docking Stations provide a seamless docking experience for professionals.

Files

Setup Guide

mmo_68273410_1553508978_1179_31417.pdf

PDF• 767.2 KB

User manual

mmo_65590375_1565158943_9234_13677.pdf

PDF• 1.3 MB
