klarako KY-023

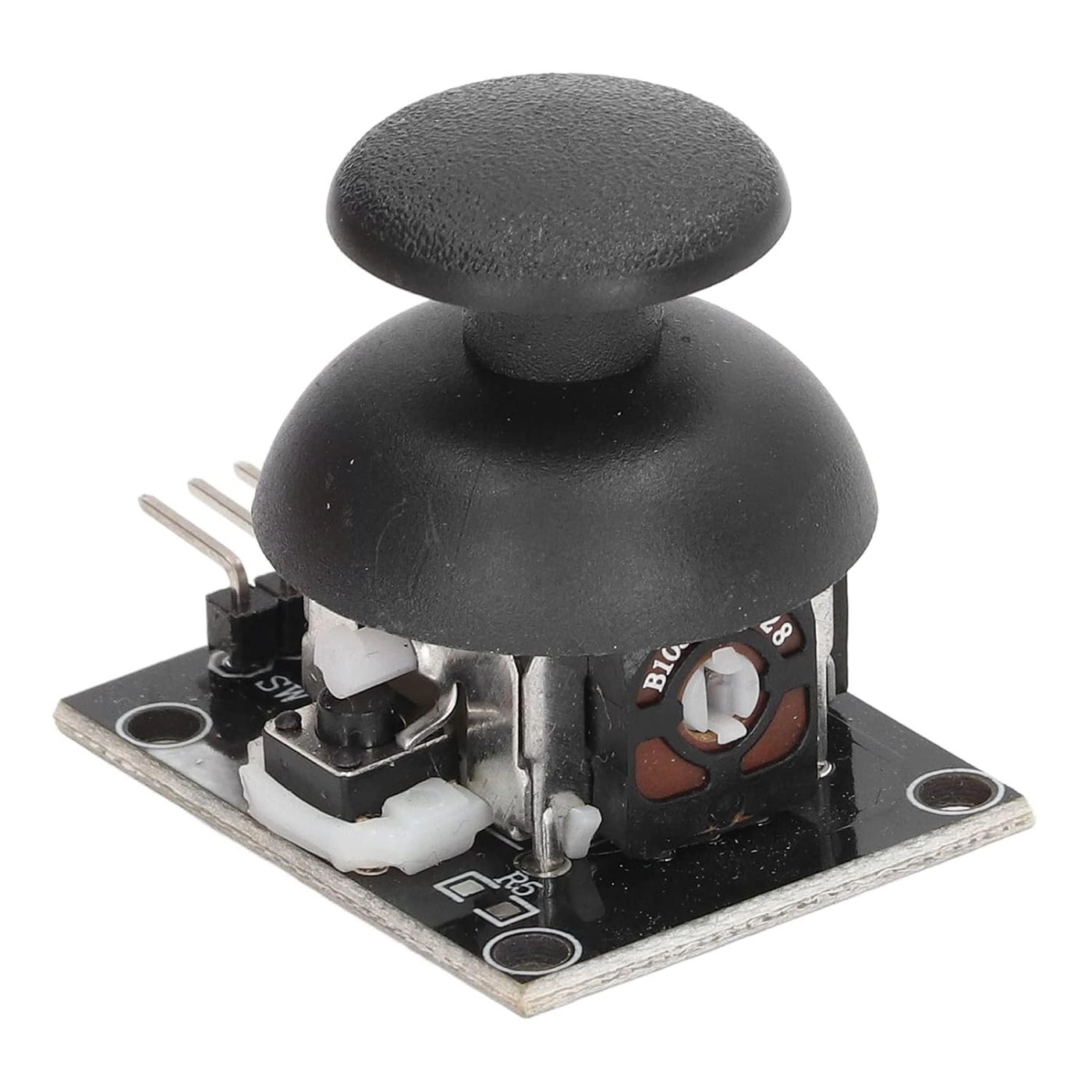

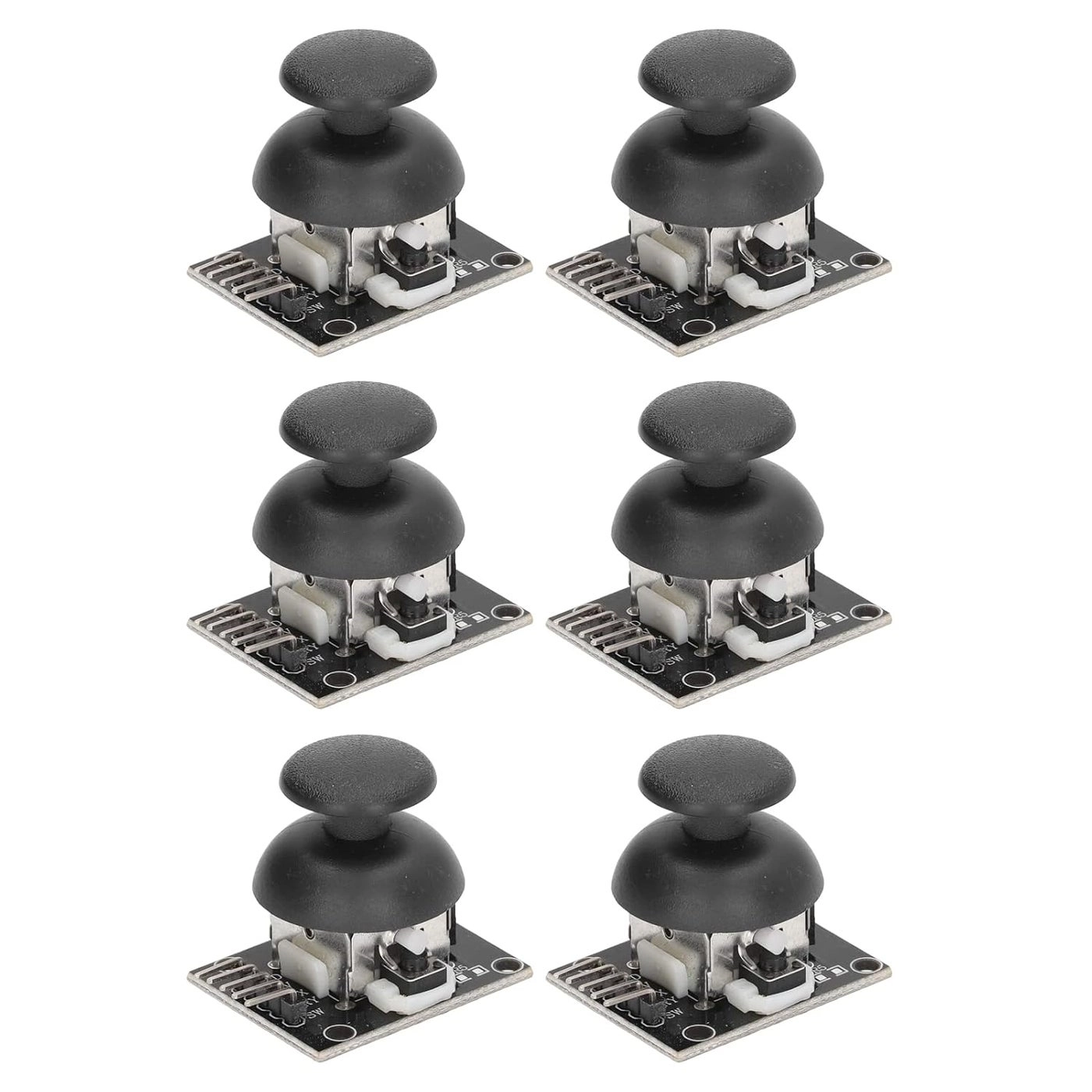

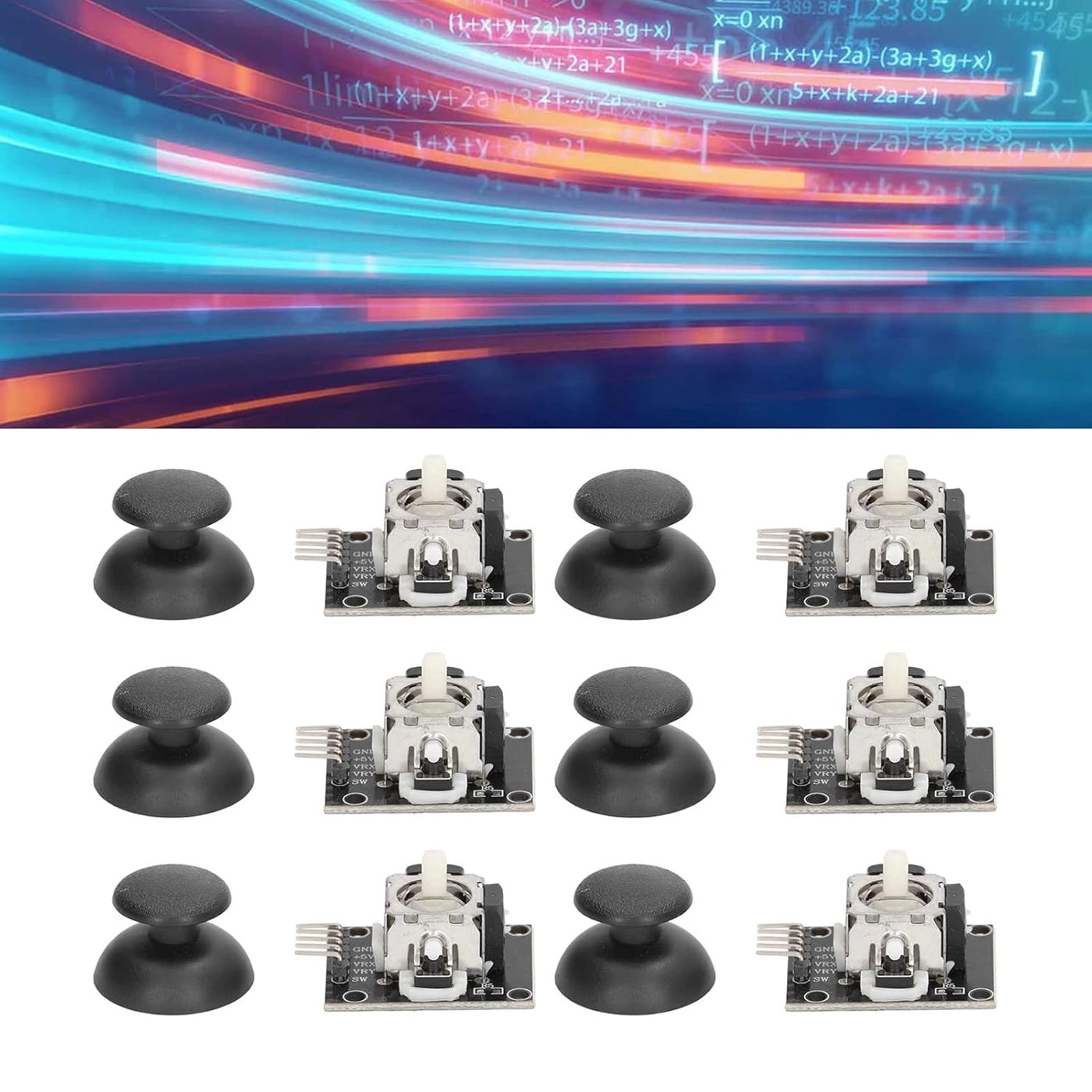

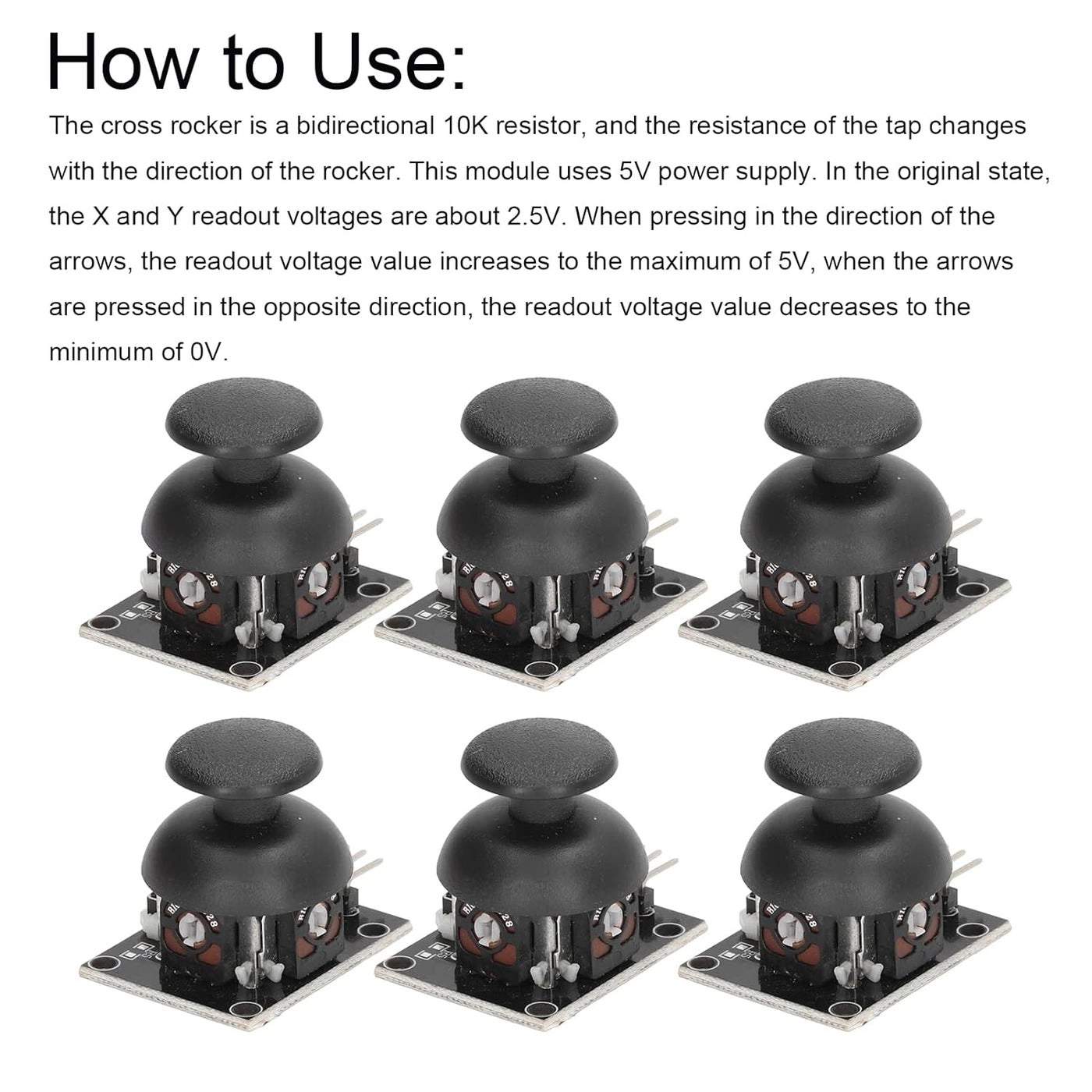

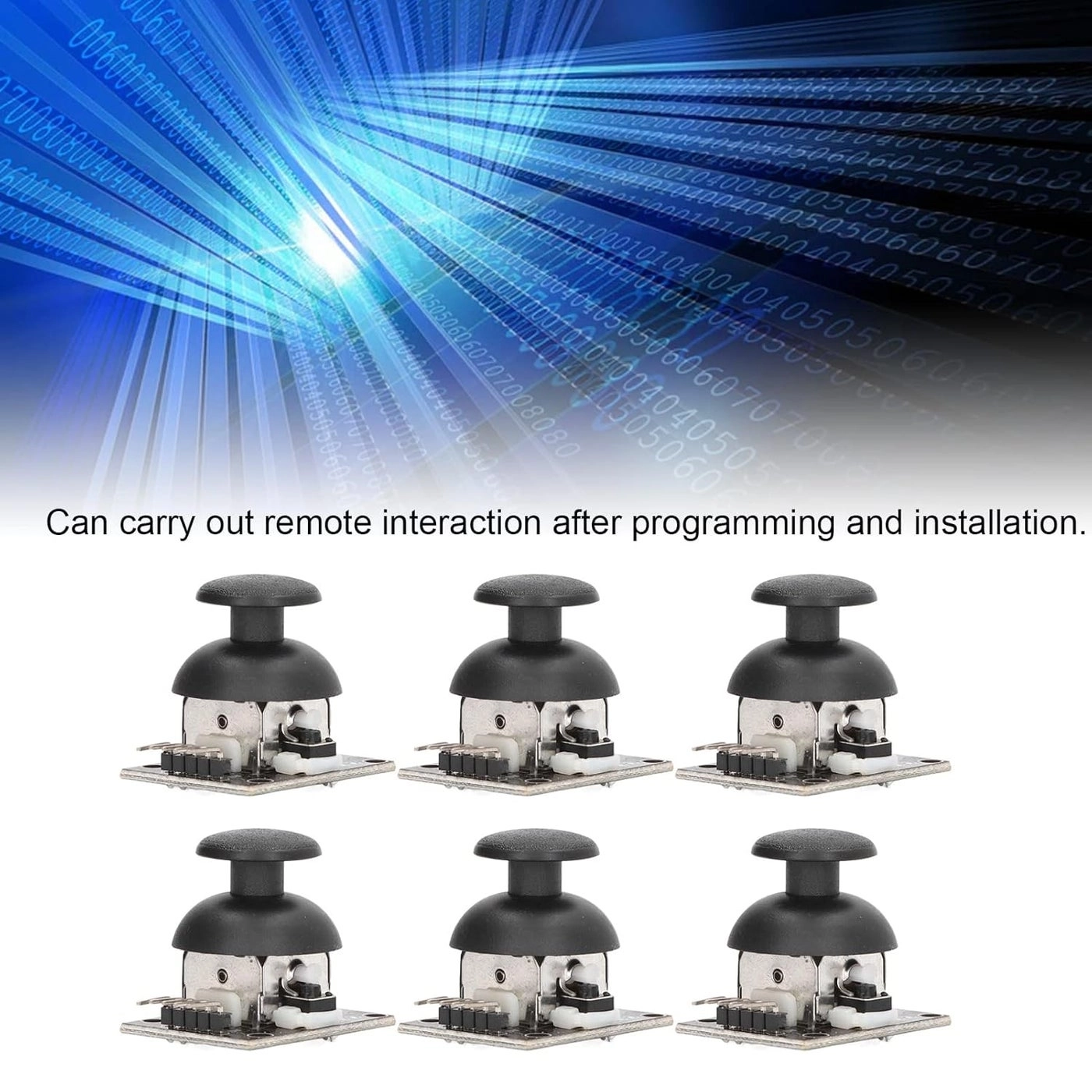

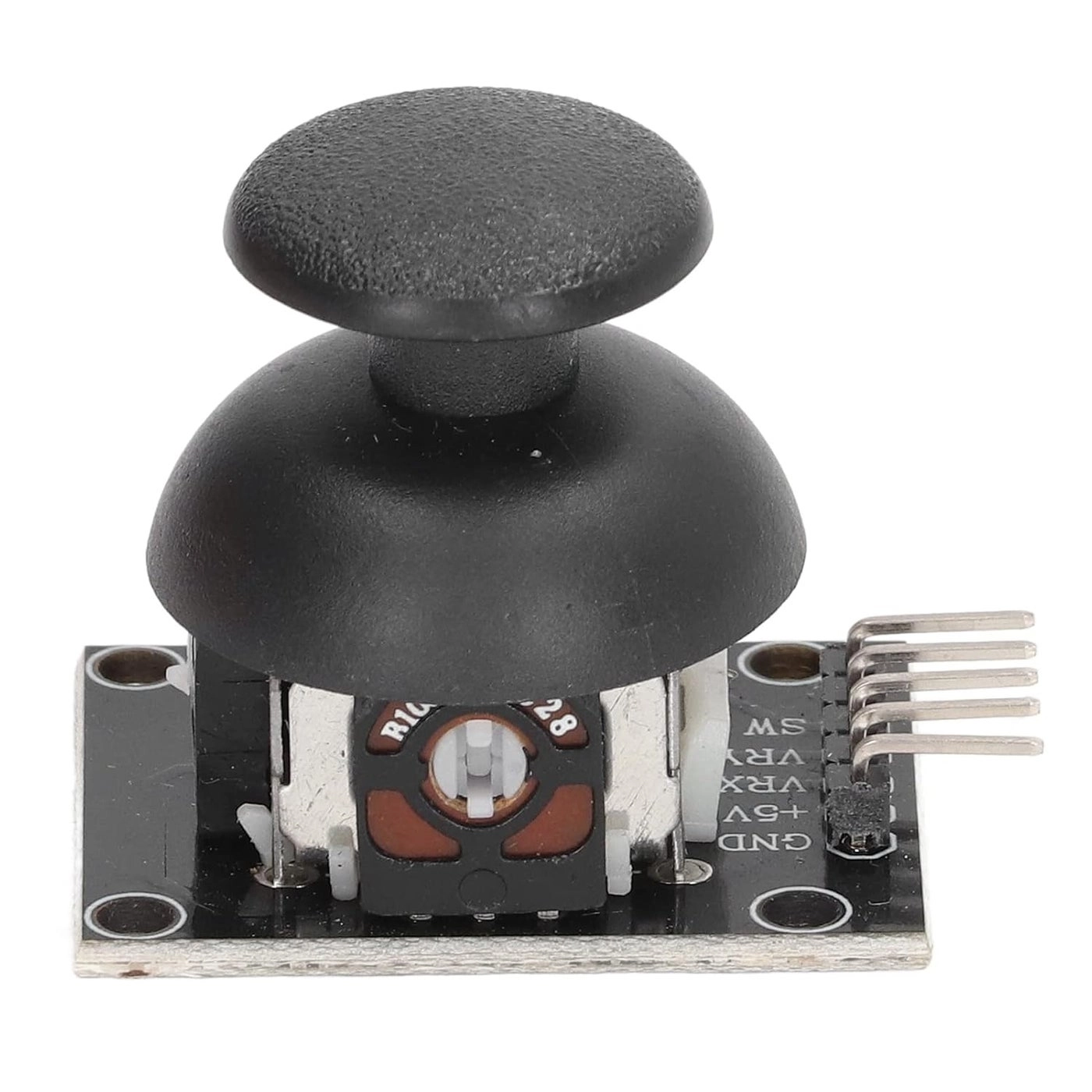

Specification: Item Type: Joystick Sensor Material: ABS + Printed Circuit Board Function: The joystick module can be programmed through the controller, and the sensor expansion board can be inserted to complete remote interactive work. Colour: Black Model: KY-023 Input Voltage Range: DC 3.3V-5V Output : KY-023 module is equipped with 2 analog output and 1 digital output interface. The output values respectively correspond to the (X, Y) dual axes offset, and the type is analog; the button indicates whether the user presses the Z axes. Its type is digital exchange. How to Use: The rocker is a bidirectional 10K resistor, and the resistance of the tap changes with the direction of the rocker. This module uses 5V power supply. In the original state, the X and Y readout voltages are about 2.5V. When pressing in the direction of the arrows, the readout voltage value increases to the maximum of 5V, when the arrows are pressed in the opposite direction, the readout voltage value decreases to the minimum of 0V. Package List: 6 x Joystick Sensor Module 6 x Button
