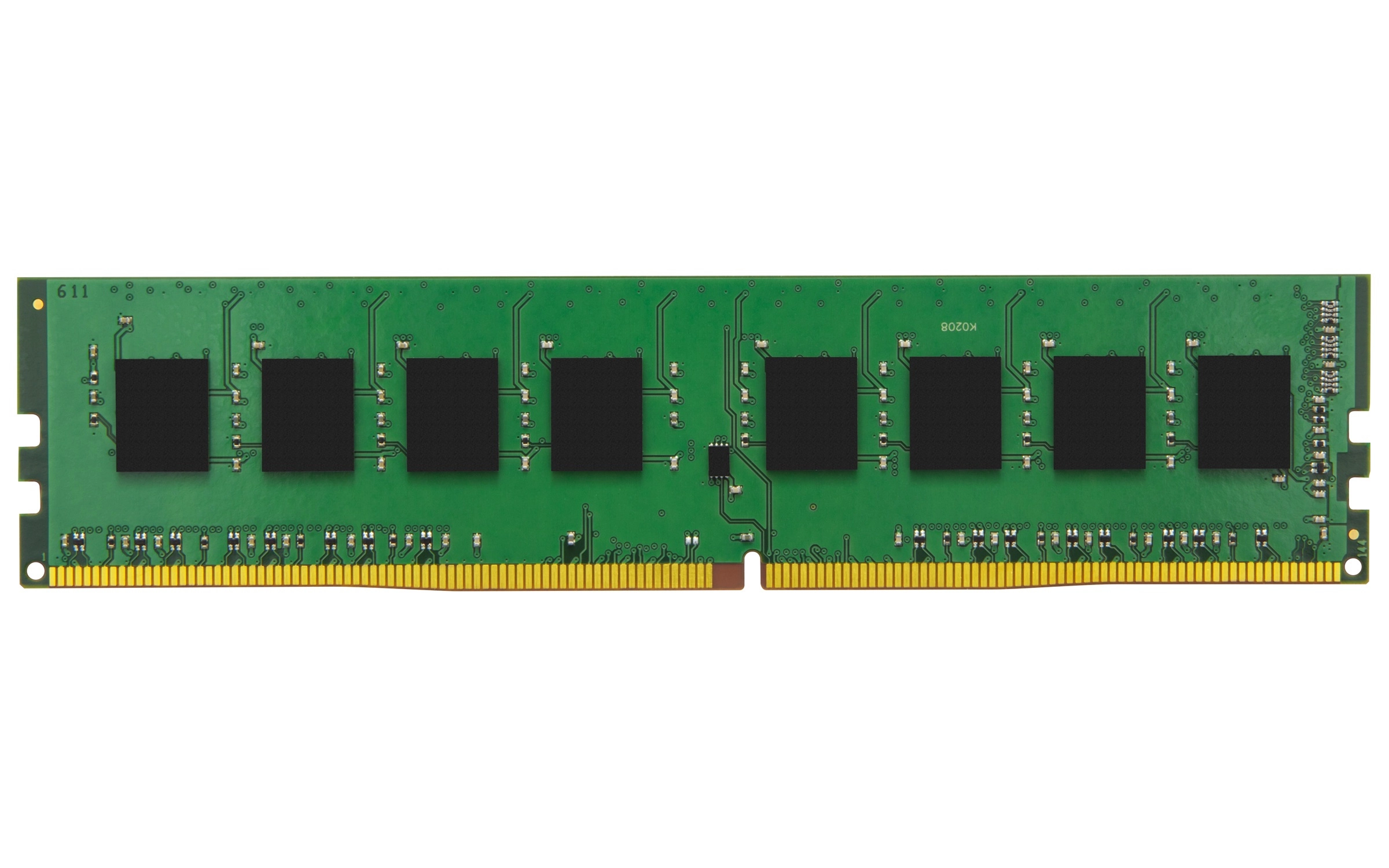

Kingston Technology KVR32N22S6/8 - 8 GB 3200 MHz DIMM DDR4

Name: Kingston Technology KVR32N22S6/8 - 8 GB 3200 MHz DIMM DDR4
Brand: Kingston Technology
SKU: 937008
Availability: InStock

Best offer

AED

260⁰⁰

AED

299⁰⁰

-13%

Key Features

Row cycle time: 45.75ns
Refresh row cycle time: 350ns
Row active time: 32ns
Component for: PC/Server
Buffered memory type: Unregistered (unbuffered)
Programming power voltage (VPP): 2.5V
SPD profile: Yes
Module configuration: 1024M x 64
Lead plating: Gold
CAS latency: 22
Memory ranking: 1
Internal memory: 8GB
Compliance certificates: RoHS
Memory clock speed: 3200MHz
Internal memory type: DDR4

Specifications

Features

Country of origin

Taiwan

JEDEC standard

✓

Internal memory

8000 MB

Module configuration

1024M x 64

Lead plating

Gold

CAS latency

Memory ranking

Programming power voltage (VPP)

2.50 V

SPD profile

✓

Component for

PC/Server

Row active time

32 ns

Refresh row cycle time

350 ns

Row cycle time

45.75 ns

Weight & dimensions

Height

30 mm

Width

133.30 mm

Computer system

Internal memory

8 GB

Operational conditions

Operating temperature (T-T)

0 - 85 °C

Technical details

Doesn't contain

Halogen

Compliance certificates

RoHS

Memory

ECC

✗

Memory clock speed

3200 MHz

Internal memory type

DDR4

Memory form factor

288-pin DIMM

Buffered memory type

Unregistered (unbuffered)

Logistics data

Harmonized System (HS) code

84733020

Product Details

This document describes ValueRAM's KVR32N22S8L/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, VLP (very low profile) memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
