Feature

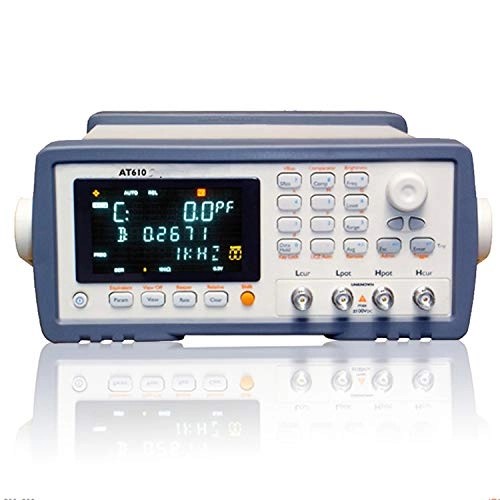

● High brightness, VFD display
● Zero-setting Function: Open and short sweep or point frequency zero-setting function
● Simultaneously display of ΔABS and Δ%
● ΔABS, Δ% and sorting results can displayed simultaneously in the third window.
● Comparator (sorting) function: P1, P2, P3, NG, AUX five bins sorting results display and output
● User definded sorting results beep and volume.

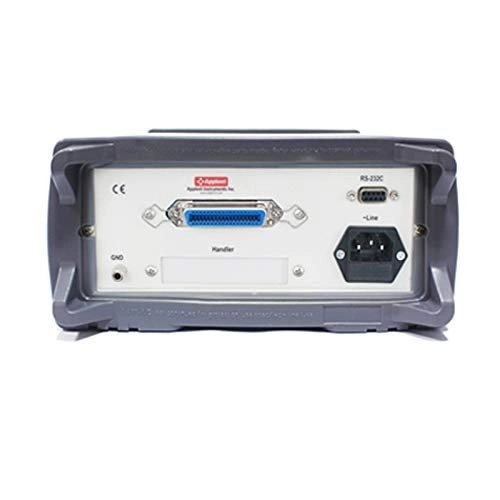

● Build-in RS232 and Handler interface
● Adjustable brightness
● 1000V protection
Specification
Parameters C,D,ESR,EPR,Q
Accuracy 0.1%
Frequency 100Hz, 120Hz, 1kHz, 10kHz
Display Range C: 0.01pF - 9999μF ESR,EPR: 0.0001Ω - 99.99MΩ? D: 0.0001 - 9999 Δ%: -9999% - 9999%
Source Resistance 30Ω 100Ω
Range Automatic and manual, 6 ranges
Signal Level 0.3Vrms,1Vrms
Speed 25 t/s, 10 t/s, 2 t/s
Equivalent Circuit In series and parallel
Result Display 3 parameters are displayed together in 5 dgt: show, ?ABS, ?%, ESR, EPR or sorting results
Adjustment Open-circuit point or sweep frequency zero reset; short-circuit point or sweep frequency zero reset
Comparator 20 groups record, 5-bin sorting (9-bin sorting is available), beep
Impact Protection 1000V/10μF, 600V/80μF, 400V/150μF capacitance under electricity impact protection
Interface RS-232C (SCPI programmable language) Handler
: 198V AC - AC Frequency: 50Hz Power: Max 15VA

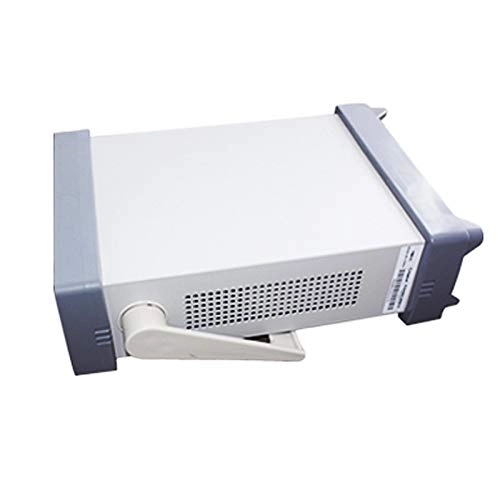

264mm (Width)x107mm (Height)x350mm (Depth) 4kg
ATL501: Test cable ATL607: Test Fixture ATL600: Short-circuit device ATL801-232 communication cable
VFD four-color high definition color screen; keypad lock & data hold function
