KASTWAVE SMK-5009 - Wired

Fn Combination Function Description

FN+1: normal F1 button

FN+2: normal F2 button

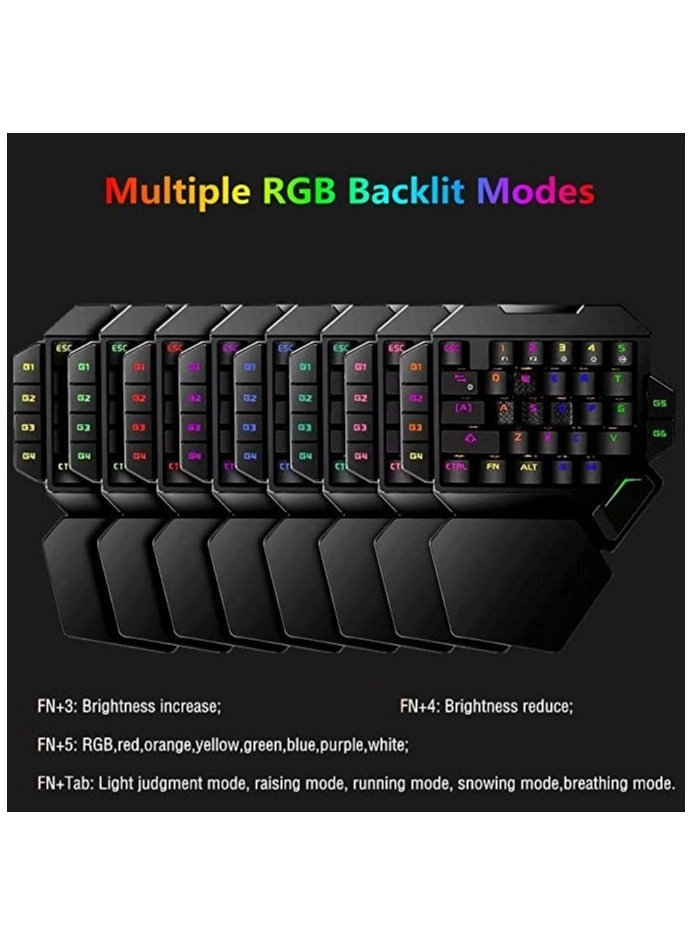

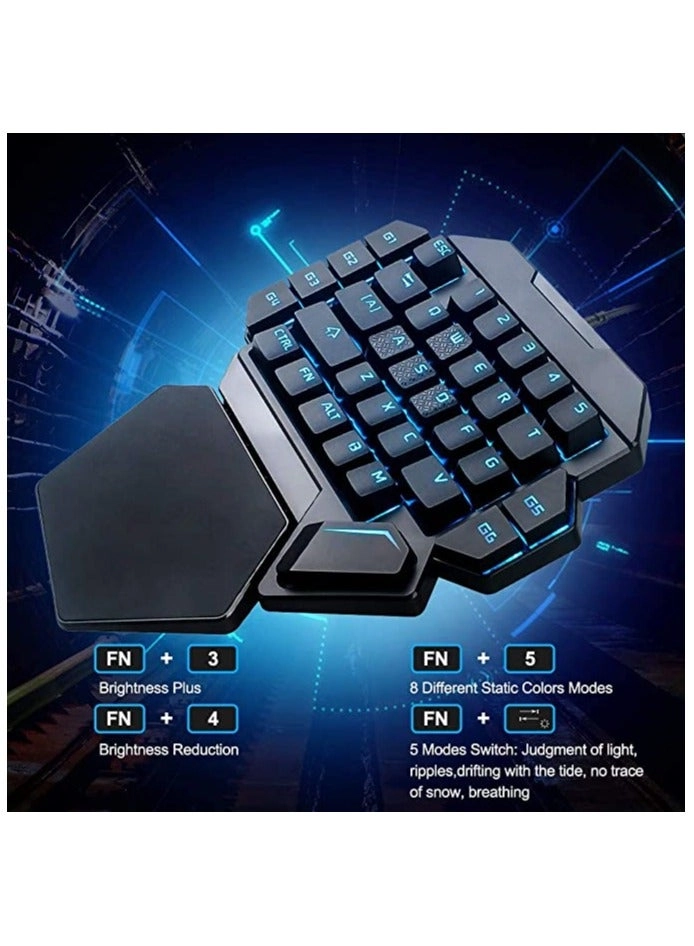

FN+3: brightness plus 0-30%-60%-100%

FN+4: brightness reduction 0-30%-60%-100%

FN+5: color switching (red, orange, yellow, green, blue, blue, purple,white)

FN+TAB: light switching light judgment, raising, running, snowing, breathing

Macro Recording and Deletion Operation:

Default G1 - G6 have no record, corresponding to F1, F2, F3, F4, F5, F6.

Record: press FN+G1 and the G1 light flashing to start recording. After inputting, press FN+G1 to complete the recording, and then the G1 light returns to the normal mode.

Delete: Directly press FN+G1 again to delete the record, then the G1 become default.

The G2, G3, G4, G5 and G6 have same methods to record and delete.

Package Including：

USB Wired Mechnical Keyboard

1 x Manual
