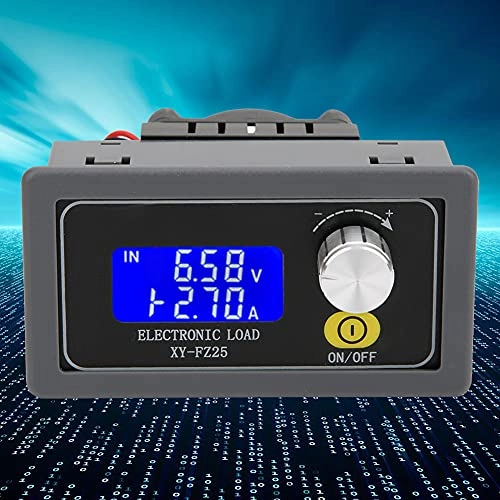

Jelquix Battery Capacity Tester - Multimeters

Specification

• Item Type: Battery capacity tester
• Pattern: 4A, 25W / 5A, 35W (optional)
• Rated Power Supply Voltage: DC5.0 ~ 30.0V (with anti-reverse protection, no burning after reverse connection)
• Rated Load Voltage: DC1.5 ~ 25.0V (with anti-reverse connection protection, reverse connection does not burn)
• Rated Load Current: 0.00 ~ 4.00A / 0.00-5.00A
• Discharge Power: 25W / 35W
• Constant Current Accuracy: ± (1% + 3 digit)
• Voltage Accuracy: ± (0.5% + 1 digit)
• Overvoltage Protection (OVP): Default 25.2V (can be set by yourself)
• Overcurrent Protection (OCP): Default 4.10A (can be set by yourself) / default 5.10A (can be set by yourself)
• Over Power Protection (): Default 25.5W (can be set by yourself) / default 35.5W (can be set by yourself)
• Undervoltage Protection (LVP): Default 1.5V (can be set by yourself)
• Over Temperature Protection (OTP): About 80 ℃ by default (cannot be set)

Fan Speed: Oil-bearing intelligent temperature control fan, speed 580 ± 10% RPM / water pressure bearing intelligent temperature control fan, speed 8000 ± 10% RPM

Function Description

1. Display current (A) voltage (V) power (W) capacity (Ah) and discharge time;
2. With a complete protection mechanism;
3. Automatic statistics of discharge capacity and discharge time;
4. Set the maximum discharge capacity (OAH) and maximum discharge time (OHP); (Realize unattended power aging test)
5. Intelligent temperature control fan, the fan starts automatically when the power is higher than 10W or the temperature is greater than 40 ℃;
6. Using rotating encoder potentiometer, the current can be adjusted accurately to 0.01A, and the current can be locked to prevent misoperation;
7. Data group function: you can choose whether to add the capacity value and running time of one stage;
8. With powerful serial communication function.

Size: Approx. 44.5mm / 1.8in, Approx. 10.5mm / 0.4in, Approx. 39mm / 1.5in, Approx. 79mm / 3.1in, Approx. 25mm / 1in

PackageList

1 x Battery Capacity Tester
