540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch
540S - 240 GB 2.5-inch

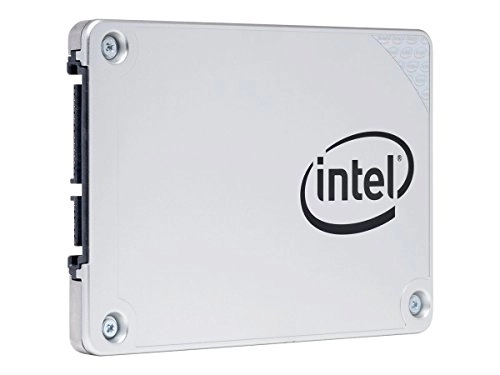

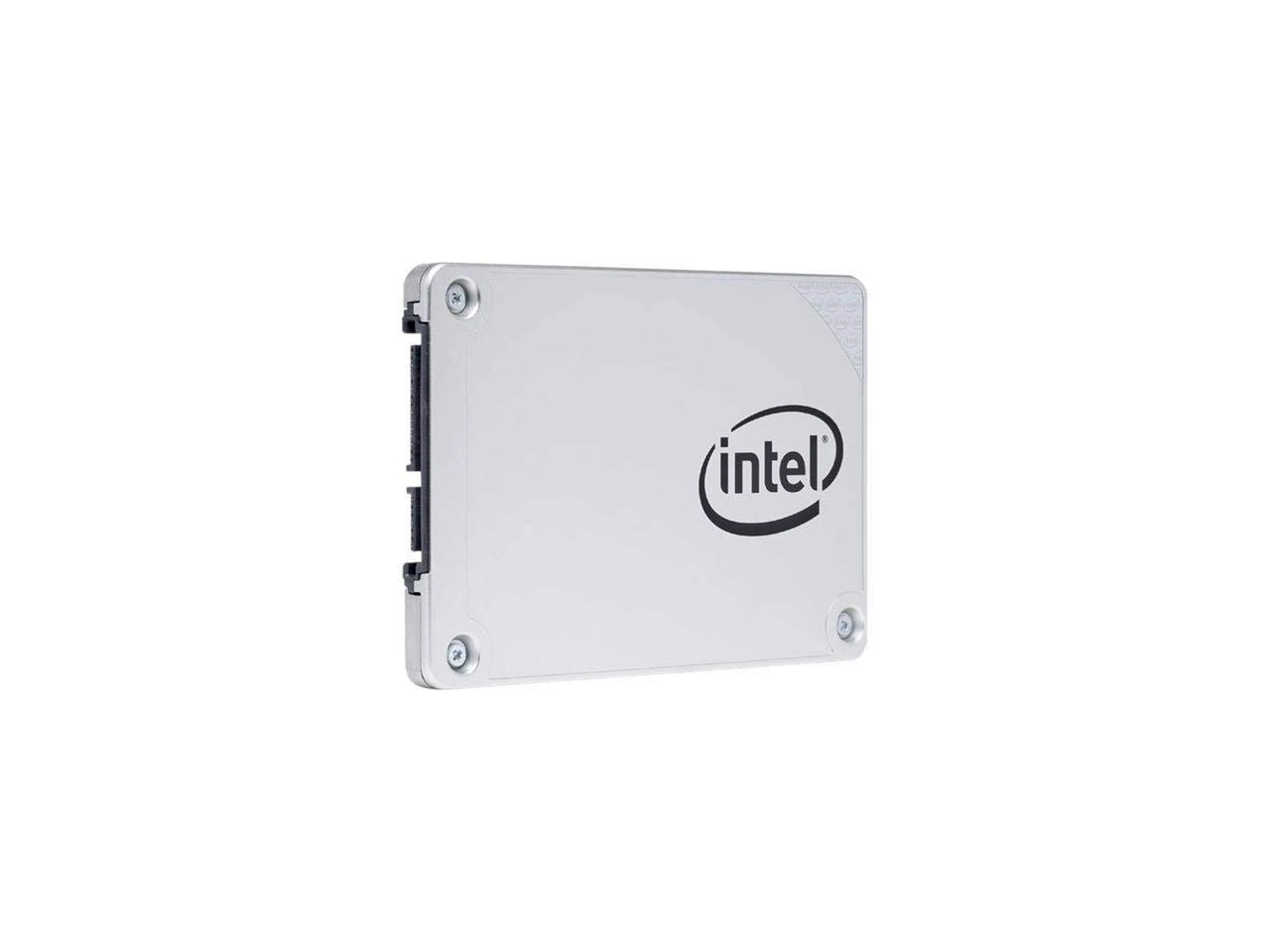

Intel 540S - 240 GB 2.5-inch

Best offer
AED
89315

Key Features

  • NAND flash type: TLC (Triple Level Cell)
  • Random read (4KB): 41000IOPS
  • Random write (4KB): 80000IOPS
  • Random read (8KB): 41000IOPS
  • Random write (8KB): 85000IOPS
  • Random read (100% span): 65000IOPS
  • Random write (100% span): 16000IOPS
  • Steady state random write (4KB): 16000IOPS
  • Write latency: 40µs
  • Read latency: 80µs
  • Component for: Server/workstation
  • SSD temperature monitoring: Yes
  • End-to-End Data Protection: Yes
  • Enhanced Power Loss Data Protection technology: Yes
  • Sequential latency - read (up to): 36µs
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Product series
Intel® SSD E 5420s Series
Launch date
Q3'16
Mean time between failures (MTBF)
2000000 h
Market segment
Mobile
Use conditions
Server/Enterprise
Security algorithms
256-bit AES
Lithography
16 nm
Product colour
Silver
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Data transfer rate
6 Gbit/s
Power consumption (idle)
0.05 W
Random latency - write (up to)
61 µs
Random latency - read (up to)
102 µs
Sequential latency - write (up to)
37 µs
Sequential latency - read (up to)
36 µs
SSD temperature monitoring
✓
Component for
Server/workstation
NAND flash type
TLC (Triple Level Cell)

Weight & dimensions

Weight
62 g
Height
7 mm

Power

Power consumption (average)
3.10 W
Power consumption (read)
0.09 W
Power consumption (write)
2.80 W

Performance

Maximum operating temperature
70 °C
Minimum operating temperature
0 °C

Other features

Product family
Data center SSD
Power consumption (active)
2.30 W
SSD weight
62 g
SSD hardware encryption
AES 256 bit
SSD power consumption (active)
2.8 W
SSD power consumption (idle)
500 mW
SSD endurance rating
599 TBW
SSD shock
1000G/0.5ms
Random read (8GB span)
65000 IOPS
Random write (8GB span)
16000 IOPS
Drive capacity
240 GB
Remote Secure Erase (RSE) technology version
0.00
Sequential writing speed
300 MB/s
Sequential reading
320 MB/s
Intel Rapid Start Technology version
0
SSD ARK ID
96532
SSD usage tag
Consumer, Data center, Embedded, Professional
TBW rating
599
Intel High Endurance Technology (HET)
✗

Processor special features

Intel Smart Response Technology version
0.00
Intel® Rapid Start Technology
✗
Intel® Smart Response Technology
✗

Storage

NVMe
✗
SSD form factor
2.5"
SSD capacity
240 GB

Design

Internal
✓

Computer system

Processor family
Intel SSD D3

Ports & interfaces

Interface
Serial ATA III

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95 %
Non-operating vibration
3.13 G
Operating vibration
2.17 G
Non-operating shock
1000 G
Operating shock
1000 G
Storage relative humidity (H-H)
5 - 95 %

Technical details

Product codename
Youngsville
Last change
63903513
Status
Launched
Commodity Classification Automated Tracking System (CCATS)
G162706
Certification
BSMI, CE, KCC, Microsoft WHCK/WHLK, RCM, SATA-IO, UL, VCCI
Compliance certificates
RoHS

Processor

Processor lithography
16 nm

Memory

Internal memory type
SATA 3.0 6Gb/S

Security

Hardware encryption
✓
Enhanced Power Loss Data Protection technology
✓
End-to-End Data Protection
✓

Brand-specific features

Intel® Remote Secure Erase
✗

Logistics data

Export Control Classification Number (ECCN)
5A992C
Harmonized System (HS) code
84717070

Solid state drive

Read speed
500 MB/s
Write speed
490 MB/s
Memory type
MLC
Read latency
80 µs
Write latency
40 µs
Steady state random write (4KB)
16000 IOPS
Random write (100% span)
16000 IOPS
Random read (100% span)
65000 IOPS
Random write (8KB)
85000 IOPS
Random read (8KB)
41000 IOPS
Random write (4KB)
80000 IOPS
Random read (4KB)
41000 IOPS

Product Details

Intel Evolving Storage Technology Intel® Solid State Drives (Intel® SSDs) continue to evolve with the introduction of the Intel® SSD 535 Series. Designed for a wide range of consumer and embedded platforms, including Ultrabook™, traditional desktops and laptops, mini computers, and digital signage, as well as the latest tablets and small form factor mobile systems, Intel SSD 535 Series combines high quality, reliable performance and low power consumption for space conscious computing. Small Form Factors The Intel SSD 535 Series M.2 form factor delivers outstanding performance for thin and light computing devices. Intel’s SSD M.2 form factor requires far less space than a traditional 2.5-inch form factor storage device. Intel SSD 535 Series is also available in traditional 2.5-inch form factors, providing a variety of solid state technology solutions. The Intel SSD 535 Series product line is available in capacities ranging from 56GB to 480GB. Latest NAND Technology Intel SSD 535 Series uses the latest 16nm NAND technology. You will also benefit from the high quality and reliability you’ve come to expect from Intel. Along with power and space savings, reliability, and peace of mind, the Intel SSD 535 Series comes with Intel’s outstanding customer support and 5-year limited warranty. A New Generation of Power Efficient Performance With the Intel SSD 535 Series, your computer will effortlessly manage demanding consumer client applications and easily handle intense multi-tasking. The Intel SSD 535 Series accelerates platform performance with sequential reads of up to 540 megabytes and sequential writes of up to 490 megabytes per second (MB/s) and random read and write input/output operations (IOPS) of up to 48K and 80K respectively. In addition to strong performance gains, Intel SSD 535 Series provides extended battery life through low power modes. Idle power consumption of Intel SSD 535 Series is reduced by >90% over a typical hard disc drive, thereby reducing power consumption from watts to milliwatts. When the Intel SSD 535 Series is coupled with a 4th or 5th generation Intel® Core-based platform, advanced power mode settings reduce power dissipation another order of magnitude – from milliwatts to microwatts. Product Spotlight - High performance for demanding applications; - High quality and reliability; - Low power consumption; - Space-conscious form factors; - 16nm NAND technology; - Wide range of capacities.

Files

Product Brochure

mmo_26462206_1477921454_7615_16660.pdf

PDF• 246.1 KB

Images

8-22768-2276
