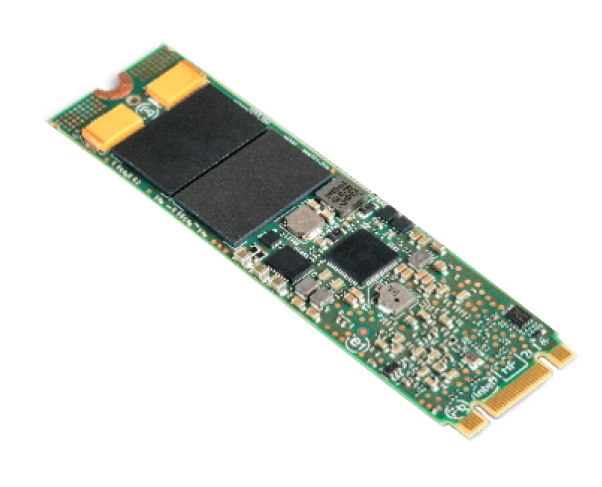

Intel 5400s Series - 480GB M.2

Unavailable

Key Features

  • NAND flash type: TLC (Triple Level Cell)
  • Random read (8KB): 50000IOPS
  • Random write (8KB): 85000IOPS
  • Random read (100% span): 91000IOPS
  • Random write (100% span): 18000IOPS
  • Write latency: 50µs
  • Read latency: 50µs
  • Component for: Server/workstation
  • SSD temperature monitoring: No
  • End-to-End Data Protection: No
  • Enhanced Power Loss Data Protection technology: No
  • Uncorrectable Bit Error Rate (UBER): < 1 per 10^16 bits read
  • Data transfer rate: 6Gbit/s
  • Power consumption (idle): 0.04W
  • Power consumption (read): 0.08W
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Product series
Intel® SSD E 5400s Series
Launch date
Q1'16
Mean time between failures (MTBF)
1600000 h
Market segment
Mobile
Security algorithms
256-bit AES
Lithography
16 nm
Product colour
Black
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^16 bits read
Data transfer rate
6 Gbit/s
Power consumption (idle)
0.04 W
SSD temperature monitoring
✗
Component for
Server/workstation
NAND flash type
TLC (Triple Level Cell)

Weight & dimensions

Height
2.23 mm
Depth
80 mm
Width
22 mm

Power

Operating voltage
3.30 V
Power consumption (read)
0.08 W
Power consumption (write)
0.08 W

Other features

Product family
Professional SSD
SSD hardware encryption
AES 256 bit
SSD power consumption (active)
80 mW Typical
SSD power consumption (idle)
40 mW Typical
SSD endurance rating
1.15 PBW
Product brief URL
http://www.intel.com/content/www/us/en/solid-state-drives/ssd-pro-5400s-series-m2-spec.html
SSD shock
1000 G/0.5 ms
Random read (8GB span)
78000 IOPS
Random write (8GB span)
85000 IOPS
Drive capacity
480 GB
Remote Secure Erase (RSE) technology version
1.00
Sequential writing speed
480 MB/s
Sequential reading
560 MB/s
Intel Rapid Start Technology version
1
SSD ARK ID
94438
SSD usage tag
Consumer, Embedded, Professional
Intel High Endurance Technology (HET)
✗

Processor special features

Intel Smart Response Technology version
1.00
Intel® Rapid Start Technology
✓
Intel® Smart Response Technology
✓

Storage

NVMe
✗
SSD form factor
M.2
SSD capacity
480 GB

Design

Internal
✓

Ports & interfaces

Interface
Serial ATA III

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95 %
Non-operating vibration
3.13 G
Operating vibration
2.17 G
Non-operating shock
1000 G
Operating shock
1000 G
Storage relative humidity (H-H)
5 - 95 %

Technical details

Product codename
Loyd Star
Last change
63903513
Status
Launched
Certification
BSMI, CE, KCC, Microsoft WHCK/WHLK, RCM, SATA-IO, UL, VCCI
Compliance certificates
RoHS

Security

Hardware encryption
✓
Enhanced Power Loss Data Protection technology
✗
End-to-End Data Protection
✗

Brand-specific features

Intel® Remote Secure Erase
✓

Logistics data

Harmonized System (HS) code
84717070

Solid state drive

Read speed
560 MB/s
Write speed
480 MB/s
Memory type
TLC
Read latency
50 µs
Write latency
50 µs
Random write (100% span)
18000 IOPS
Random read (100% span)
91000 IOPS
Random write (8KB)
85000 IOPS
Random read (8KB)
50000 IOPS

Product Details

Enhanced Power Loss Data Protection Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data. Hardware Encryption Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion. Temperature Monitoring and Logging Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command. End-to-End Data Protection End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
