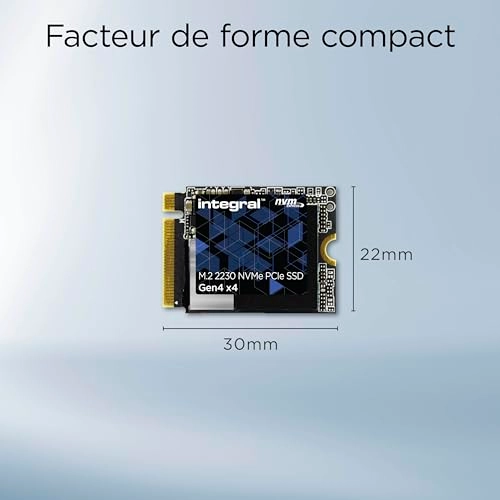

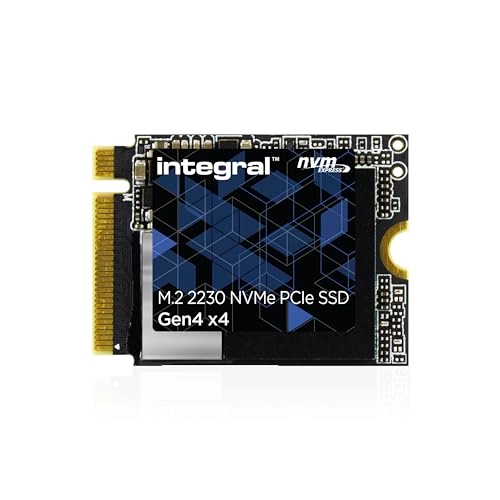

Integral M.2 NVMe 2230 PCIe Gen4 x4 SSD - 2TB

Key Features

NVMe version: 1.3
Component for: PC/Laptop
S.M.A.R.T. support: Yes
Power consumption (read): 4W
Power consumption (write): 1.9W
NVMe: Yes
SSD capacity: 1000GB
SSD form factor: M.2
Compliance certificates: RoHS
TRIM support: Yes
Hardware encryption: No
Read speed: 4900MB/s
Write speed: 3200MB/s
Width: 22mm
Package depth: 12mm

Specifications

Features

Compatible products

Dell, HP, Lenovo Ultrabook's & Tablet, Microsoft Surface Pro Series, NUCs, PCs, ROG Ally, Steam Deck

Mean time between failures (MTBF)

1500000 h

Protection features

Shock resistant

S.M.A.R.T. support

✓

Component for

PC/Laptop

Packaging data

Package weight

8 g

Package height

90 mm

Package depth

12 mm

Package width

55 mm

Weight & dimensions

Weight

2 g

Height

30 mm

Depth

0.80 mm

Width

22 mm

Power

Operating voltage

3.40 V

Power consumption (read)

4 W

Power consumption (write)

1.90 W

Other features

TBW rating

250

Storage

NVMe

✓

SSD capacity

1000 GB

SSD form factor

M.2

Ports & interfaces

Interface

PCI Express 3.0, PCI Express 4.0

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Technical details

Certification

CE, FCC, RoHS, RoHs, UKCA

Compliance certificates

RoHS

Security

TRIM support

✓

Hardware encryption

✗

Solid state drive

Read speed

4900 MB/s

Write speed

3200 MB/s

NVMe version

1.3

Product Details

The Integral Memory M.2 2230 NVMe Gen4 x4 PCIe SSD’s compact 2230 form factor will supercharge even the smallest and thinnest devices including the Microsoft Surface Pro, HP, Lenovo, Dell and other ultra-thin tablets and laptops, achieving incredible read speeds of up to 5000MB/s and up to 3200MB/s write speeds. Gen4 2230 solid-state drives deliver ultimate processing capabilities, significantly reducing operating system boot times and lowering power consumption. With the latest in error detection and correction and data management capabilities, the NVMe Gen4 2230 SSDs are ideal for upgrading devices for both work and home and configured as a boot device for embedded systems.
