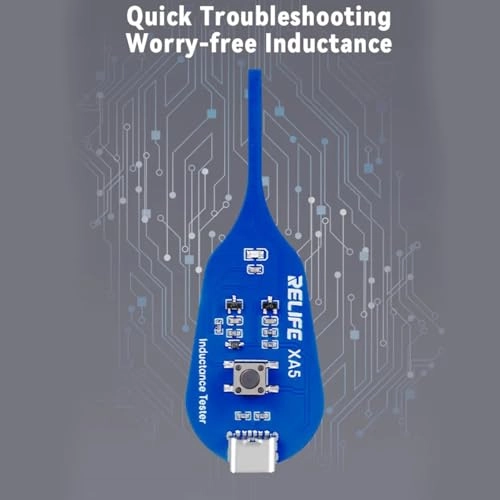

HZY XA5 - Inductance Tester Motherboard Coil Tester

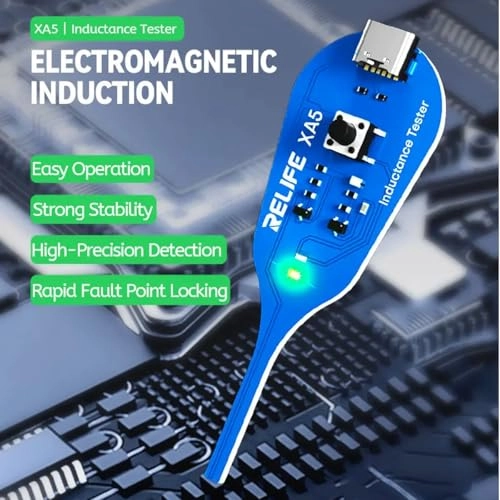

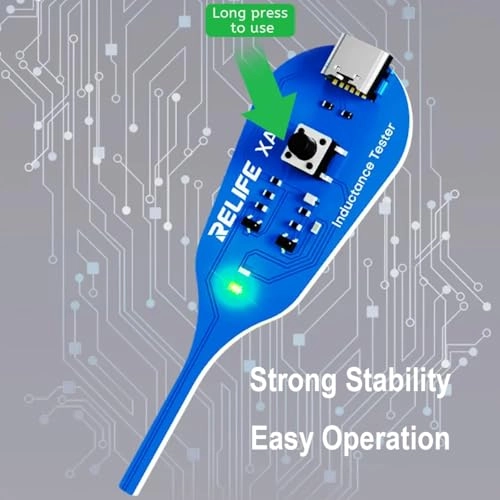

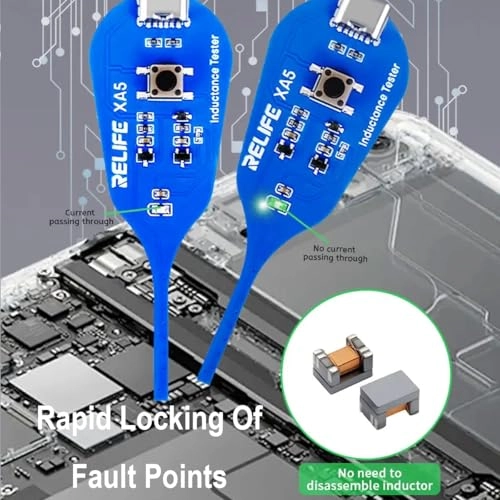

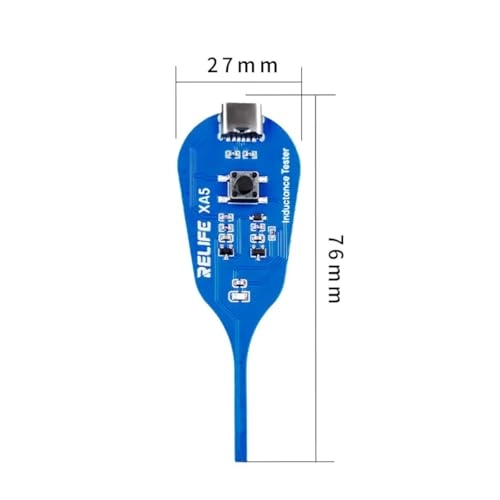

Motherboard Coil Tester Specifications Name:Motherboard Coil Tester Color: Blue Size: 7.6*2.7cm Material: Artificial board Package Contents: 1X CT-1 Motherboard Component Coil Tester Product Type:Inductor Tester / Coil Tester Function:Motherboard Component Testing Quick Diagnostic mobile phone motherboard or other BGA boards faults. A must-have tool for electronics technicians and repair experts. Designed for quick testing of coils and inductors on motherboards and PCBs, this compact device uses the principle of electromagnetic induction to identify properly working components with a for simple green indicator light. No complicated setup required, just press and check! Features 1.Easy Operation 2.High-Precision Detection 3.Strong Stability 4.Rapid Fault Point Locking Note: The color of the item may vary slightly due to photography and your own computer /Phone Please allow some little manual measurement error. RELIFE XA5 Inductance Tester Usage Instructions: 1. Plug in the power cord; the blue power indicator light on the board will illuminate. 2. Power on the component being tested. 3. Press the button and align the sensor head with the inductor being tested. 4. If the indicator light illuminates, the inductance is normal. 5. If the indicator light does not illuminate, the inductance is abnormal. Note: This tester only measures inductors with coils; it does not support resistors, capacitors, diodes, or transistors. Testing only requires proximity to the component; contact with metal heat sinks or shielding components will cause light indicators to appear, resulting in invalid data.
