Hyuduo IC Tester - 74 40 45 Series PCB Material

Spec

• Item Type: IC Tester
• Material: PCB
• Working Voltage: DC7-12 V
• Working Current: Working Temperature: -104℉~149℉
• Storage Temperature: -104℉~149℉

Key Description

• MODE: Select the integration type (74 series or 40 series)
• UP: Select the last integrated model
• DOWN: Select the integrated model
• TEST: : Test the selected integrated model

74 Series

• 7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409
• 7410,7411,7412,7413,7414,7415,7416,7417,7418,7419
• 7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432
• 7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443
• 7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473
• 7474,7475,7476,7477,7478,7480,7482,7483,7485,7486
• 7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108
• 74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
• 74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151
• 74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164
• 74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182
• 74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247
• 74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266
• 74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353
• 74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395
• 74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670

40 And 45 Series

CD4000- CD40193.

Package List

1 x Tester

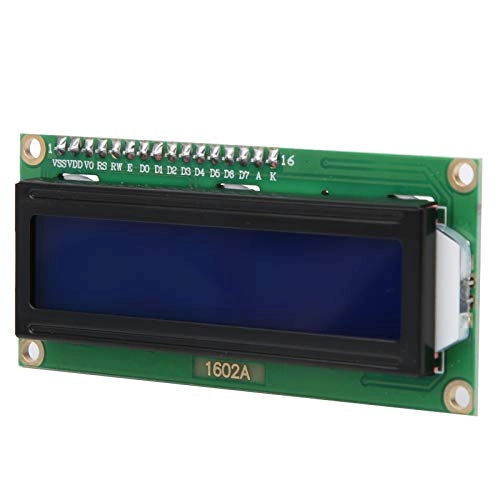

1 x LED Display
