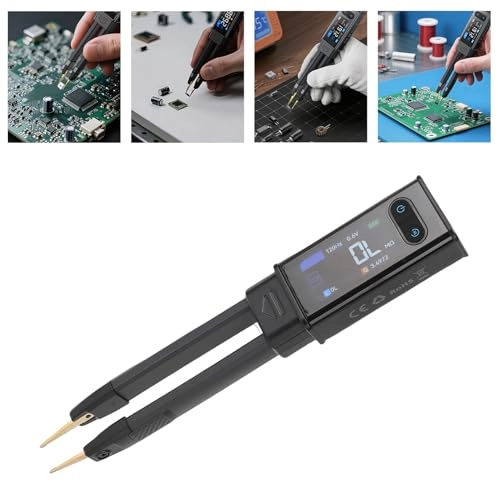

1. [MULTI-FUNCTIONAL TESTING] Experience unparalleled versatility with this SMD Component Tester that measures resistors, capacitors, inductors, diodes, and more. Featuring an automatic sorting function, it identifies abnormal components effortlessly. Its full frequency scanning spans from 100Hz to 100kHz, making it ideal for diverse applications, including RF circuits and large electrolytic capacitors.

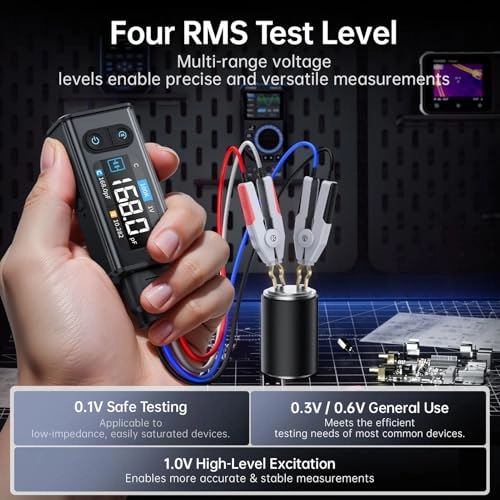

2. [RELIABLE PERFORMANCE] The SMD Component Tester is designed for accuracy with four RMS test levels (0.1V, 0.3V, 0.6V, 1.0V) and supports series and parallel modes. This functionality effectively reduces parasitic effects, ensuring precise measurements. Count on this tester for dependable performance in both professional and hobbyist settings, allowing accurate diagnostics.

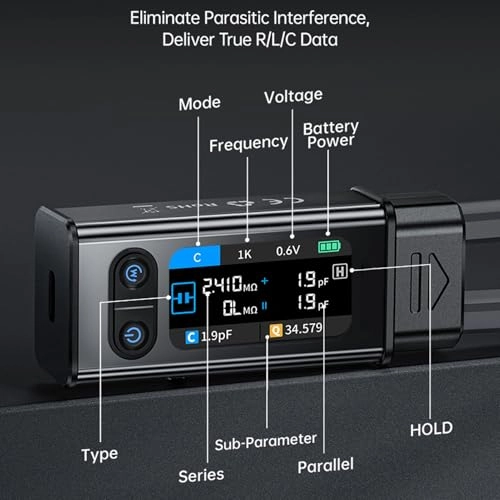

3. [USER-FRIENDLY DESIGN] Enjoy a seamless testing experience with the 1.47-inch HD display that boasts adjustable brightness for easy reading in various lighting conditions. This tester accommodates both left and right-handed users. Powered by a built-in 300mAh rechargeable battery, it supports Type C charging and offers an automatic shutdown feature for convenience and energy savings.
4. [COMPLETE SET FOR CONVENIENCE] The SMD Component Tester comes with essential accessories, including gold-plated straight and curved heads, allowing rapid replacement tailored to specific components. It is packaged with a dedicated storage bag for effortless organization and transport, making it the perfect companion for both fieldwork and workshops, ensuring you’re always ready to test.
5. [COMPREHENSIVE MEASUREMENT RANGE] Achieve extensive measurement capabilities with this device, offering capacitance testing from 1pF to 22mF, inductance from 1μH to 10H, and resistance from 10mΩ to 10MΩ. Plus, it features a voltage range of ±30V and diode forward voltage measurement of ≤0.7V. This range empowers technicians and enthusiasts to tackle a wide variety of testing scenarios with confidence.
Spec:
Item Type: SMD Component Tester
Material: ABS
Display Screen: 1.47 Inch HD Color Screen
Battery: 300mAh Li Battery, About 3 Hours Work Time (Built in)
Charging Port: Type C
Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Measurement Range:
Capacitance: 1pF–22mF
Inductance: 1μH–10H
Resistor: 10mΩ–10MΩ
Voltage Range: ±30V
Diode Forward Voltage Measurement: ≤0.7V
Working Temperature: 0℃–50℃ (≤75%RH)
Storage Temperature: -20℃–60℃ (≤75%RH)
Size: Approx. 31 x 170.7 x 20.3mm / 1.22 x 6.72 x 0.8in
Net Weight: Approx. 60.8g / 2.14oz
Calibration Mode: Open, Short Circuit, Multi Resistor Calibration
Auto Power Off Options: Never, 5 Minutes, 15 Minutes, 30 Minutes
How to Use:
See the instruction manual for usage.

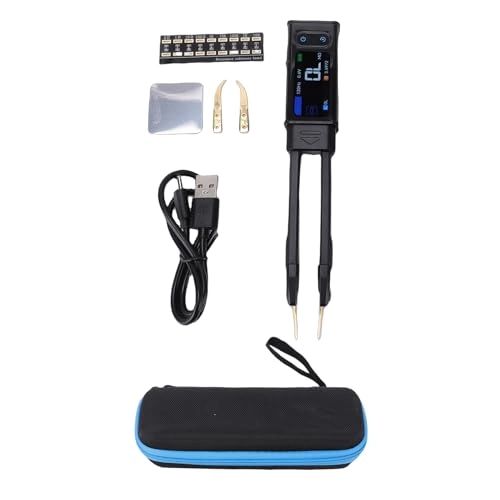

PackageList:
1 x SMD Component Tester
1 x Storage Bag
2 x Curved Tip
1 x Short Circuit Board
1 x Type C Data Cable
2 x User Manual

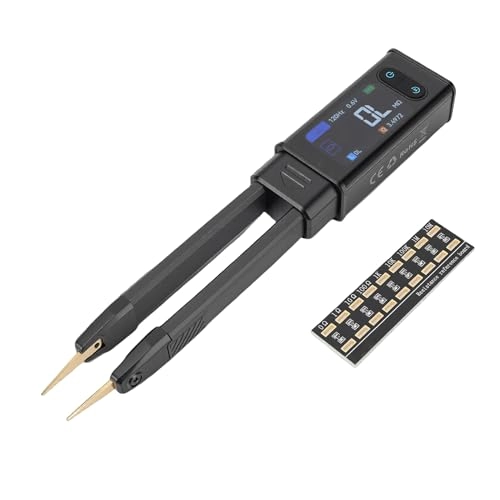

1 x Resistor Reference Board
