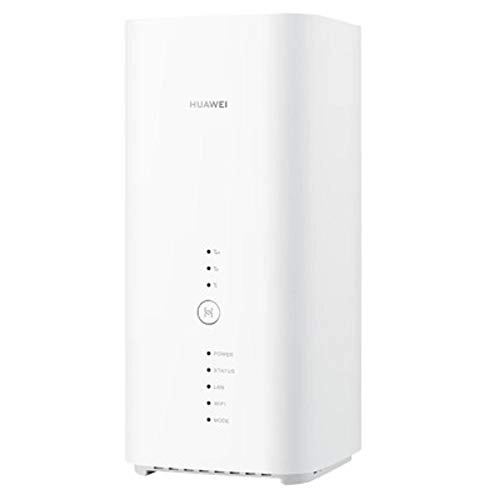

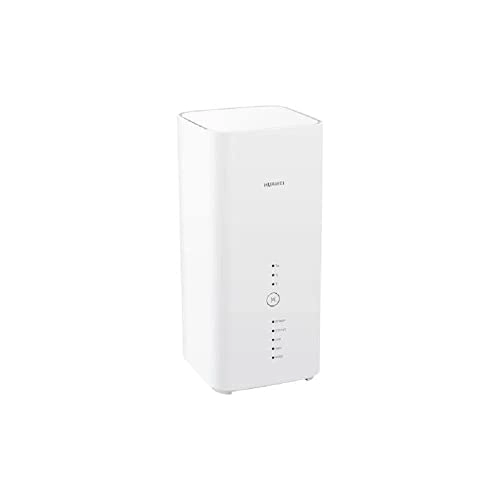

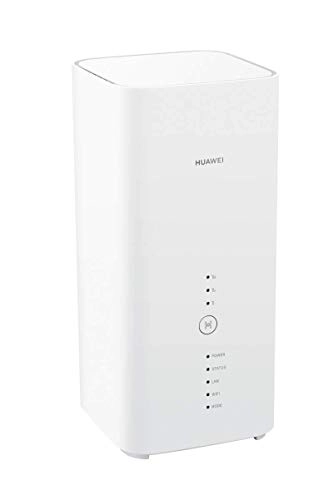

Huawei B818 - 4G LTE 802.11a/b/g/n/ac 1600Mbps

Model: B818-263

(White)

Operating Frequency:

(4G): LTE FDD: 2100(B1)/1800(B3)/850(B5)/2600(B7)/900(B8)/800(B20)/700(B28) MHz

LTE FDD SDL: 1500(B32) MHz

LTE TDD: 2600(B38)/2300~2390(B40)/2500(B41)/3500(B42)/3700(B43) MHz

(3G): UMTS: 2100(B1)/850(B5)/900(B8) MHz

Splash screen: Traditional Chinese Languages: English, Simplified Chinese, Traditional Chinese

Auto-APN: YES Auto-connect: YES

Key Features:

• Support LTE Cat19 (LTE 5CA), speed up to D/L 1600Mbps, U/L 150Mbps
• Wi-Fi 802.11a/b/g/n/ac, 2.4G/5G Dual Band Concurrently, data rates up to 1200Mbps (300Mbps+867Mbps)
• 32 Wi-Fi users/band (up to Max. 64 Wi-Fi users)

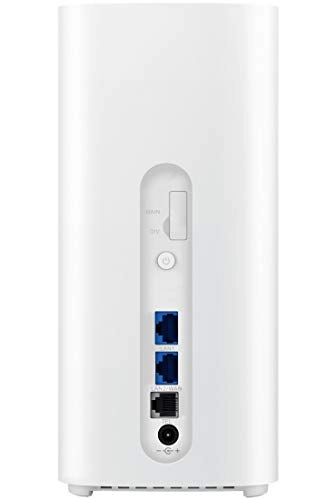

• 1 Gigabit LAN/WAN Port, 1 Gigabit LAN Port (RJ45)
• 1 Phone port (RJ11)
• 1 micro-SIM card slot (3FF)
• 2 External LTE antenna ports (TS-9)
• Support VPN Client (PPTP, L2TP) and VPN Pass-through
• Customer management via Web UI or HUAWEI SmartHome APP (iOS or Android)
• Dimensions: 103(Length)x103(Width)x225(Height)mm
• Weight: 614g(excluding the power adapter)

Package Contents: 1. B818-263 2. LAN Cable 3. Quick Start 4. Switching Power Adaptor
