HPE IAP-207

Unavailable

Key Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate (2.4 GHz): 400Mbit/s
Maximum data transfer rate (5 GHz): 867Mbit/s
Antenna features: Integrated antenna
Number of SSID supported: 16
Antenna direction type: Omni-directional
Antenna gain level (max): 6.8dBi
Maximum data transfer rate: 1267Mbit/s
Placement: Ceiling, Wall
Internal: No
Antenna type: Internal
Auto MDI/MDI-X: Yes
MIMO type: Single User MIMO
Ethernet LAN data rates: 10, 100Mbit/s

Specifications

Features

Antennas quantity

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, Not supported, WEP, WPA, WPA2, WPS

MIMO

✓

Product colour

White

Antenna gain level (max)

6.80 dBi

Maximum data transfer rate

1267 Mbit/s

Placement

Ceiling, Wall

Maximum data transfer rate (5 GHz)

867 Mbit/s

Maximum data transfer rate (2.4 GHz)

400 Mbit/s

5 GHz

✓

2.4 GHz

✓

Packaging data

Package weight

590 g

Package height

70 mm

Package depth

180 mm

Package width

190 mm

Weight & dimensions

Weight

380 g

Height

40 mm

Depth

150 mm

Width

150 mm

Power

Power consumption (max)

12.30 W

Power over Ethernet (PoE)

✓

Performance

Transmitting power

21 dBmW

Other features

Cable lock slot type

Kensington

Design

Reset button

✓

LED indicators

Link, Power, Yes

Cable lock slot

✓

Internal

✗

Antenna direction type

Omni-directional

Computer system

Antenna type

Internal

Packaging content

Quick start guide

✓

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Auto MDI/MDI-X

✓

MIMO type

Single User MIMO

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

WAN connection

Ethernet (RJ-45)

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

5 - 93 %

Technical details

Spread spectrum method

DSSS

Security

Number of SSID supported

Antenna

Antenna features

Integrated antenna

Radar

Modulation

16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM, QPSK

Product Details

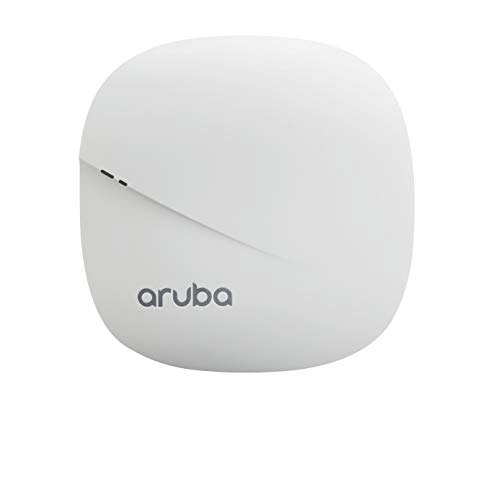

The affordable, mid-range Aruba 207 Series access point delivers high performance 802.11ac for medium density enterprise environments, such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive. The compact Aruba 207 Series AP delivers a maximum concurrent data rate of 867Mbps in the 5GHz band and 400 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.3Gbps). With the integrated Bluetooth Aruba Beacon, the 207 Series AP provides advanced location and indoor way finding, and proximity-based push notification services while simplifying the remote management of battery-powered Aruba Beacons. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Files

Product Brochure

mmo_34407983_1503644219_4776_27425.pdf

PDF• 312.1 KB

QuickSpecs

mmo_71497924_1566903165_8869_22887.pdf

PDF• 185.9 KB

Aruba 207 Series Access Points

mmo_71497924_1566903191_0082_22565.pdf

PDF• 345.8 KB
