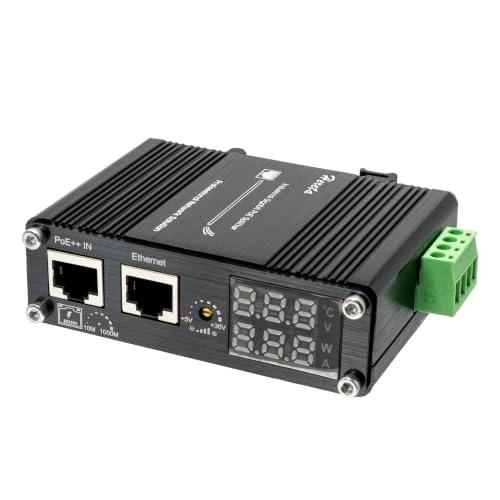

Hereta LNK-INJ-95W - 48-57VDC 95W 2 IEEE 802.3at / LTPoE++ 10/100/1000Base-TX

Model: LNK-INJ-48-95W Series The LNK-INJ-48-95W product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3at / LTPoE++ 95W 10/100/1000Base-TX PoE Injector. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output. Electrical and Mechanical Input Power: 12~48VDC (Terminal Block) PoE Standard: Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) Max. Power per Port: 95W Max per port (Alternative B Mode) Transmission distance: 100m (328 feet) Dimensions (WxDxH): 95*70*30 mm (3.74*2.76*1.18 inches) Weight: 0.25Kg (0.55Ib) Casing: Aluminum Case Environmental Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 5% to 95% non-condensing MTBF: >200,000hrs
