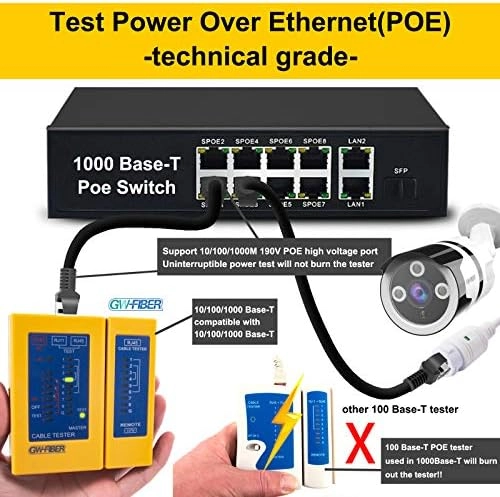

GWFIBER QC Network Cable Tester - RJ45 Continuity POE

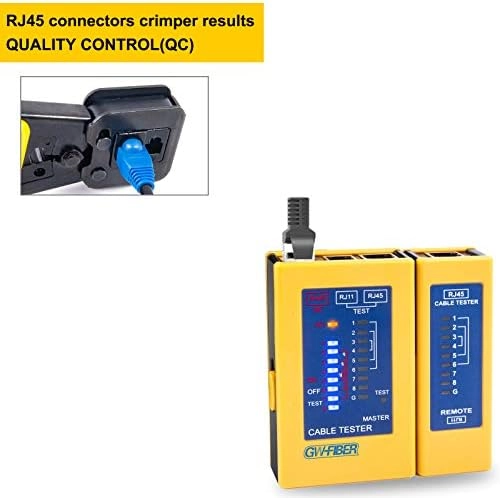

at last. GWFIBERs RD team has brought a improve Gigabit POE rj45 network cable testers. It has more powerful applicability and network speed compatibility, Inspection telephone, Connecting status of network harness. Intelligent, fast and intelligent stace tester for connection of telephone and network harness Check the connection between crystal head and wire harness,Accurately determine which end of the crystal head connecting with the network line perfectly soves the problem that the ordinary tester can not determine two water. in the end, the crtstal head is not connected at that end, so as to save time and material. 1. Pull the power switch up to (QCposition, and the yellow power lamp of the host (QCis always on. The machine is in working condition. 2. Insert one end of the crystal head (or telephone line crystal head into (QCwhich needs to be inspected. Check port. 3. The crystal head is connected with the wire harness in good condition, and the wire harness indicator lights are all on. 4. If the crystal head is not connected properly to the wire harness, the indicator light of the wire harness will not be turned on. FUNCTION For network 1. 2. 3. 4. 5. 6. 7. 8. G line pairs; telephone line 1. 2. 3. 4. 5. 6 line pairs; rootbyroot (pairtest, which (pairstaggered line, short circuit and open circuit can be distinguished and determined. 1. Turn down the power switch to (TESTposition, (TESTpower indicator green light flashes. 2. The network plug and telephone plug are inserted into the main tester and theremote tester respectively, and the host and remote machine sequence indicator lights shine one by one from 1 to G. Main tester: 12345678G Gigabit Power Over Ethernet test Support Gigabit industrial grade POE switch network port test, up to 129V voltage, can be applied, no longer worry about its ra.
