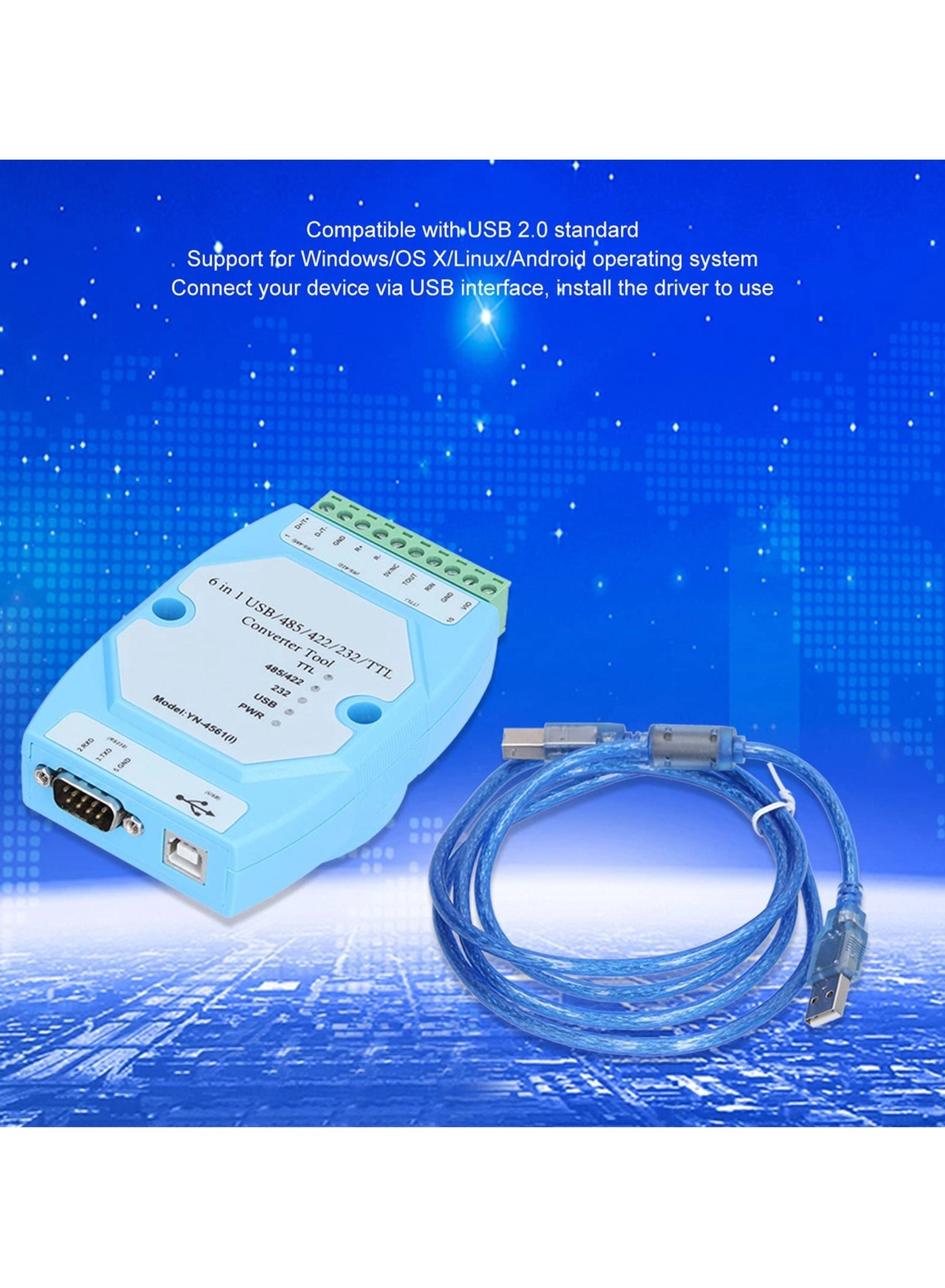

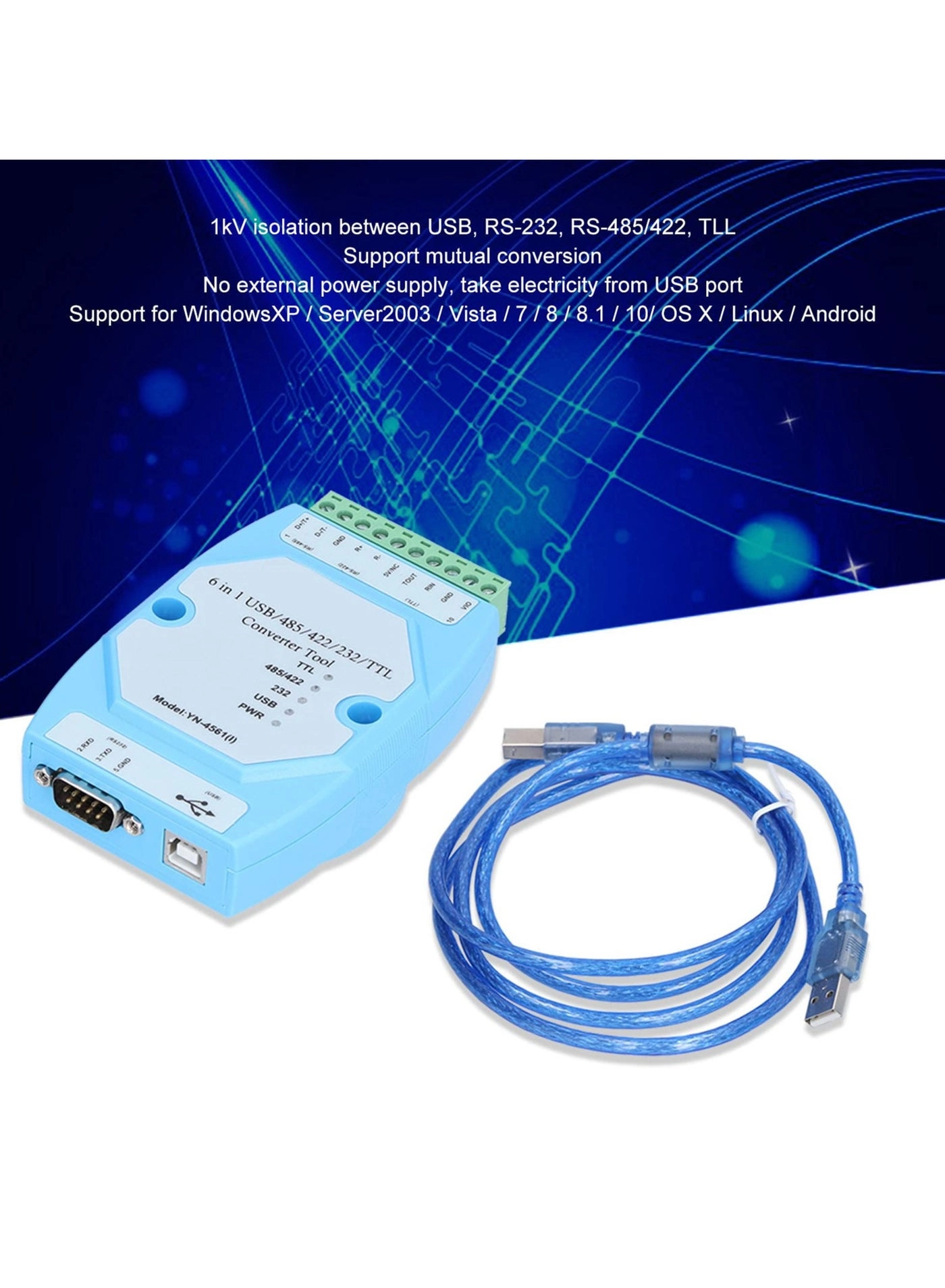

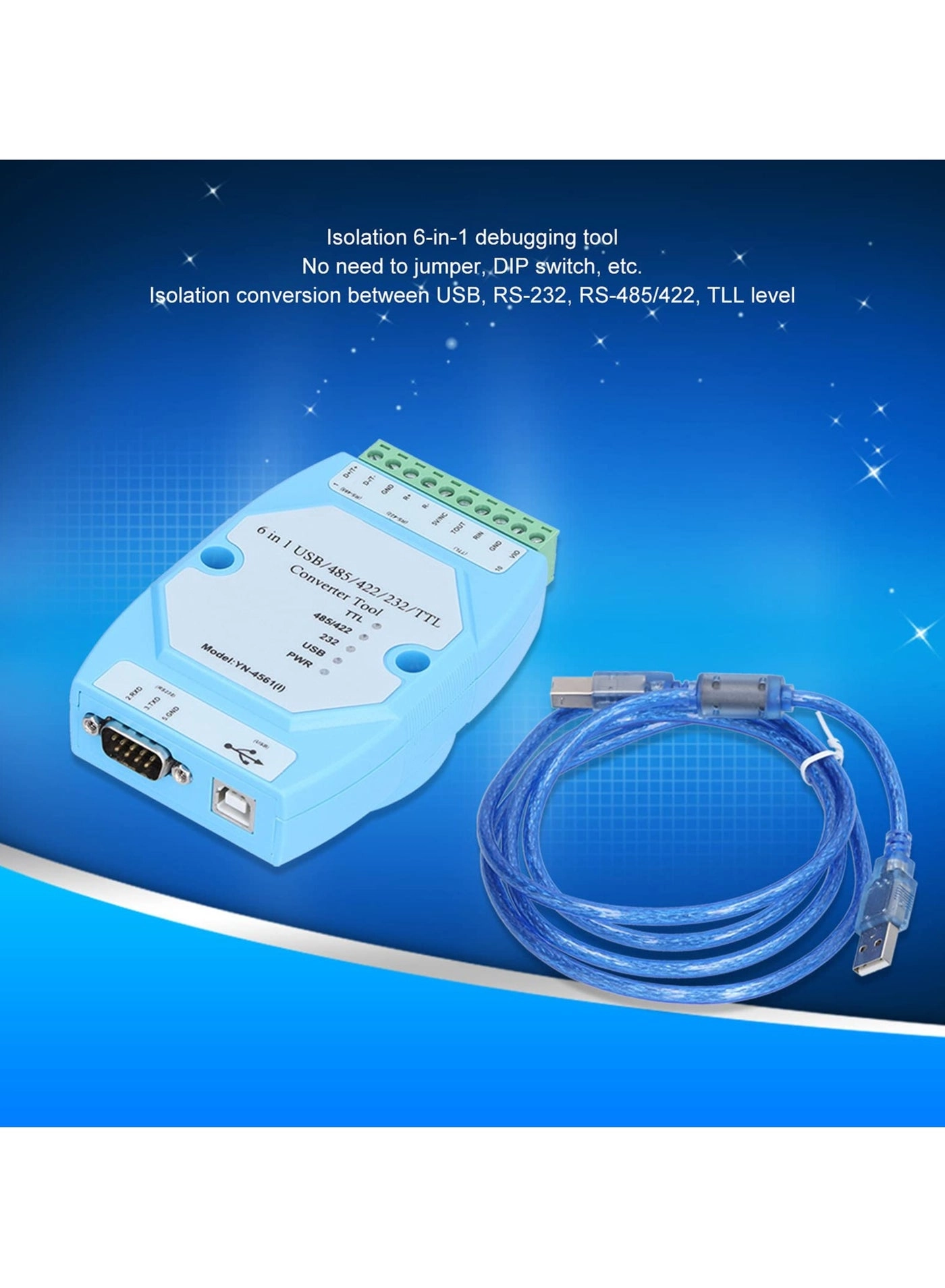

Green Tiger YN4561I - RS232 RS485/422 TTL Isolated

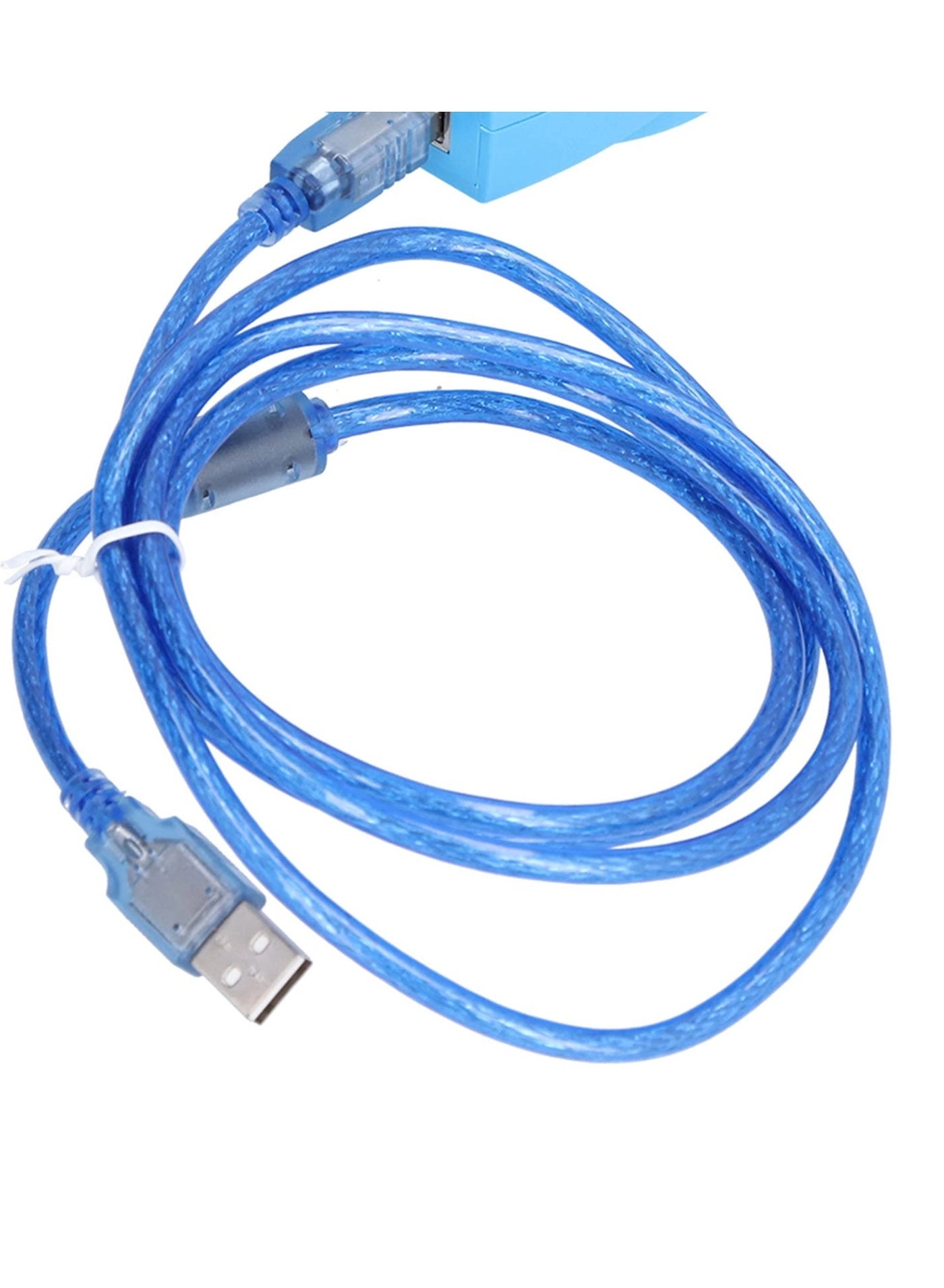

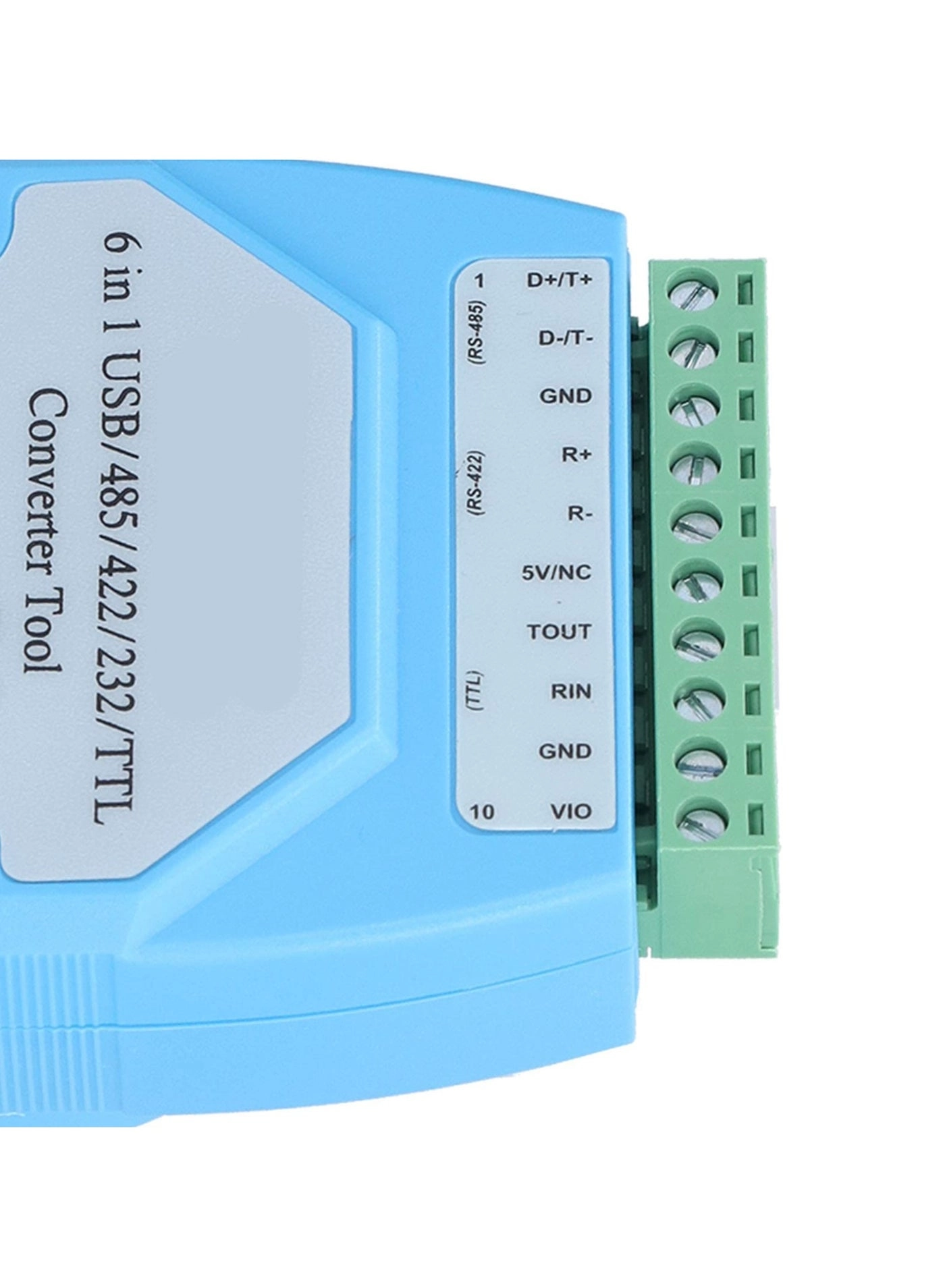

Item Type: Serial Port Module Material: ABS Model: YN4561I USB Compatibility: Compliance with USB 2.0 standards, support hot swap plug-and-play Port Design USB: Standard b port, equipment comes with a turn b wire RS232: Standard DB9 serial port male RS485 / 422: Plug-in terminal TTL: Insert terminal Transmission Rate: 1200bps - 115.2kbps Check Bit: Odd check, even check, no check Data Bit: 5, 6, 7, 8 Stop Bit: 1, 1.5, 2 RS232: TX, RX, GND, conforms to TIA / EIA-232 RS485: D +, D- balance difference half duplex, in line with TIA / EIA-485 standard RS422: T +, T-, R +, R- balance differences full duplex, in accordance with TIA / EIA-422 32 x RS-422 or RS-485 devices can be connected TTL: VIO, RXIN, TXOUT, GND support 5V or 3V level Work Distance: RS-232: 50ft(15 meters) at 9.6kbps Package List: 1 x Serial Port Module 1 x Cable 1 x User Manual
