Grandstream Networks GWN7600LR

Unavailable

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate (2.4 GHz): 400Mbit/s
  • Maximum data transfer rate (5 GHz): 867Mbit/s
  • Antenna features: Integrated antenna
  • Number of SSID supported: 16
  • Service Set Identifier (SSID) features: Hidden SSID
  • Antenna gain level (max): 5dBi
  • Maximum data transfer rate: 1201Mbit/s
  • Antenna connector type: BNC
  • Placement: Ceiling, Pole, Wall
  • Frequency band: 2.4 - 5.85 GHz, 2400 - 24835, 5150 - 5250, 5725 - 5850 GHzGHz
  • Internal: Yes
  • Antenna type: External, Internal
  • Channel bandwidth: 80MHz
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews
  • Community & Expert Opinions

Specifications

Features

Antennas quantity
2
Quality of Service (QoS) support
✓
Security algorithms
WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP, WPA3
Maximum indoor range
165 m
Maximum outdoor range
250 m
MIMO
✓
Product colour
White
Antenna gain level (max)
5 dBi
Maximum data transfer rate
1201 Mbit/s
Antenna connector type
BNC
Placement
Ceiling, Pole, Wall
Frequency band
2.4 - 5.85 GHz, 2400 - 24835, 5150 - 5250, 5725 - 5850 GHz
Maximum data transfer rate (5 GHz)
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
400 Mbit/s
5 GHz
✓
2.4 GHz
✓

Packaging data

Package weight
1840 g
Package height
97 mm
Package depth
187 mm
Package width
228.50 mm

Weight & dimensions

Weight
695 g
Height
290 mm
Depth
358.30 mm
Width
180.40 mm

Power

AC input voltage
24 V
Power consumption (typical)
12.90 W
Input current
1 A
Power consumption (max)
13.80 W
Power over Ethernet (PoE)
✓

Performance

Transmitting power
22 dBmW

Other features

Cable lock slot type
Kensington
Bandwidth
1 GHz

Design

International Protection (IP) code
IP66
Reset button
✓
LED indicators
Status, Yes
Cable lock slot
✓
Internal
✓

Computer system

Antenna type
External, Internal

Packaging content

Quick start guide
✓
Mounting kit
✓

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols
802.11e/WMM, 802.1Q, 802.1p, 802.1x, IPv4
Channel bandwidth
80 MHz
Ethernet LAN data rates
10, 100
MIMO type
Multi User MIMO

Ports & interfaces

USB connector type
USB Type-A
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
1

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95 %
Storage relative humidity (H-H)
5 - 95 %

Technical details

Certification
CE, FCC, IC, RCM

Security

Service Set Identifier (SSID) features
Hidden SSID
Number of SSID supported
16

Antenna

Antenna features
Integrated antenna

Receiver

Receiver sensitivity
802.11ac 80MHz:-60dBm @MCS9

Logistics data

Harmonized System (HS) code
85176990
Package volume
423 cm³

Product Details

Description The GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 30 GWN76xx series APs independently without needing separate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 450+ concurrent client devices per AP and dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point for medium wireless network deployments with medium-to-high user density. Features - 1.27Gbps wireless throughput and 2x Gigabit wireline ports - Dual-band 2x2:2 MU-MIMO with beam-forming technology - Support 802.3af Power-over-Ethernet (PoE) - Support 450+ concurrent WiFi client devices - Advanced QoS to ensure real-time performance of low-latency applications - Up to 165-meter coverage range - Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device - Embedded controller allows GWN7600 to auto-discover, auto-provision and manage up to 30 GWN7600s in a network

Files

Product Brochure

mmo_36961785_1496911411_4239_29142.pdf

PDF• 318 KB

GWN76XX Firmware Upgrade Guide

mmo_36961785_1496913340_5257_29135

PDF• 589.6 KB

GWN76XX Master/Slave Architecture Guide

mmo_36961785_1496913365_7929_20594

PDF• 945.4 KB

GWN76XX Standalone Guide

mmo_36961785_1496913377_2696_20466

PDF• 864.2 KB

GWN7600 Quick Installation Guide

mmo_36961785_1496913394_4667_20489

PDF• 16.4 MB

User manual

mmo_36961785_1496913341_7776_20607.pdf

PDF• 2.4 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Allware does not sell products. Prices shown are aggregated from verified merchants.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Offers (1)

Amazon logo

1 offer

From
AED
Infinity

Grandstream Networks Outdoor Long Range 802.11ac Wave-2 Wi-Fi Access Point (GWN7600LR)

Unavailable

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
HPE Instant On AP22

HPE Instant On AP22

AED
10500
9 offers
Ruijie Networks RG-RAP2200(E)

Ruijie Networks RG-RAP2200(E)

AED
17500
17 offers
-7%
Ubiquiti U6-Pro-US

Ubiquiti U6-Pro-US

AED
57990
AED
53630
16 offers
Ubiquiti UAP-AC PRO

Ubiquiti UAP-AC PRO

AED
14651
16 offers
-66%
TP-Link TL-WA801ND

TP-Link TL-WA801ND

AED
15999
AED
5300
15 offers
D-Link DAP-1665

D-Link DAP-1665

AED
11100
12 offers
TP-Link EAP245

TP-Link EAP245

AED
24500
11 offers
TP-Link EAP610

TP-Link EAP610

AED
21500
11 offers
-21%
TP-Link EAP110OUTDOOR

TP-Link EAP110OUTDOOR

AED
15500
AED
12100
9 offers
<1%
TP-Link EAP115

TP-Link EAP115

AED
12710
AED
12700
8 offers

More from Grandstream Networks

See all
Grandstream Networks GWN7806P 48-ports

Grandstream Networks GWN7806P 48-ports

AED
1 91700
3 offers
Grandstream Networks GWN 7802P 8-ports

Grandstream Networks GWN 7802P 8-ports

AED
87800
1 offer
Grandstream Networks GWN7052F - WiFi5

Grandstream Networks GWN7052F - WiFi5

AED
28000
1 offer
Grandstream Networks GUV3100

Grandstream Networks GUV3100

Unavailable
1 offer
Grandstream Networks GWN7710R

Grandstream Networks GWN7710R

AED
46550
1 offer
Grandstream Networks GWN7001 1Gbps

Grandstream Networks GWN7001 1Gbps

AED
28898
1 offer
Grandstream Networks GWN7813P 24-Ports

Grandstream Networks GWN7813P 24-Ports

AED
1 92589
1 offer
Grandstream Networks GWN7700P 5-ports

Grandstream Networks GWN7700P 5-ports

AED
26500
1 offer
-47%

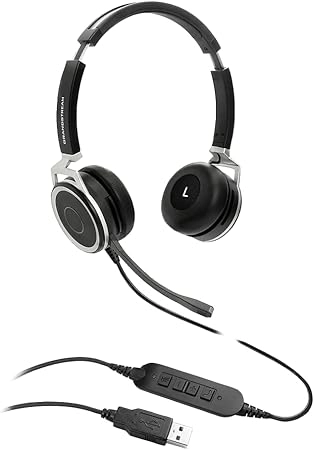

Grandstream Networks GUV3005 Wired Headset
