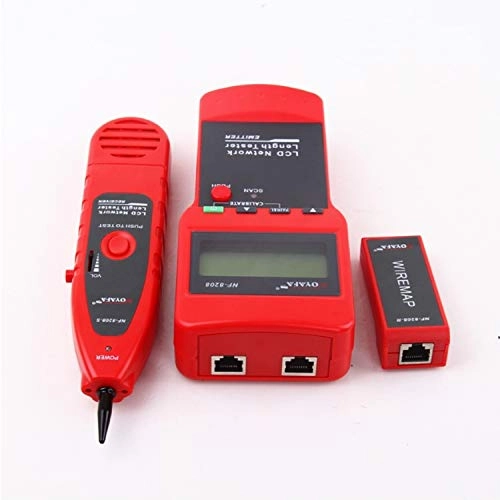

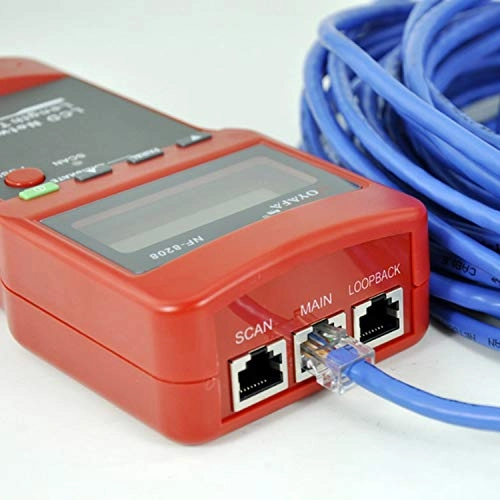

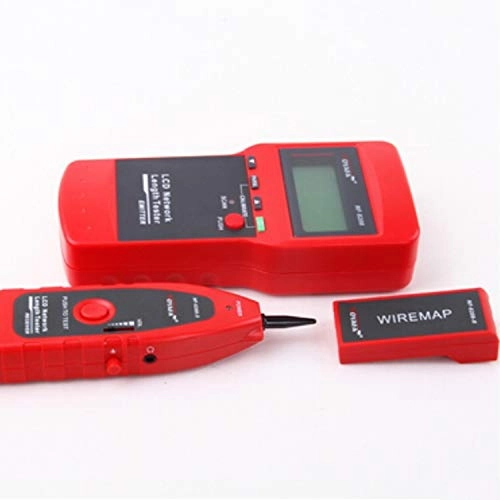

GLSgjmc NF-8208 - RJ45 RJ11

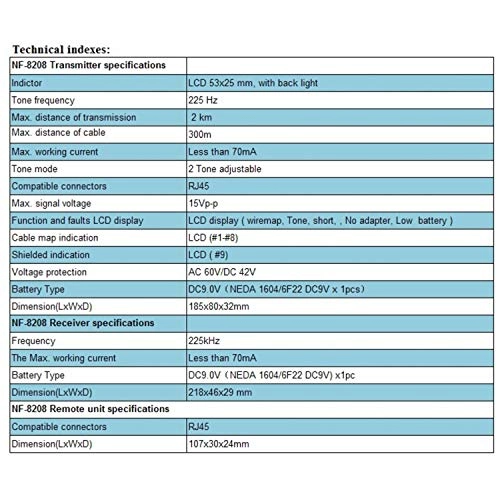

Specifications: Model: NF-8208 Material: Plastic Main Function: Test Track and Measure Length of Network Cable Display: LCD with Backlight Tracking Type: RJ45 ,RJ11 Testing type: RJ45, RJ11 Power: 9V Alkaline battery (Not Included) NF-8208 Transmitter specifications: Indicator: LCD 53x25 mm, with back light Tone frequency: 225 Hz Max. distance of transmission: 2 km Max. distance of cable map: 1000m Max. working current: Less than 70mA Tone mode: 2 Tone adjustable Compatible connectors: RJ45 Max. signal voltage: 15Vp-p Function and faults LCD display: LCD display (wire map, Tone, short, , No adapter, Low battery) Cable map indication: LCD (#1-#8) Shielded indication: LCD ( #9) Voltage protection: AC 60V/DC 42V Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pcs) (Not Included) Dimension(LxWxD): 185x80x32mm NF-8208 Receiver specifications: Frequency: 225kHz The Max. working current: Less than 70mA Ear jack: 1 LED illumination: 2 Battery Type: DC9.0V(NEDA 1604/6F22 DC9V) x1pc (Not Included) Dimension(LxWxD): 218x46x29 mm NF-8208 Remote unit specifications: Compatible connectors: RJ45 Dimension(LxWxD): 107x30x24mm Package Included: 1 x Transmitter 1 x Receiver 1 x Remote Adapter
