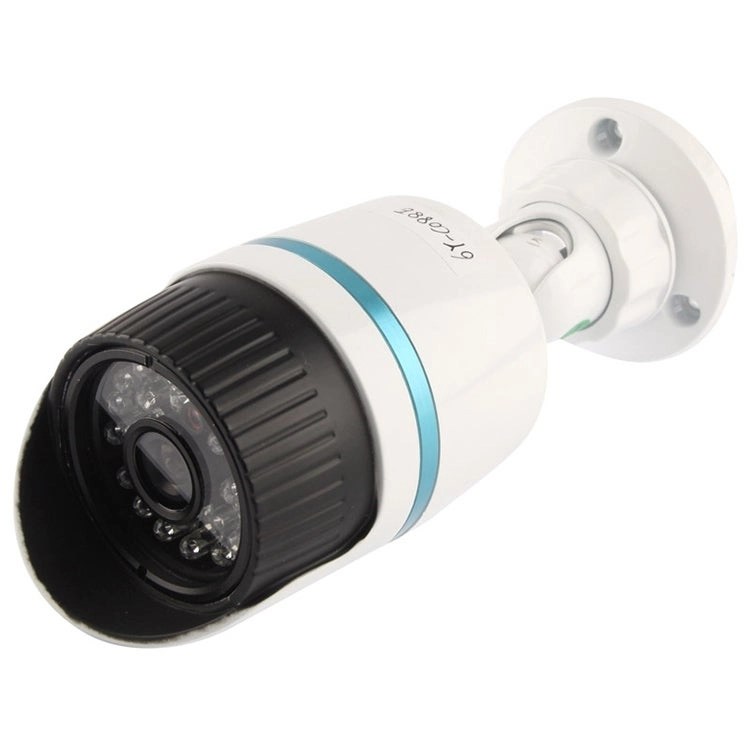

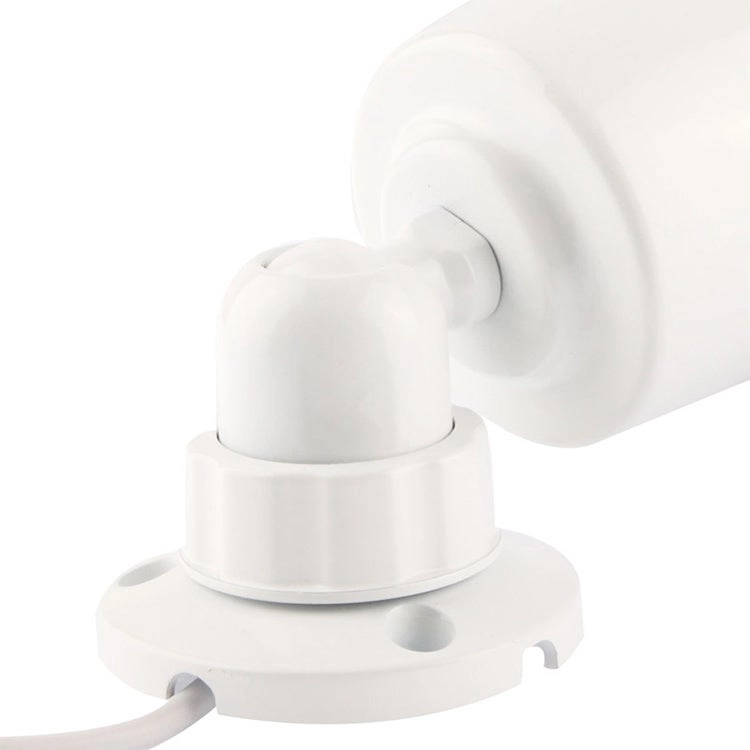

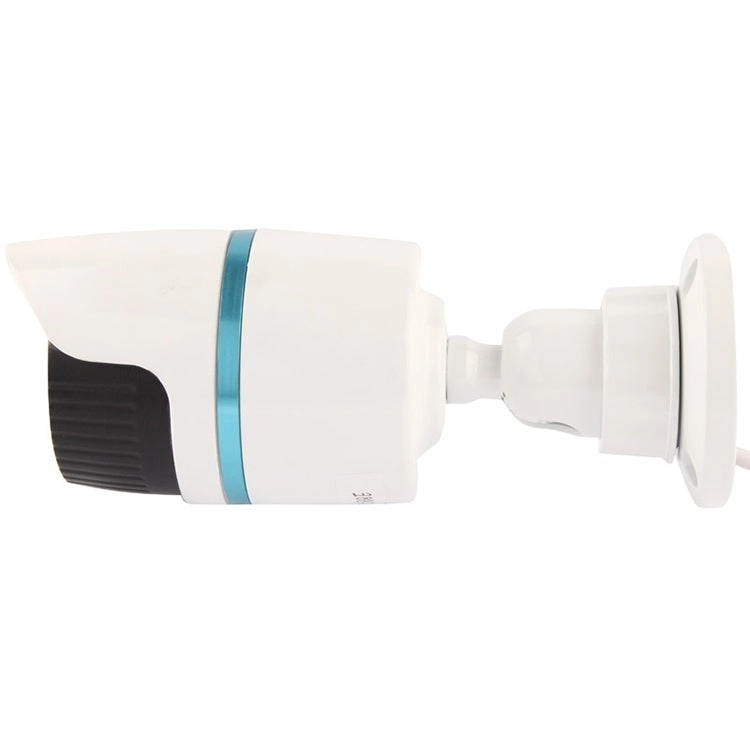

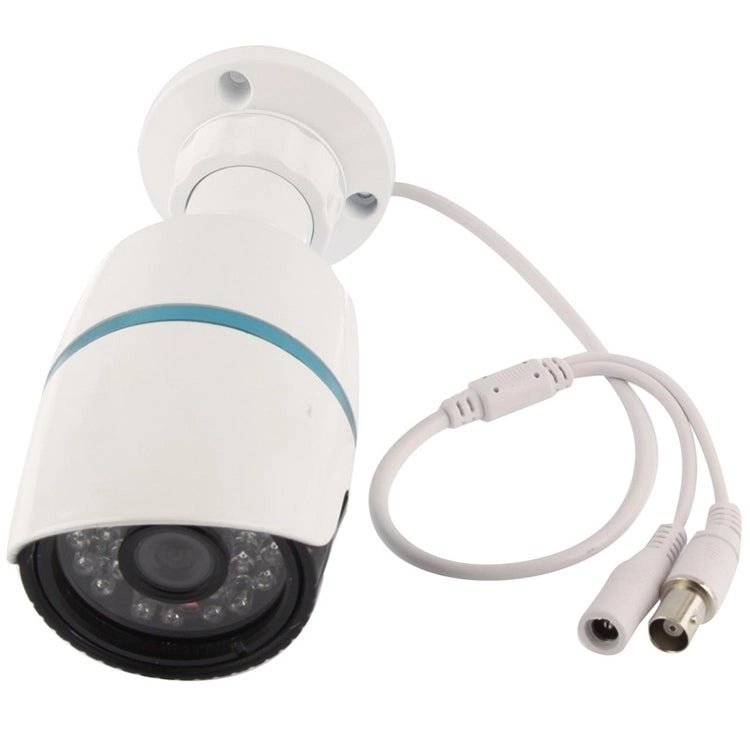

Generic 6Y-C088E

Video: 1. Imaging Sensor: 1/3 inch SN Super HADII CCD 2. Scanning System: 2:1 Interlace 3. Total Pixel: PAL: 512H x 582V, NTSC: 512H x 492V 4. Horizontal Resolution: 138 1000TVL 5. Illumination: 0lux IR ON 6. S/N Ration: Above or equal 52dB 7. Video Output: CVBS: 1.0Vp-p/75ohm Composite 8. Correction: 0.45 9. Frequency: H: 15.734KHz, V: 15.625KHz, V: HZ 10. Sync. System: Internal Synchronization 11. Day & Night: Auto Color to B/W 12. Electronic Shutter Speed: 1/50-1/10,000s Operational: 1. White Balance: ATW 2. BLC: AUTO 3. AGC: Auto/Manual Lens: 1. 24 IR LED 2. IR Distance: 25m 3. Lens Type: 8mm Fixed Lens (Standard) 4. Mount Type: CS Electrical: 1. Power Supply: DC 12V+/-5% 2. Power Consumption: Less or equal 6W Environmental: 1. Work Consumption: Less or equal 85%RH 2. Operation Temperature: -20-50 degree Physical: 1. Case Material: Aluminum Alloy (Water Resistant IP66) 2. Camera Dimensions: Size: 170mm x 65mm x 65mm
