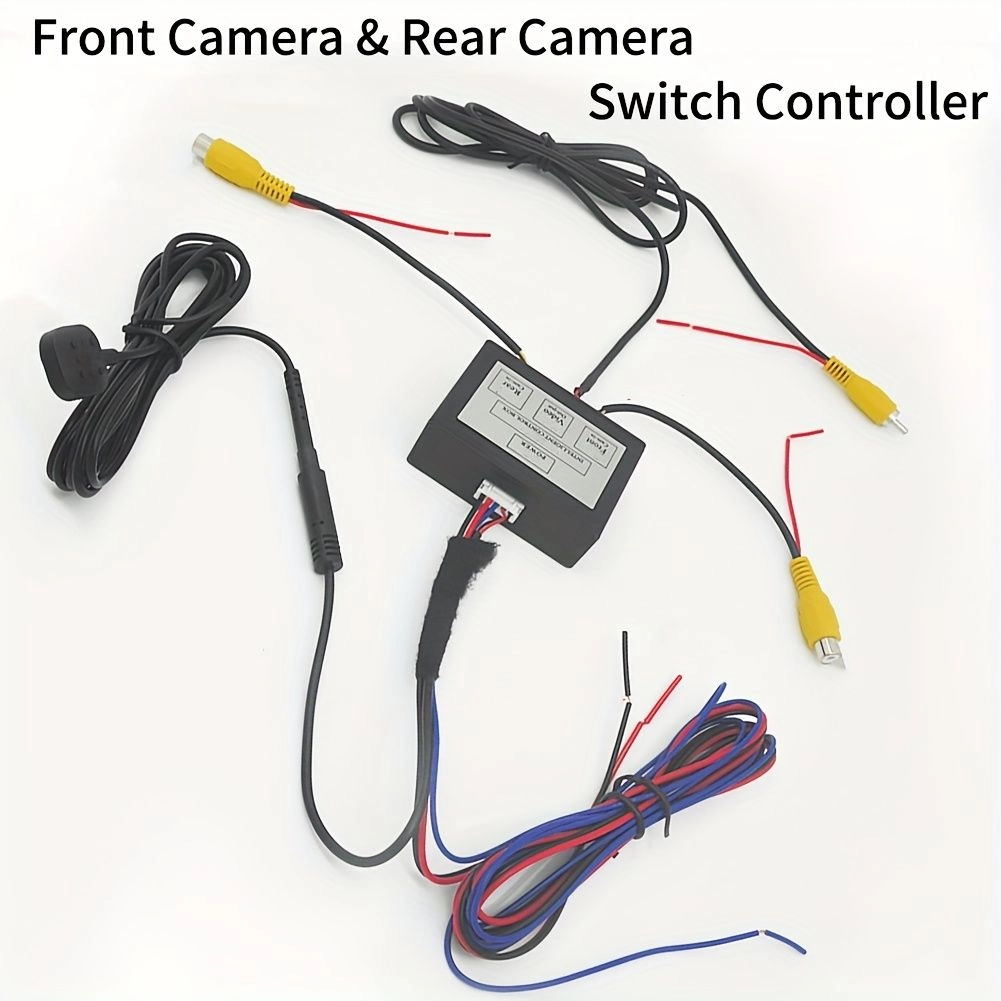

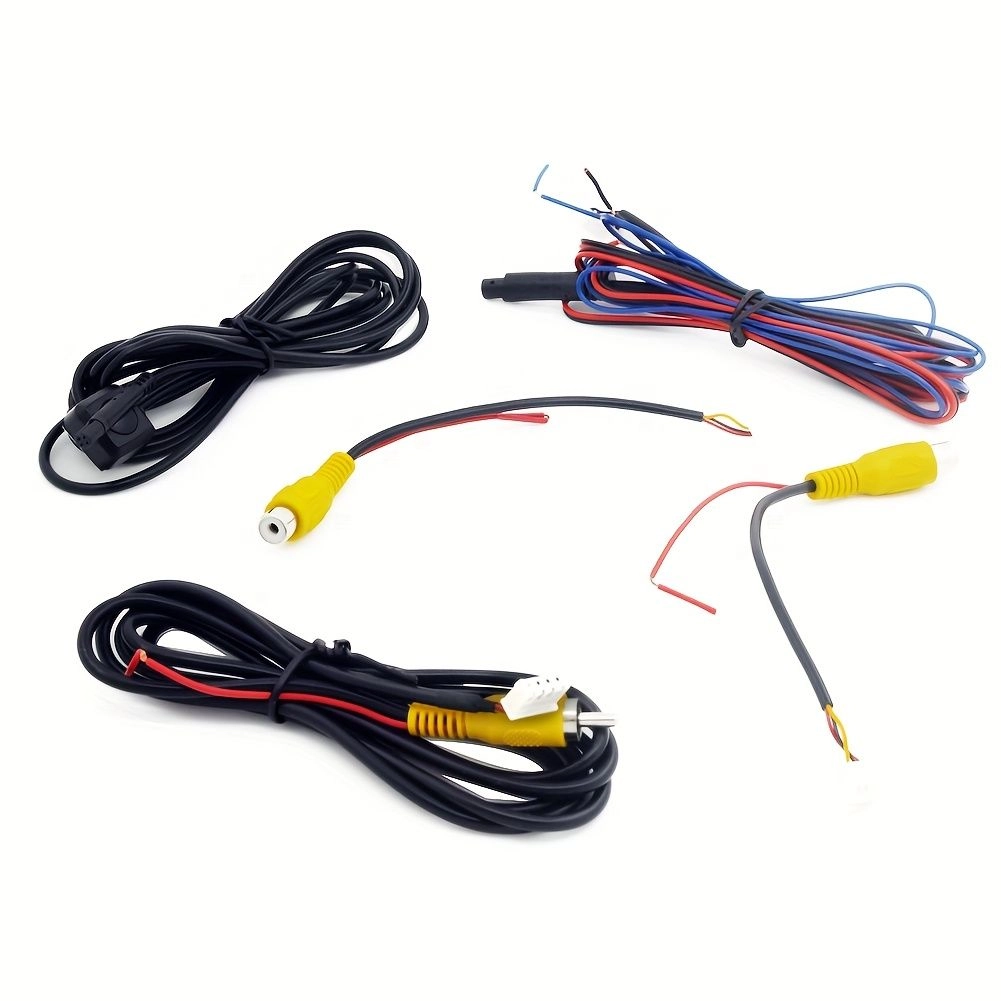

Generic 2 Way Reversing Camera Control Box - HD

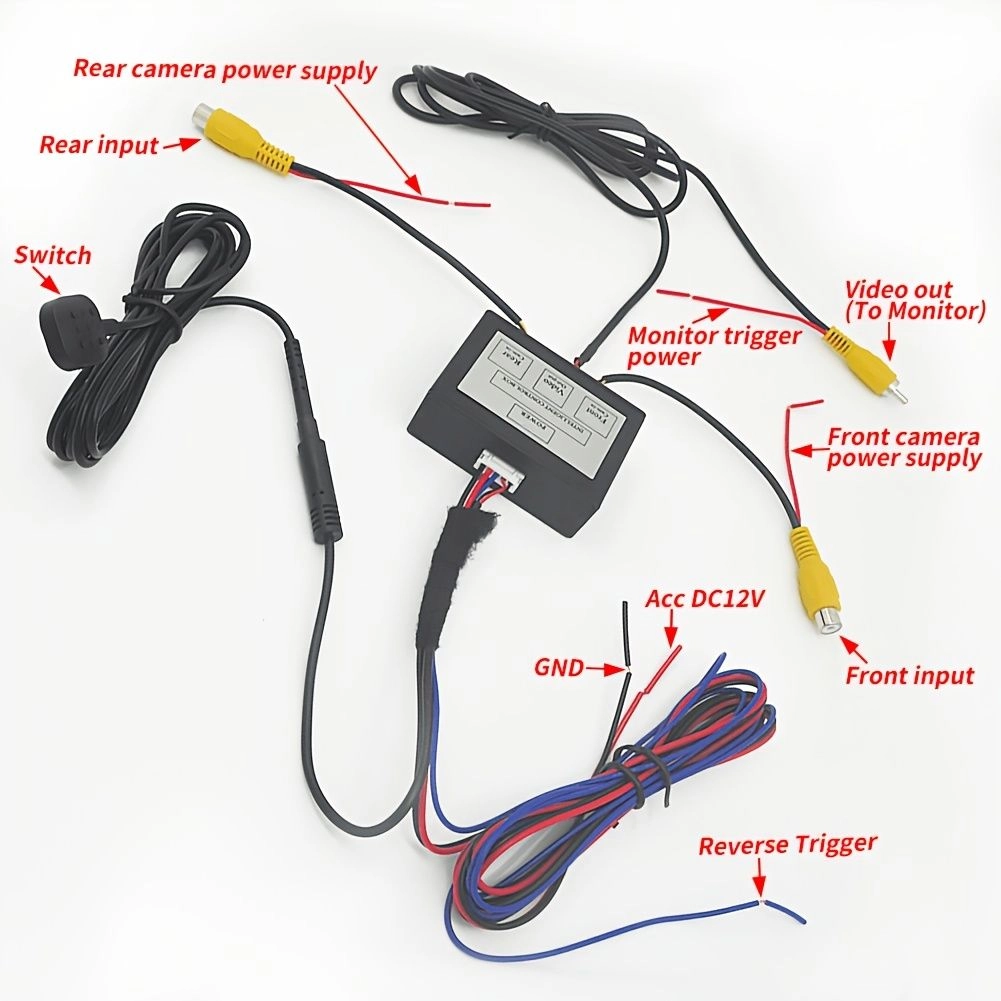

This 2-Way Reversing Camera Control Box allows you to instantly switch between front and rear views on your display, providing enhanced visibility for trucks and cars. It supports one front and one rear camera, and is compatible with systems using two AHD cameras or two CVBS cameras—mixing the two types is not supported. The control unit delivers HD video output for a clear, reliable picture. Installation is rated as high difficulty, requiring advanced electrical knowledge. Comprehensive graphic and video manuals are provided; please review them carefully before proceeding. The unit operates without a battery and should be hardwired to the vehicle’s ACC power supply using the included room electrical/hard wiring method. The operating voltage is ≤36V. When the ACC is activated, the front camera display turns on automatically and shuts off after 8 seconds. Selecting reverse gear activates the rear view, and once you shift out of reverse, the front view appears for 15 seconds before turning off automatically. A manual control button lets you toggle the front camera on or off when driving slowly. The system priority follows: rear view over front view. Key wiring steps include connecting the control box's red power wire (labeled “POWER”) to the ACC supply, not the battery. The red feed for the front camera must link to the “Front Cam-in” positive terminal to extend camera life, and the positive rear camera wire should connect to the “Rear Cam-in” or the reverse light’s power source. A reverse trigger (blue wire) from the control box must be linked to the reverse light for automatic activation. This control box is universally applicable and made from durable PE material. It is recommended to have an expert handle the installation to ensure reliable, long-term performance. Transform your vehicle’s camera system with rapid view switching designed for ease and safety.
