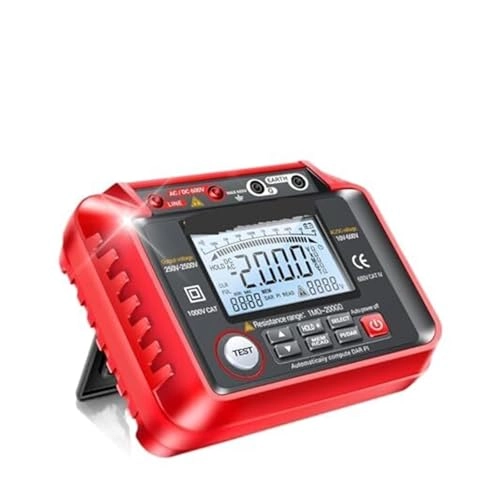

FVGshshDH Digital Multimeter Resistance Meter

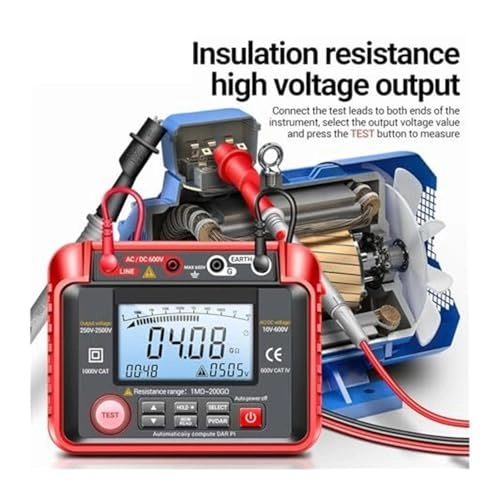

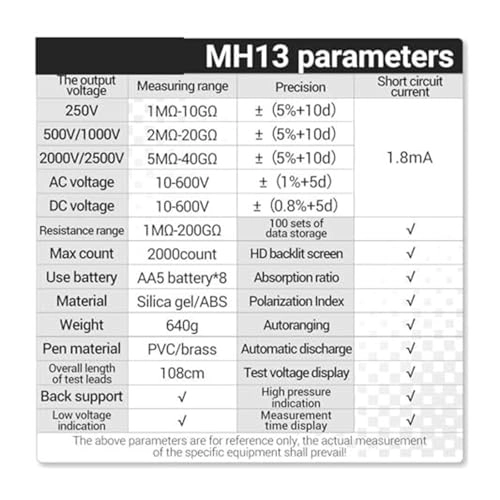

The Digital Multimeter Resistance Meter is designed for accurate measurement of insulation resistance in various high voltage applications. This versatile tool is for testing insulation resistance in large generators, high voltage motors, power capacitors, and more. With a broad testing voltage range of 10 600V, it meets the needs of both professionals and hobbyists alike. Featuring a measuring range of 1MΩ to 200GΩ, this ohm tester provides detailed insights into insulation conditions. It operates effectively within a temperature range of 0 to 40℃ and offers a maximum count of 2000 for reliable readings. Please note that this device requires 8 AA batteries (not included) to function. Enhance your testing capabilities with this essential multimeter tool. Specifications (as provided) Technical Parameters The output voltage Measuring range Precision Short circuit current 250V 1M 10G ±(5%+10d) 1.8 mA 500V 1000V 2M 20G ±(5%+10d) 2000V 2500V 5M 40G ±(5%+10d) ACvoltage 10 600V ±(1%+5d) DCvoltage 10 600V ±(0.8%+5d) Resistance range 1M 200G 100 sets ofdata storage MaxCount 2000Counts HD backlit screen Usebattery AA5battery *8 (not including) Absorption ratio Material Silica gel ABS Polarization Index Weight 640 g Autoranging Pen material PVC brass Automatic discharge Overall length of test leads 108 cm Test voltage display Back support indication Lowvoltage indication Measurementtime display Package inclued (not including batteries) 1* Packing box 1* Resistance megohmmeter 1* Aligator clip 1* Storage bag 1* Instruction Manual 1* Test lead 1* Signal Shielding Wire
