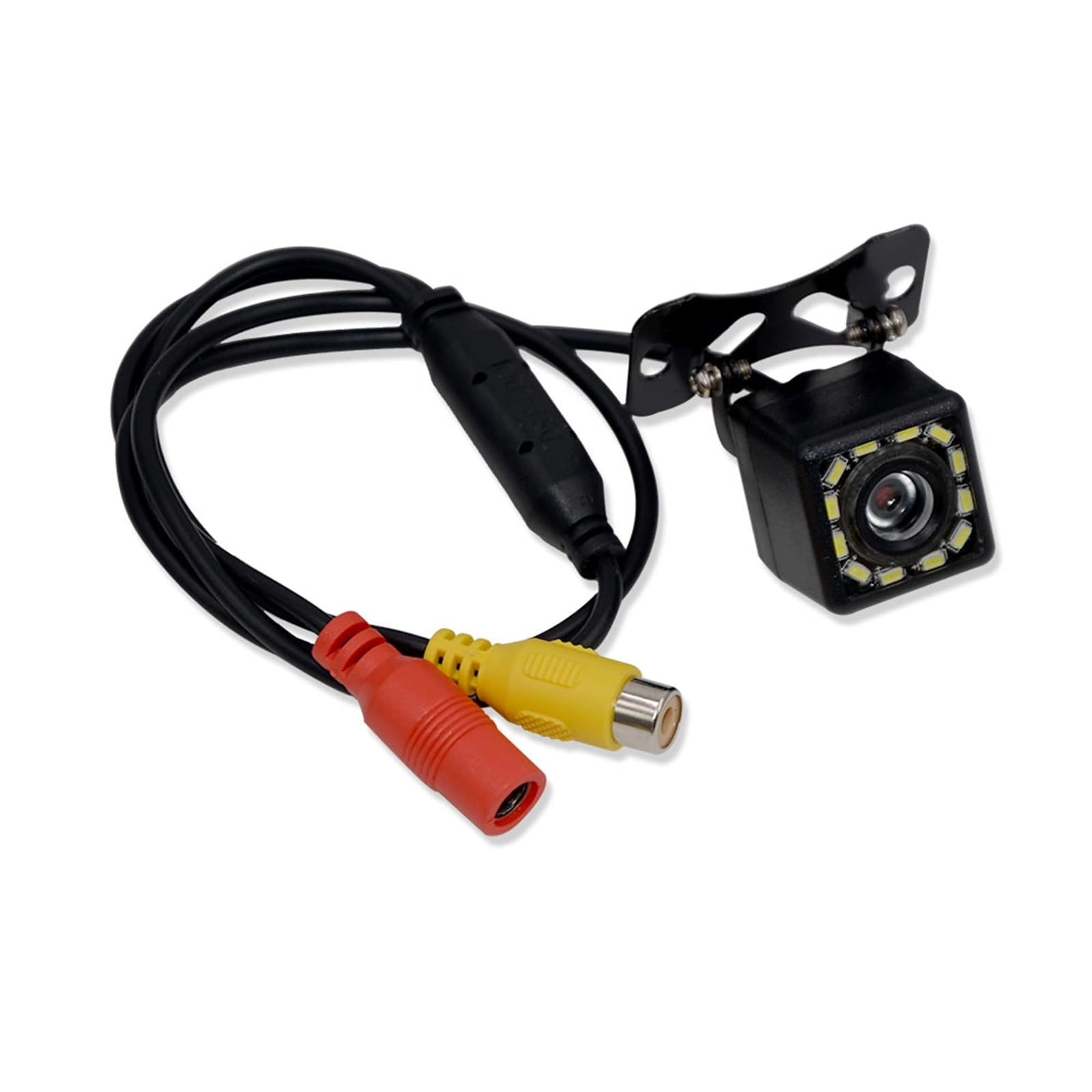

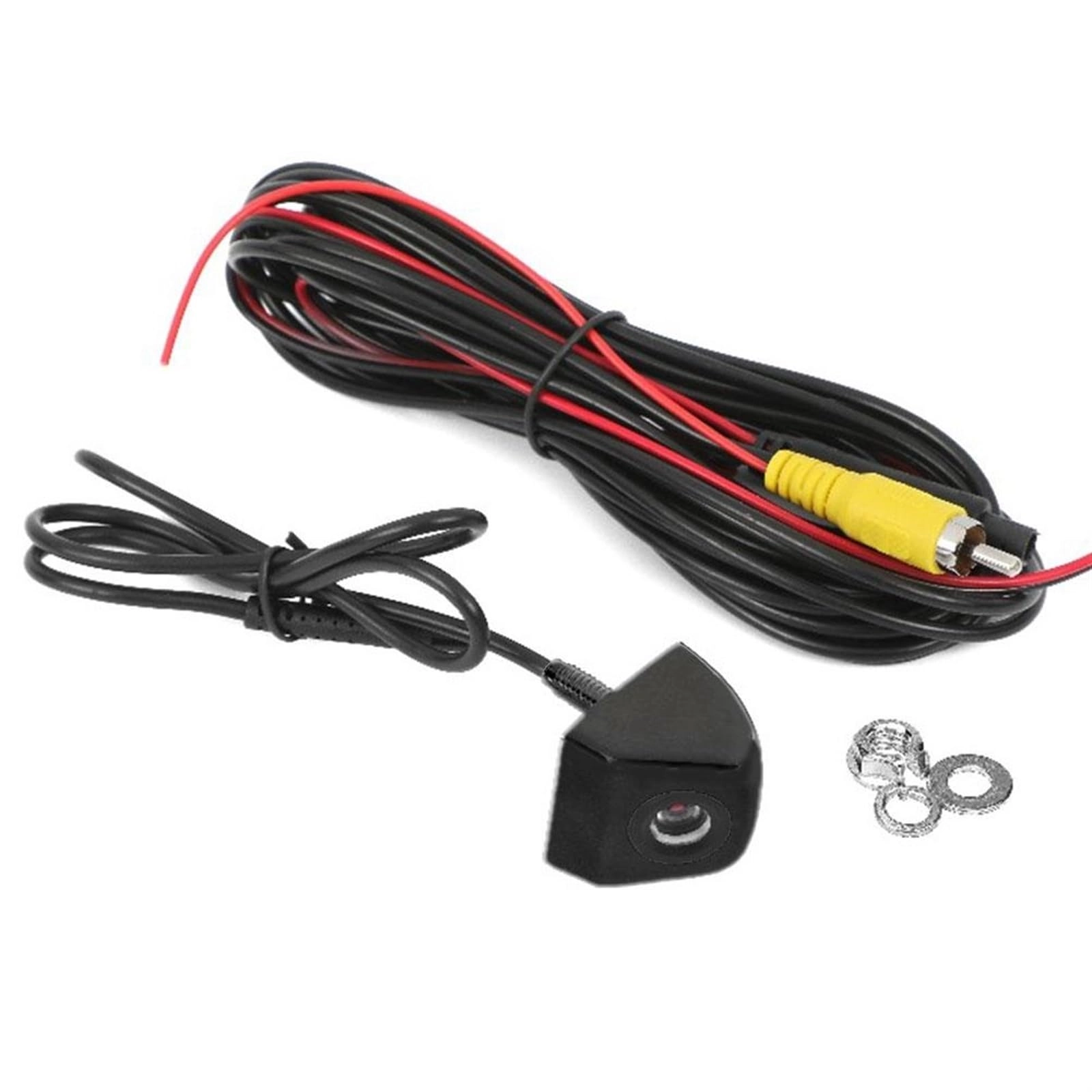

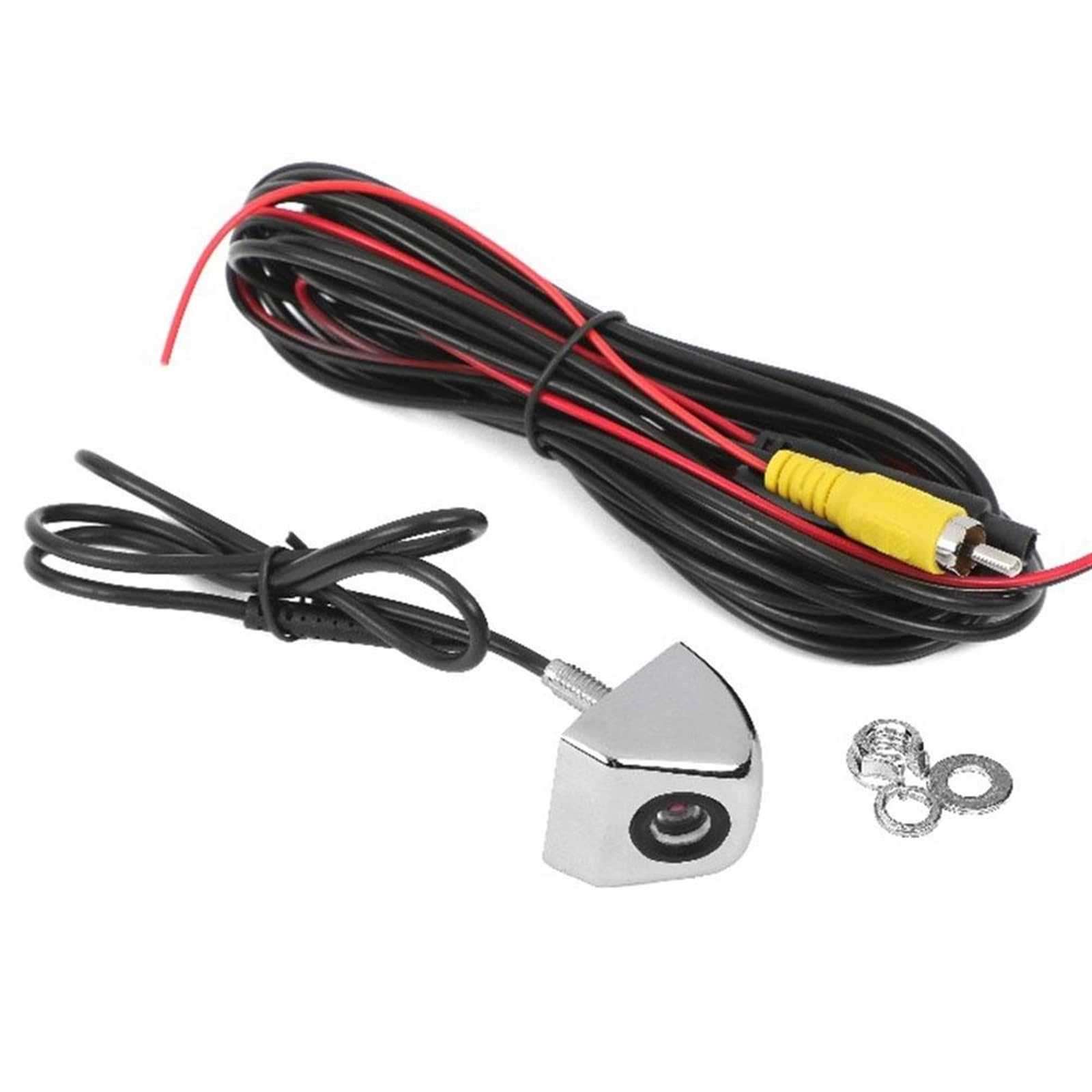

FUNFOB Reversing Camera - Night vision

Car CCD ccd Rearview Waterproof night 170 degree Wide Angle Luxur car rear view camera reversing backup camera specification: Image sensors: 1/4" color CCD TV system: NTSC and PAL Effective pixels: 728 x 512 Resolution: 480 TV lines Video output: 1.0Vp-p, 75 Electronic Shutter: 1/60(NTSC)-1/10000s, 1/50(PAL)-1/10000s Waterproof Grade: IPX 68 Operating Temperature: -20°C~+80°C RH95% Working power (DCV): 1 Current consumption: 90mA max The car rear view camera has a 170-degree wide-angle adjustable viewing angle, clear image and rear guide lines, which can eliminate blind spots, avoid children or pets around the car and obstacles you don't see when reversing Pay attention to prevent dangerous situations and ensure safe driving in reverse. The car reversing camera is specially designed to see blind spots that the rearview mirror cannot reach, which can help you see more while driving or parking, effectively avoiding a lot of troubles. Installation: 1. Install the camera in the license plate area of your car 2. Adjust the camera lens to your best position. 3. Connect the power wire (red and black) to your car's headlight power wires. 4. Connect the video output (yellow wire) to the display. packing list: 1 * CCD Car Rear View Camera 1 * 6m video cable 1 * power cable The waterproof and dustproof grade allows you to reverse smoothly even on rainy, snowy and muddy roads. The ultra-high-definition image presents the driver with a clear image, eliminates blind spots, and avoids obstacles when reversing. If you have any problem with this rear view camera. We have a professional customer service team and will try our best to help you.
