Fortinet FAP-231F

Name: Fortinet FAP-231F
Brand: Fortinet
SKU: 348324
Availability: InStock

Best offer

AED

1 209⁷⁹

Key Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate (2.4 GHz): 574Mbit/s
Maximum data transfer rate (5 GHz): 1201Mbit/s
Tunnel forwarding: Yes
Number of SSID supported: 16
Antenna gain level (max): 5.5dBi
Maximum data transfer rate: 1201Mbit/s
Placement: Ceiling, Wall
Frequency band: 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850GHz
Antenna type: Internal
Channel bandwidth: 40MHz
MIMO type: Multi User MIMO
Ethernet LAN data rates: 10, 100Mbit/s
USB 2.0 ports quantity: 1

Specifications

Features

Antennas quantity

Security algorithms

EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3

MIMO

✓

Product colour

White

Antenna gain level (max)

5.50 dBi

Maximum data transfer rate

1201 Mbit/s

Placement

Ceiling, Wall

Frequency band

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850

Maximum data transfer rate (5 GHz)

1201 Mbit/s

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

5 GHz

✓

2.4 GHz

✓

Packaging data

Package weight

950 g

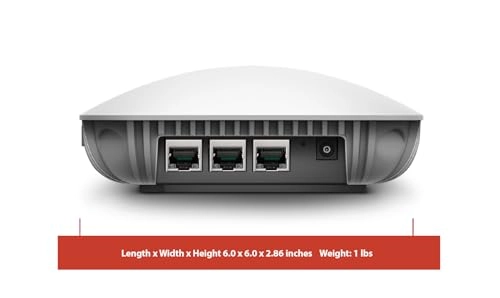

Weight & dimensions

Weight

543 g

Height

53 mm

Depth

153.20 mm

Width

153.20 mm

Management features

Tunnel forwarding

✓

Power

Power consumption (typical)

17 W

Design

Reset button

✓

LED indicators

Yes

Computer system

Antenna type

Internal

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Channel bandwidth

40 MHz

MIMO type

Multi User MIMO

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

RS-232 interface

✓

USB 2.0 ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

5 - 90 %

Technical details

Certification

CE, FCC, IC

Compliance certificates

RoHS

Security

Number of SSID supported

Logistics data

Harmonized System (HS) code

85176990

Radar

Modulation

1024-QAM, 256-QAM, 64-QAM, BPSK, QPSK

Product Details

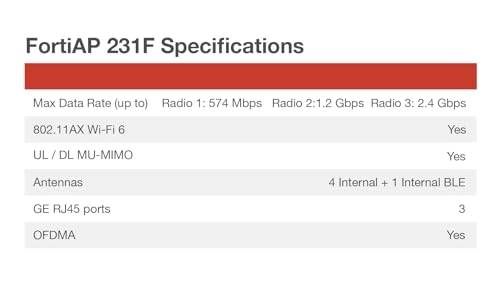

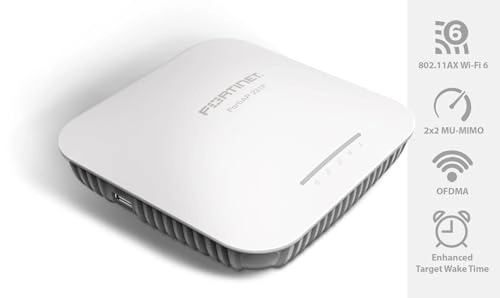

FortiAP 231F This enterprise class Wi-Fi 6 indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.
