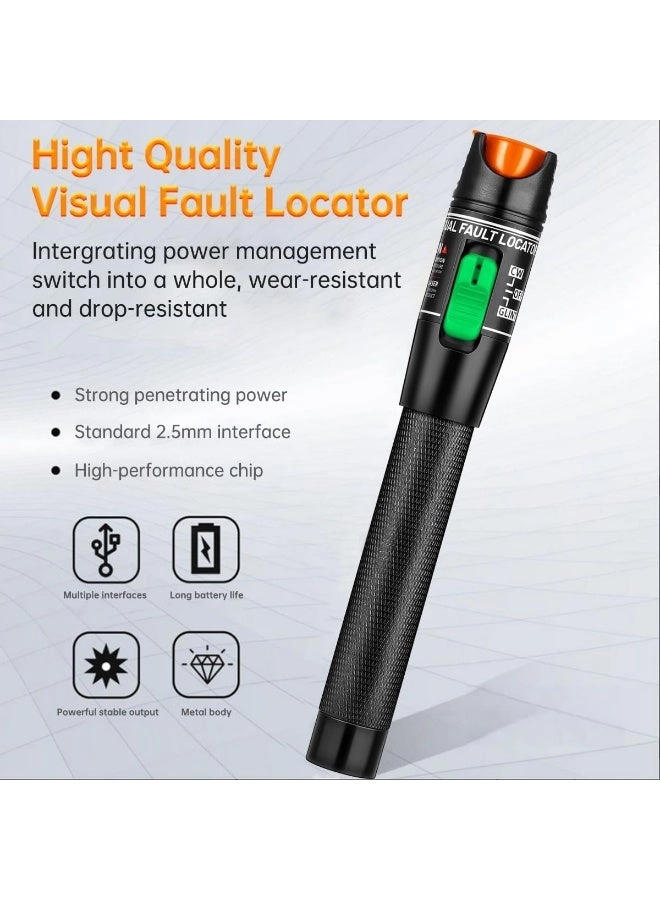

Visual fault locator is used for the measurement in single-mode or multi-mode fibers.

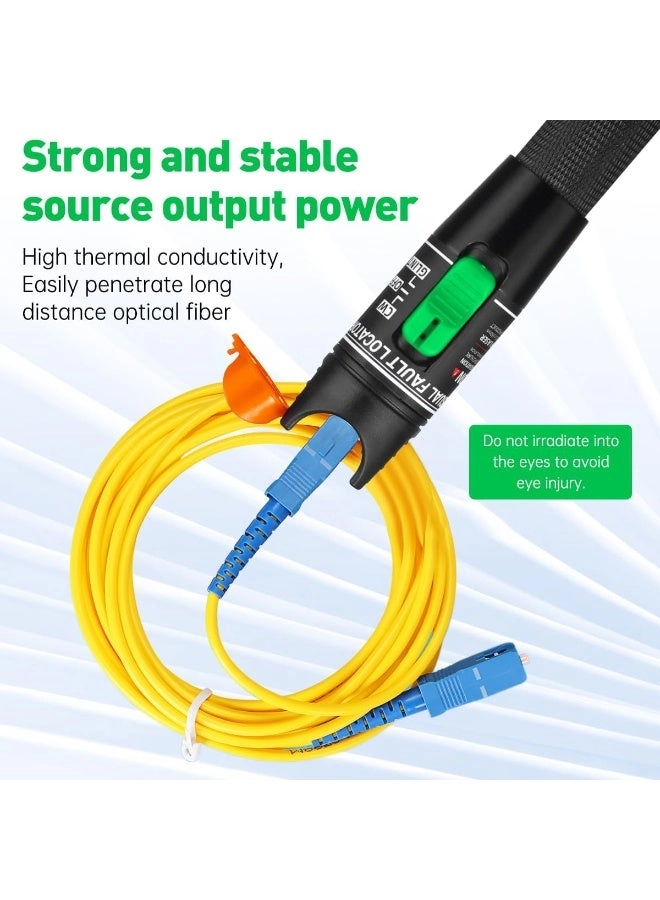

650nm Visual Fault Finder for fiber tracing, fiber routing and continuity checking.
It works very well to identify flaws in fiber and even to help cut and clean the fiber to prep it for quick connects.
It uses convenient AA battery. It locates fibers, finds faults, verifies continuity and polarity.
The 2.5 mm universal connector of the detector is designed for ST, SC, and FC compatibility, and can interfere with different circular and square optical cables. Test single-mode and multi-mode cables.

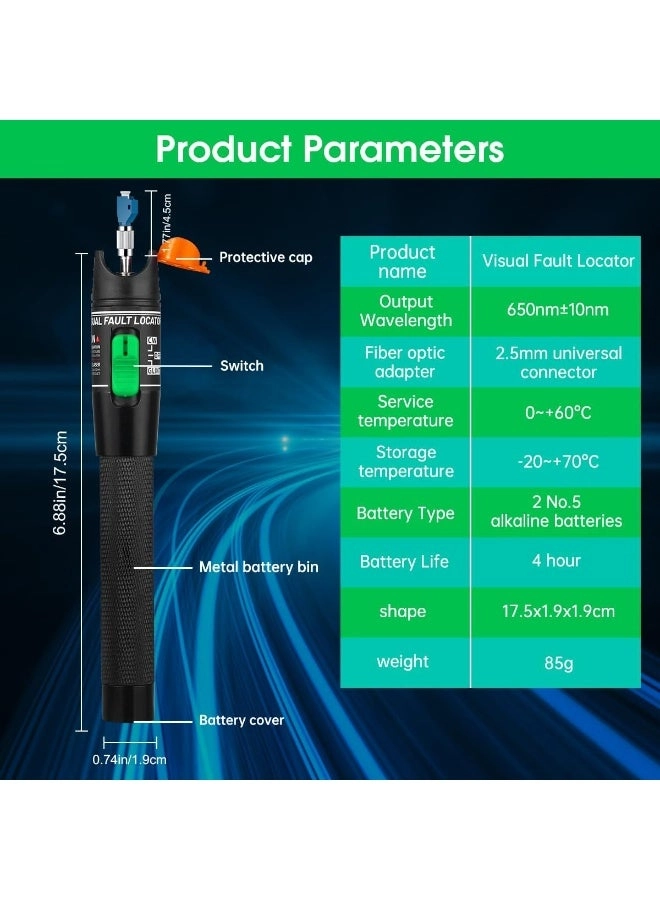

1.Specifications and main parameters of Fiber Optic Cable Tester Meter ：
- Material Body: Aluminum Alloy
- Wavelength: 650nm
- Dimensions: 6.88x0.78inch
- Weight: About 173g (w/o batteries)
- Battery type: Two 1.5V Batteries （not include）
- Operating temperature: 10-60°C
- Storage temperature: -40-85°C
- Output power: 30mW
- Adapter: 2.5 mm universal

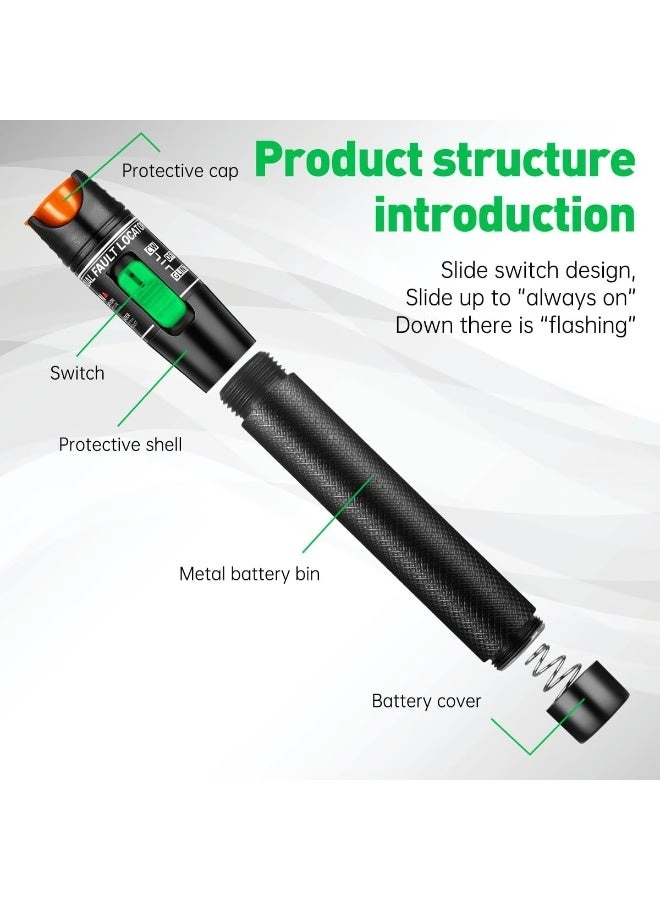

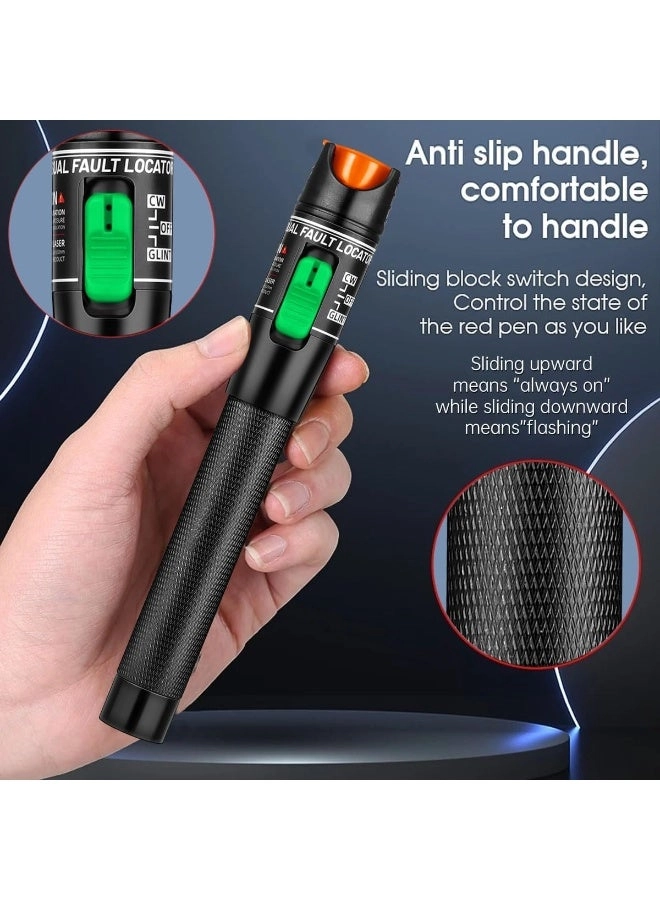

- Controls: On/off, continuous/flashing

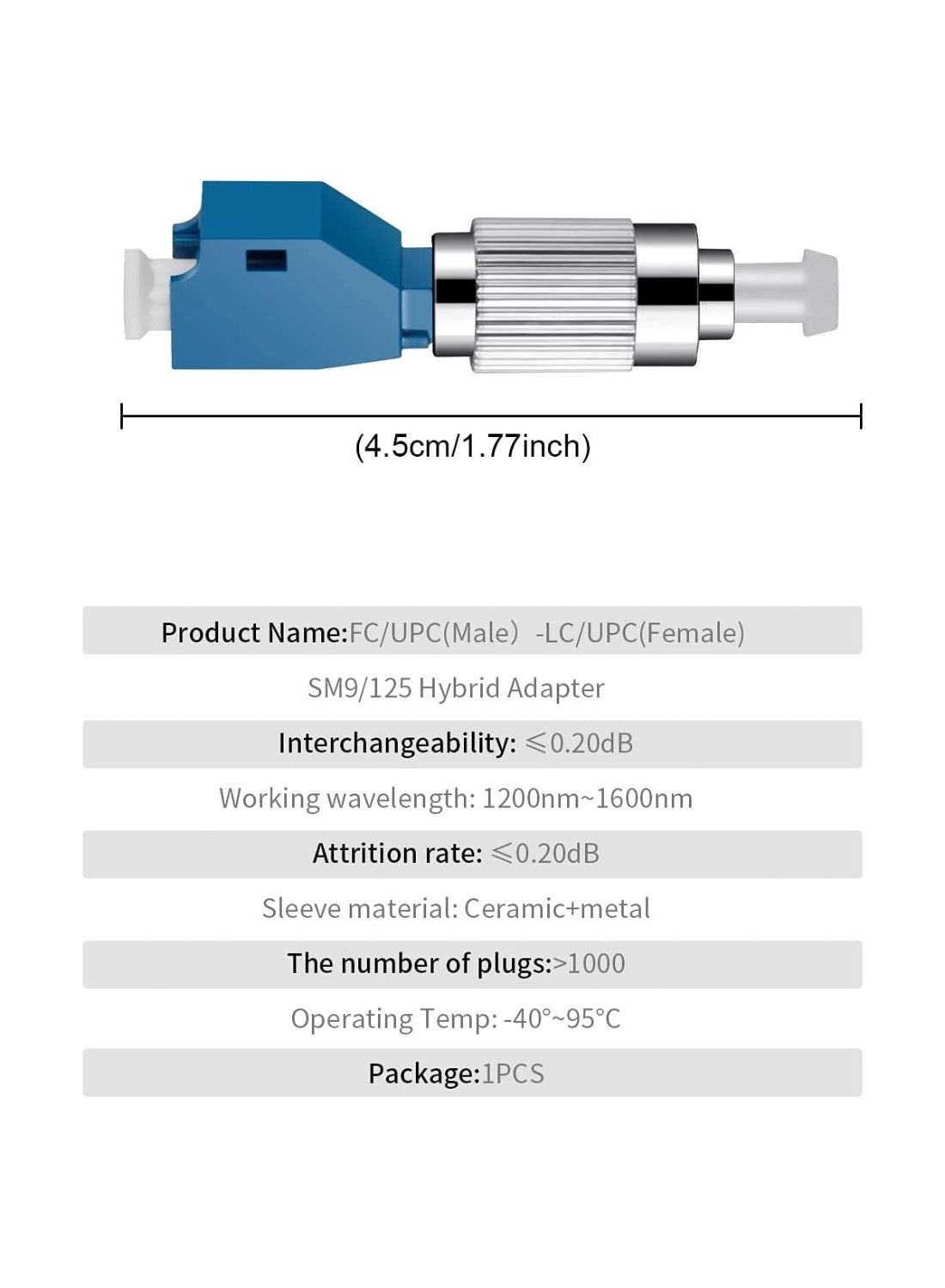

2. Specifications and main parameters of FC/UPC(Male）-LC/UPC(Female) ：
SM9/125 Hybrid Adapter
Interchangeability: ≤0.20dB
Working Wavelength: 1200nm~1600nm
Attrition Rate: ≤0.20dB
Sleeve Material: Ceramic+metal
The Number of Plugs:>1000
Operating Temp: -40°~95°C
3. One Set Included
1 x 30mW Visual Fault Fiber
1 x FC male to LC female adapter
1 x Instruction Manual
1 x Carrying Pouch
