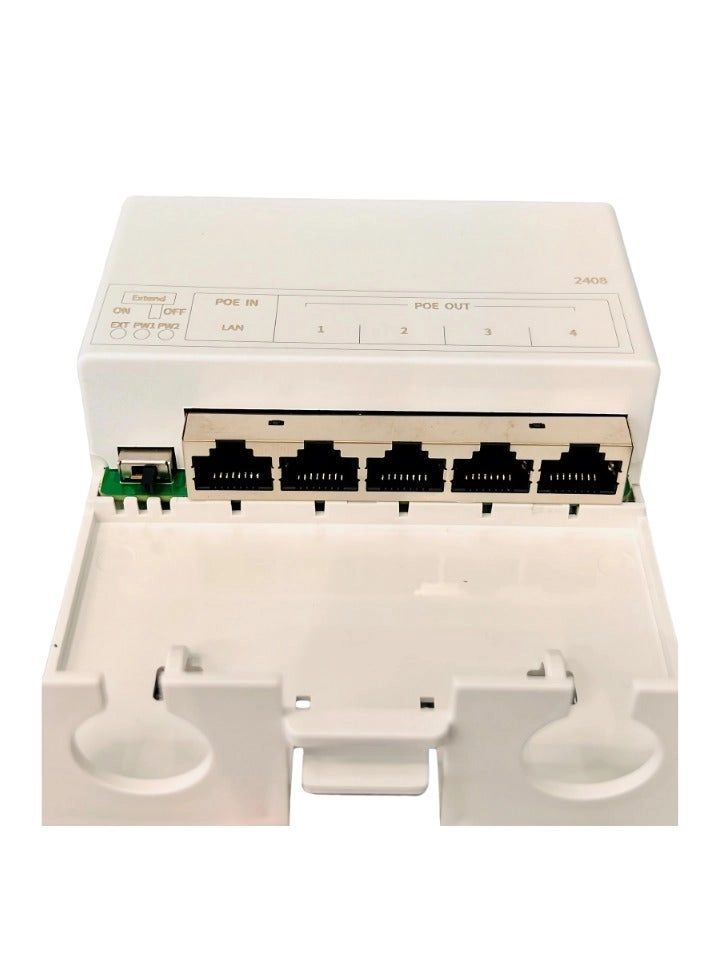

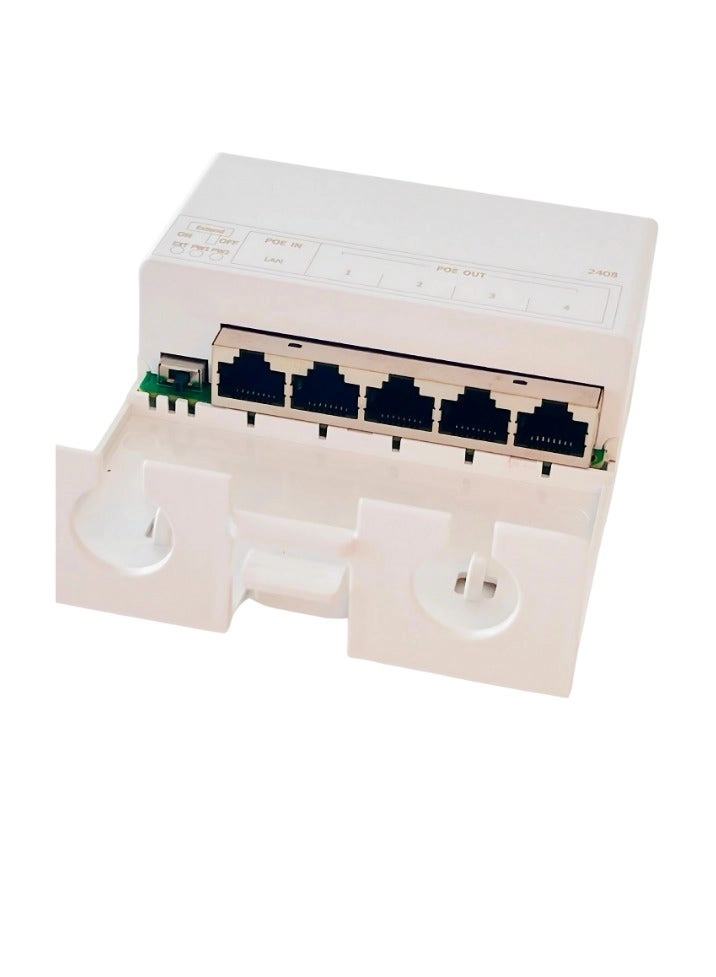

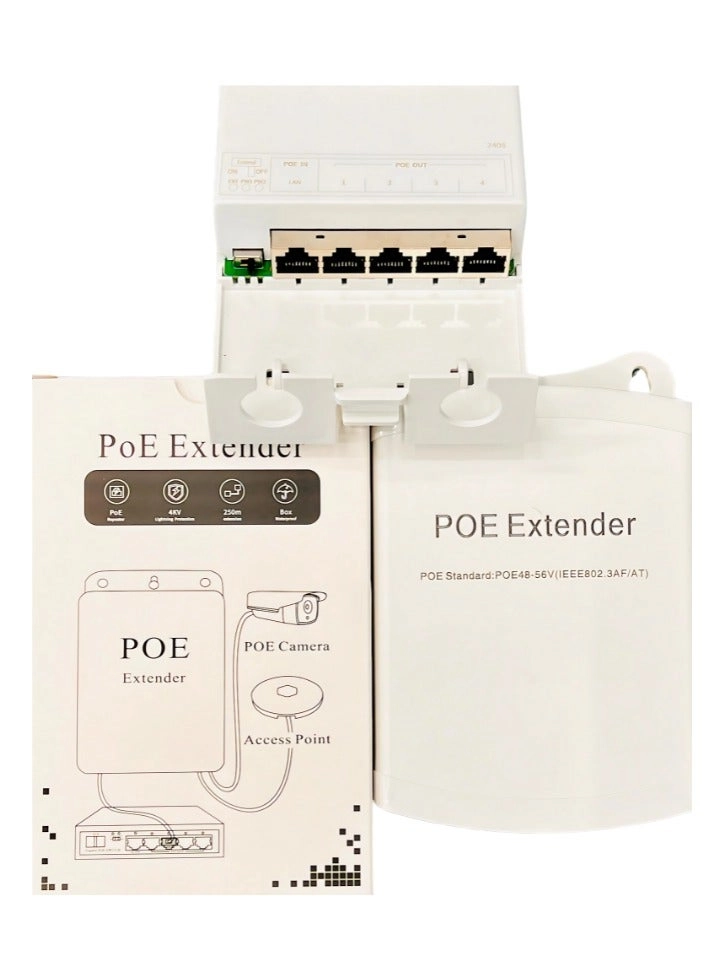

ESPANIA PoE EXTENDER - 48V 30W 4

PProduct Description: This product is our company's 1-to-4 100M Ethernet POE Extender which compatible with IEEE802.3af/at standard protocol equipment; the device can support POE input, when two POE inputs, it can relay 4 PD devices; - support Extended function, when the network cable signal is too weak, turn on the Extended mode and the POE port can support power supply + network transmission up to 250 meters away. Feature: •Built-in standard switching chip, following IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocols •Support Extended mode, the longest transmission is 250 meters. •Support IEEE802.3AF/AT protocol, compatible with power supply above 48V •The receiving line sequence of the uplink port is12+36- •Automatic MDI/MDI-X line sequence crossover * Automatic address learning and aging •Store/Forward and Frame Filtering •Full-duplex IEEE802.3 flow control, half-duplex backpressure operation •Supports data frame transmission with a frame length of 1522Byte •Plug and Play
