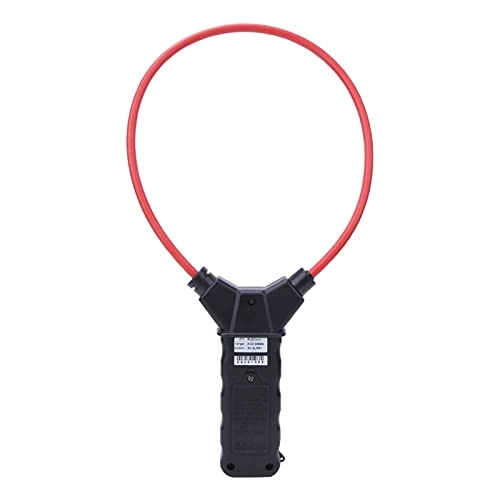

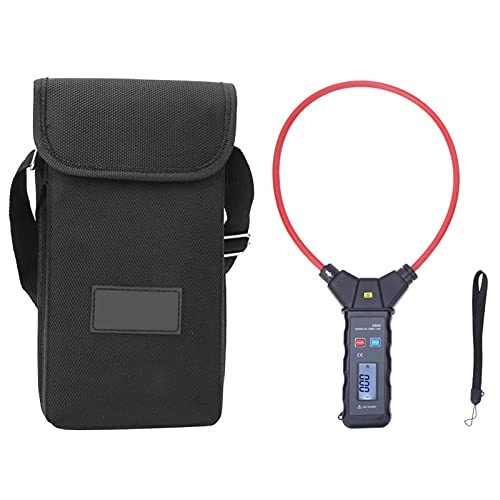

EMUKOEP Flexible Coil Collet Meter - AC 0.00A-999A 10mA

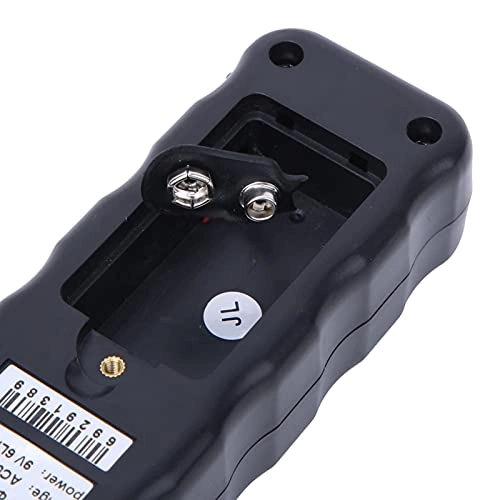

Material: ABS Power: Zinc Manganese Dioxide Dry Battery 6F22 9V (Battery Not Included) Test Method: Flexible CT: Output signal -time difference. By integrating the output voltage signal, the input can be restored in a real way. Coil Inner Diameter: Approx. 200mm / 7.9in Range: AC 0.00A-999A Resolution: AC 10mA Accuracy: Soil 2% ± 3dgt (The wire is in the center of the flexible coil, 23°C ± 2°C) Coil Length: Approx. 628 mm / 24.7 inches. Coil Thickness: Diameter: Approx. 7.5mm / 0.3" (tight environments and heavily packed locations etc. for the first time) Rated Frequency: 50HZ/60HZ (Auto identification) Instrument Size: Approx. 190x370x40mm / 7.5x14.6x1.6in LCD Size: Approx. 35x21.5mm / 1.4x0.8inch; Display Area: Approx. 32x15mm / 1.3x0.6in Backlight: Backlit for easy use in dim areas Electric Field Interference: No hysteresis effect, strong anti-interference ability Position Error: The wire to be tested should be in the center of the coil as flexible as possible. Do not approach opening and closing. The test error at opening is about twice or more. Sampling Rate: 2 times per sec Data Storage: 99 groups, the flashing display "FULL" signal shows that storage space is full. Peak Holding: Peak capture holding function; hold the POWER to avoid showing peak signal during testing Data Storage: data storage function: "DH" signal display Line Voltage: AC600V line test Overflow Screen: Range over function: "OL" signal display Battery Voltage: The battery voltage is low when the battery voltage drops to about 7.2V, this indicates that the battery has been replaced. Rated : About 8mA
