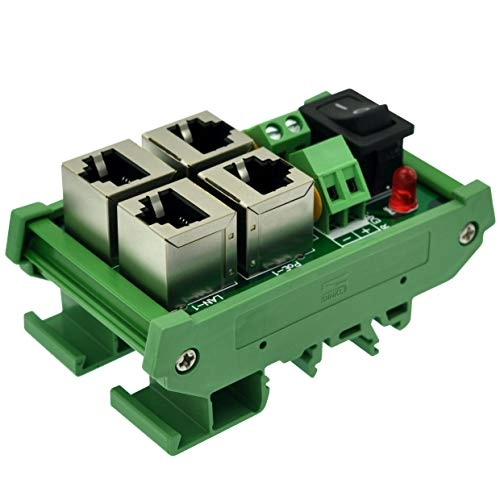

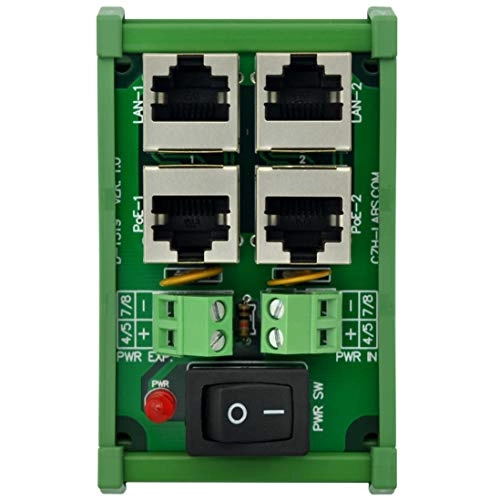

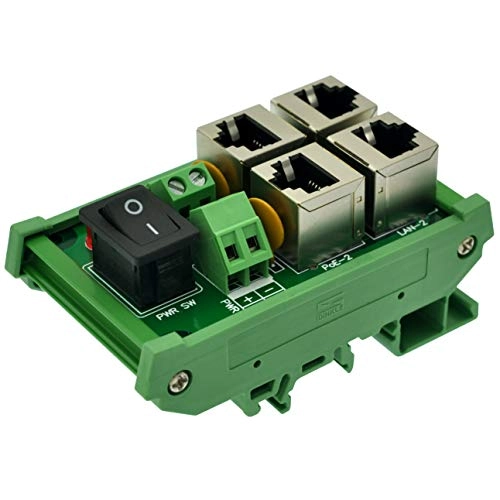

Electronics-Salon DIN Rail Mount Passive RJ45 PoE Power Injection Board - 12VDC - 60VDC 2 ports 10/100Mbps

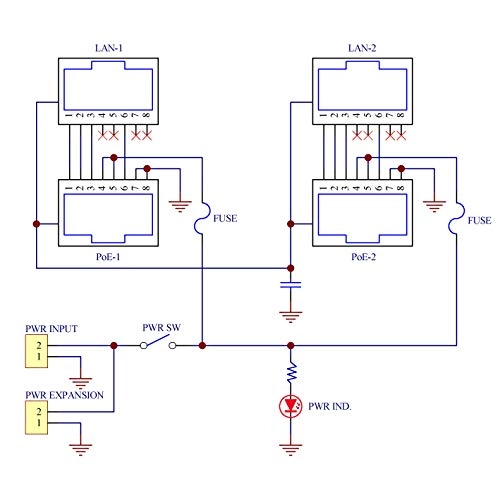

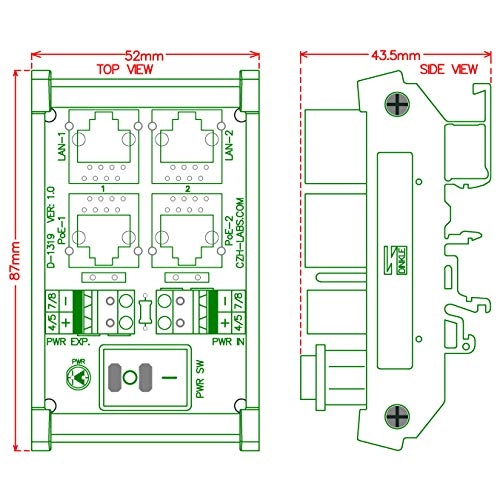

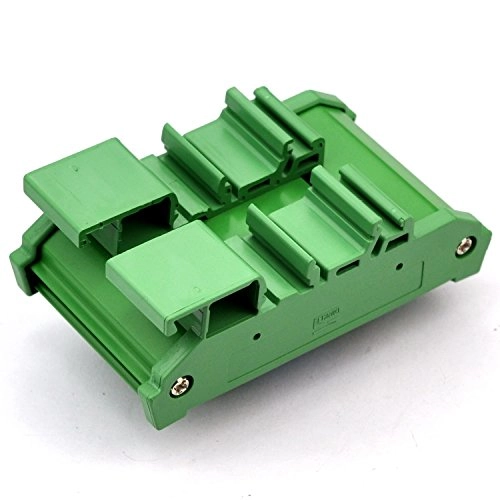

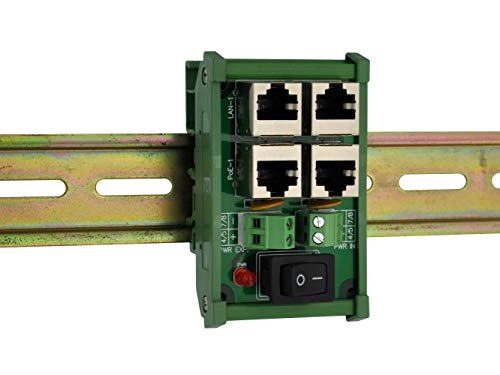

1, Simple Power up 2 Passive 10/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc. 2, Power Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp / 72V). Power Expansion Output terminal block can connect power supply to next device. 3, Switch On/Off to save electricity while not use, LED indication for switch On/Off status. 4, Specifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected; PoE-X Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -; Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current(per channel): 720mA. 5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use. Specifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp. Termianl Block Expansion Output: maximum current 10Amp. LIN-X Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected. PoE-X Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -. Data Rate: 10 / 100Mbps. PoE Power Output Maximum Current(per channel): 720mA. Terminal blocks: Pitch 5.0mm/0.197", Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
