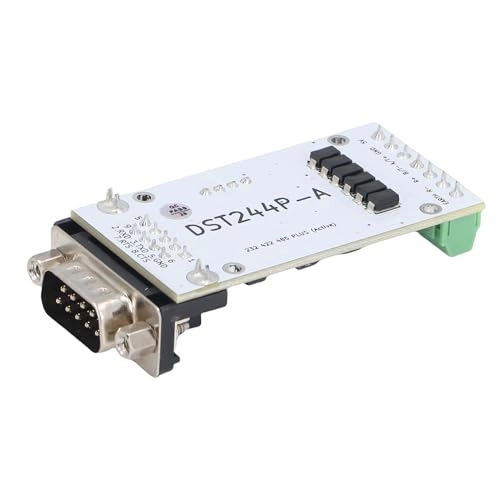

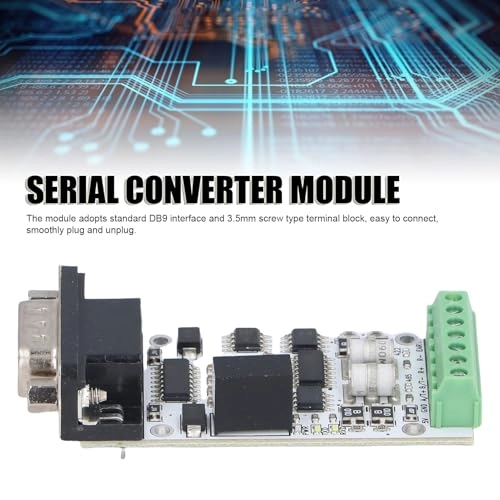

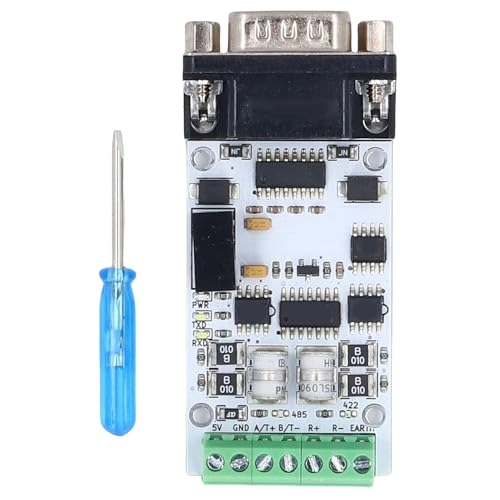

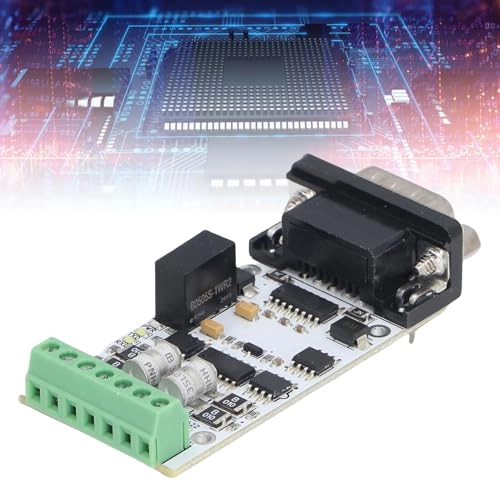

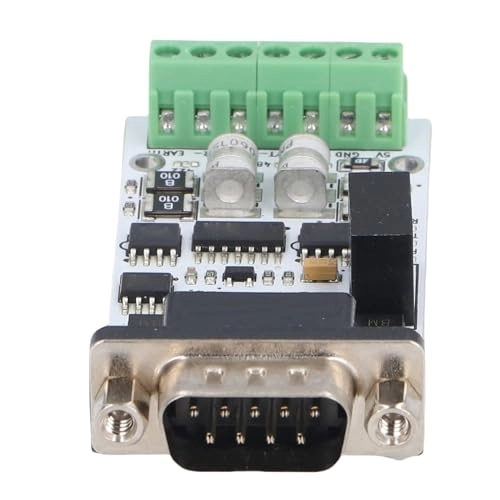

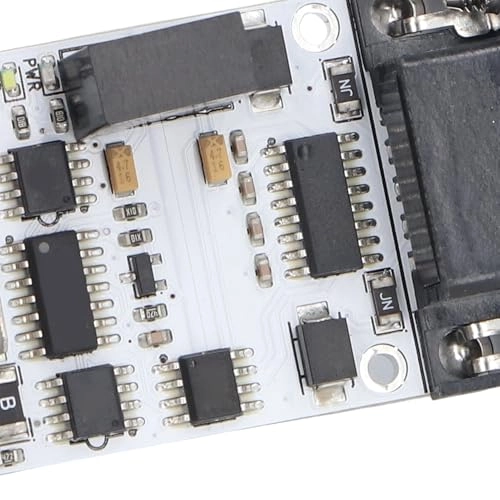

Eacam 232 to 422 485 Serial Converter Module - DB9 3.5mm screw type terminal block DC-DC power isolation

1. [BIDIRECTIONAL CONVERSION]: Easily convert between 232 signals and 485/422 signals for fast and stable communication. 2. [STANDARD INTERFACE]: Features a standard DB9 interface and 3.5mm screw type terminal block for easy connection. 3. [POWER ISOLATION]: Equipped with DC-DC power isolation for stable voltage and short circuit protection, no extra power supply needed. 4. [MAGNETIC COUPLING ISOLATION]: Provides protection against dangerous voltages and currents, preventing circuit damage. 5. [SIGNAL ISOLATION]: Ensures stable signal transfer with onboard digital isolator for optimal performance. Specification: Item Type: 232 to 422 485 Serial Converter Module Material: PCB Baud Rate Support Range: 422: ≤2Mbps (self receiving and transmitting test, refer to the baud rate range of the two devices during actual use) 485: ≤2Mbps (non standard value, refer to the baud rate range of the two devices during actual use) PWR Light: Green, power indicator light TXD Light: White, 485/422 data transmitting indicator light, data flowing direction: 232->422/485 RXD Light: White, 485/422 data receiving indicator light, data flowing direction: 422/485->232 How to Use: Complete the installation to use. packing list: 1 x 232 to 422 485 Serial Converter Module 1 x Screwdriver
