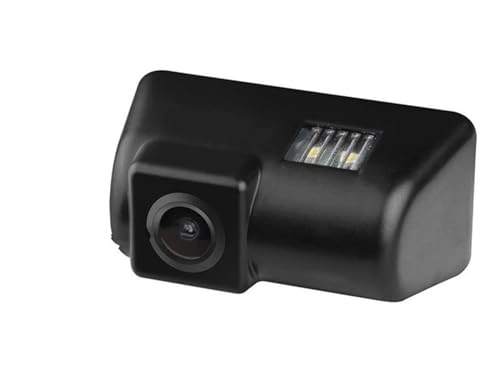

DZSQPM Reversing Camera - Night vision Wireless 420 TV Lines

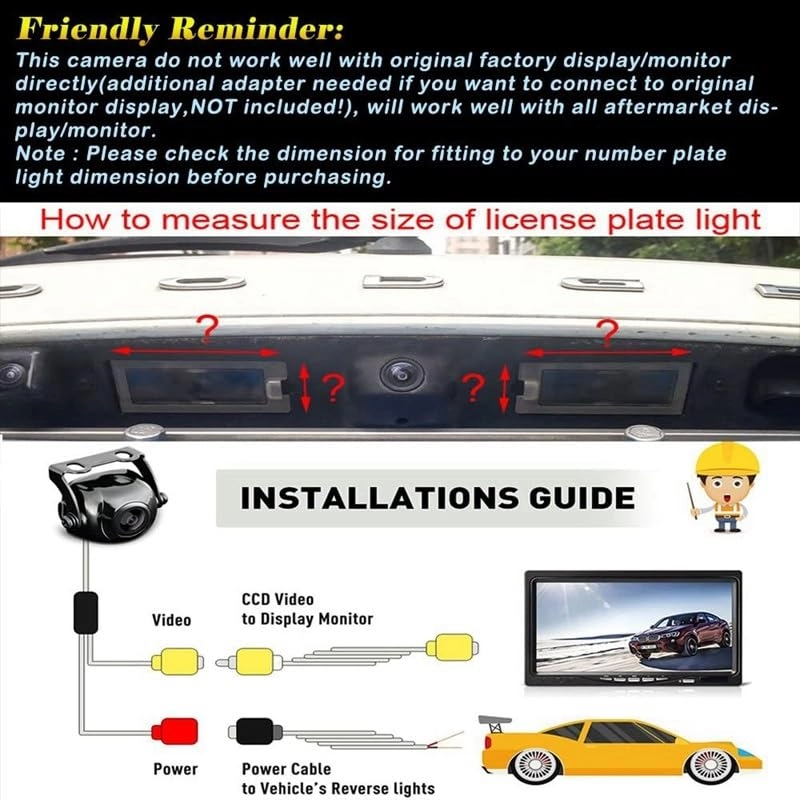

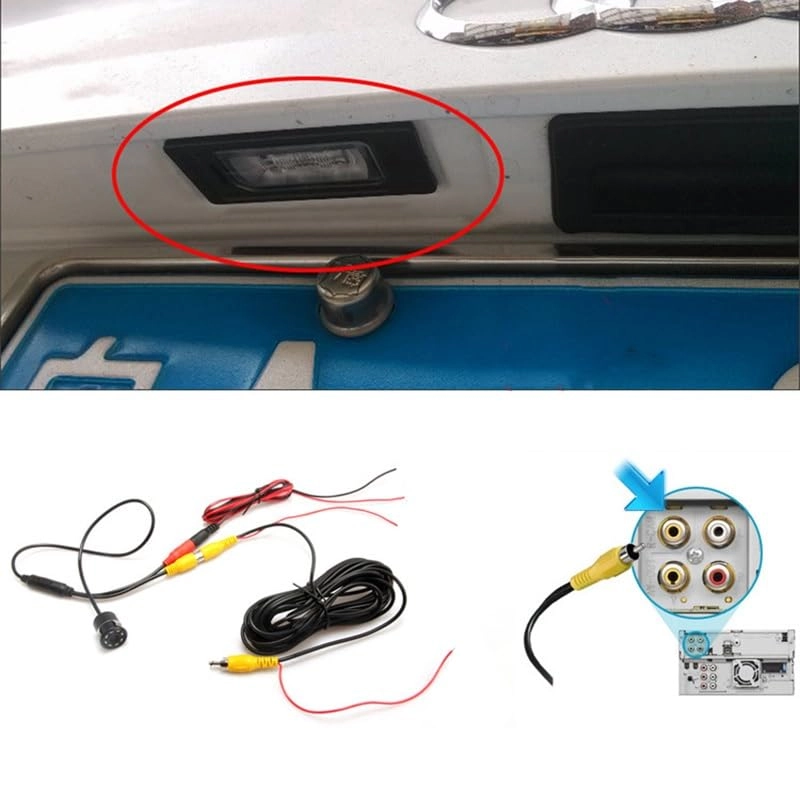

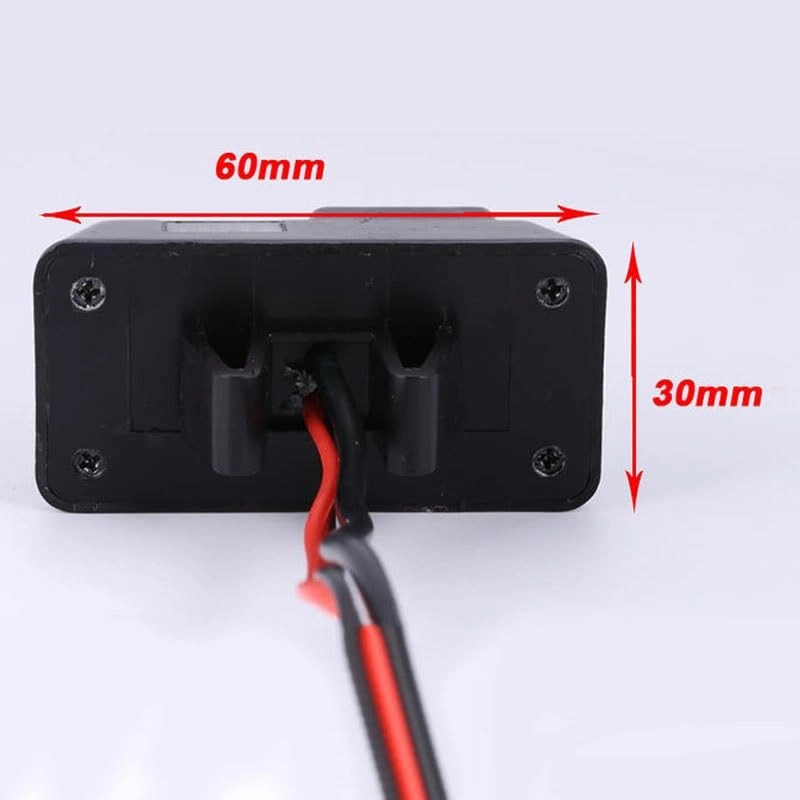

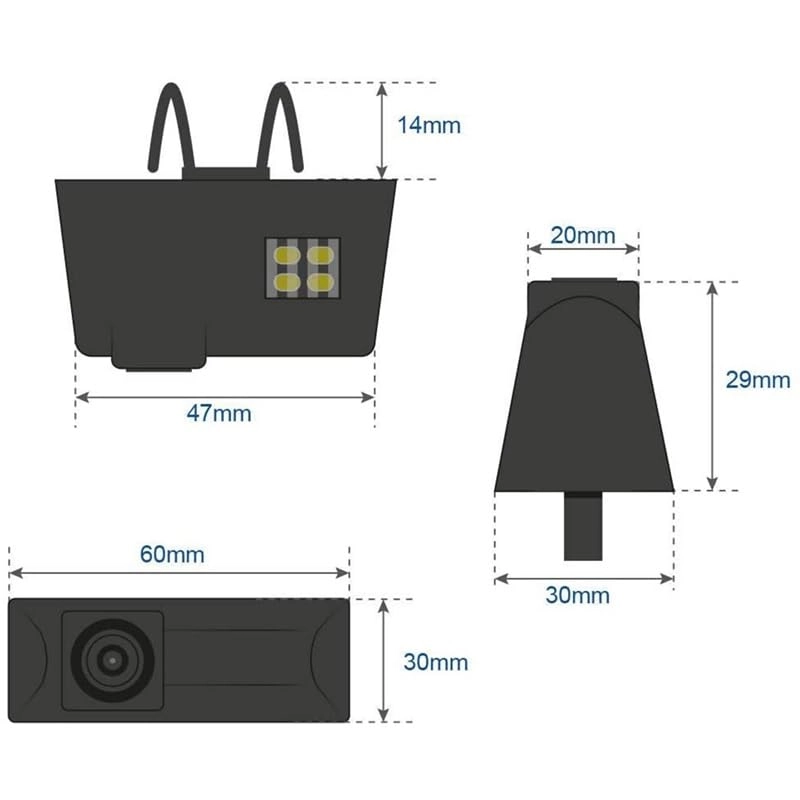

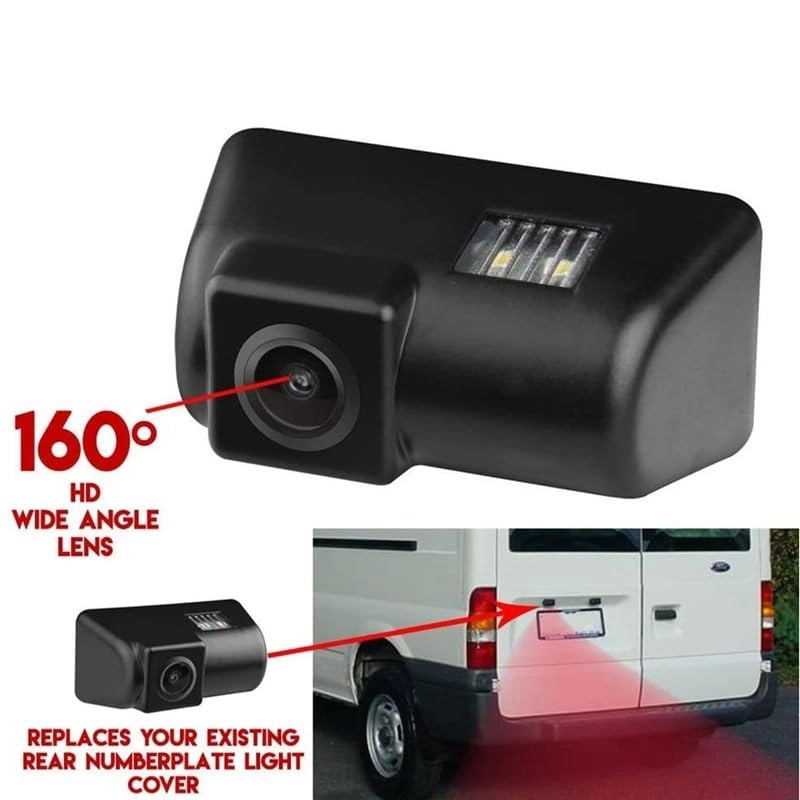

Car High-definition CCD Auto Car Reverse Rear View Camera License Plate Waterproof Parking For Transit For For Connect High sensitivity and low power consumption. Night vision and water proof. it simply fits where the number plate lights goes so NO DRILLING and just fit. Wireless connection type,savaing your time,more faster and more easier,just take 5 minutes. Model Number: B45720 Camera Size: 60x30x22mm Power cable Length: approx. 58cm Wireless Transmitter Cable Length: 1.72M Wireless Receiver Cable Length: 1.72M Sensor:CCD Video System: NTSC Detachable Panel: No Lens Angle: 170° Resolution: 420 TV Lines Power Supply: 12 V Power Consumption: 1.3 W Features: AV-IN Interface Port: AV Out Video Input: 2 channel S/N ratio: Better Than 48db Operation Temperature: -20°C - 80°C RH95% Max Waterproof: IP67 Material:plastic colour:Black Installation Steps : 1.Connect the built-in number plate light of the camera to where the stock number plate light was connected to get the power. 2.Connect the wireless module (transmitter) to your camera via the two cables- yellow plug for AV output and red plug for power. 3.Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative. 4.Connect the wireless module (receiver) to your car monitor - yellow plug for AV input. 5.Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative. 6.The image will shows when the car in reverse mode. Package Contents: 1 x CCD Reversing Camera 1 x Power Cable *** Safe and convenient parking. *** With an improved rear camera, you can park with ease even in the tightest parking lots. *** With night vision function, adjustable angle, design with clear day and night image quality. *** waterproof camera, can be used in rainy and snowy days.
