Dynavsal Car Reversing Camera - Night vision Wired 480/520 TV lines

Fits all below models:

Replacement for VW Magotan Polo Hatchback New Bora Golf Jetta Phaeton Skoda Superb

Replacement for VW Passat CC Touran Caddy Golf Plus Multivan T5 Transporter

Replacement for VW Passat 2009 2010 2011.

Replacement for VW Jetta 2009 2010 2011 2012

Replacement for VW Bora 2009 2010

Replacement for VW Passat CC 2009 2010 2011 2012 2013 2014

Replacement for VW Polo 2013 2014.

Replacement for VW Caddy (from 2004).

Replacement for VW Passat B6 Estate / Variant (2006-2008).

Replacement for VW Passat 3C (from 2003).

Replacement for VW Passat 3B (from 2001).

Replacement for VW Passat B5 Limuzyna (2001-2005).

Replacement for VW Transporter T5 (from 2003).

Replacement for VW Touran 1.9 TDI (from 2003).

Replacement for VW Jetta (from 2005).

Replacement for VW Golf 4 IV Hatchback

Replacement for VW Golf Plus (from 2005).

Replacement for VW Sharan.

Replacement for Skoda Superb/Polo/Touareg

Product parameters:

1. TV system: NTSC (if you want PAL, please email us).

2. Resolution: 480/520 TV lines.

3. Lens angle: 140 ~ 170 degrees.

4. S/N ratio: more 48 dB (AGC-OFF).

5. Video colour: night vision colour (night version).

6. Video output: 1.0Vp-p, 75Ω.

7. Image device: 1/3 inch colour.

8. Sensing area: 5.78 x 4.19 mm.

9. Sync. System: internal

Voltage: DC 12 V + -1.

11. White balance: Auto

12. Waterproof: IP67.

Effective pixels: 628 x 586.

Electronic shutter: 1/60-1/10000 second.

Current consumption: ≤ 150 mA.

Current consumption: 90 mA max.

Temperature: -40°C to +60°C, RH95% max.

Minimum illumination: 0.3Lux/F1.2.

19. Operating temperature: -30°C to +50°C, RH95%.

20. Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD.

Package includes:

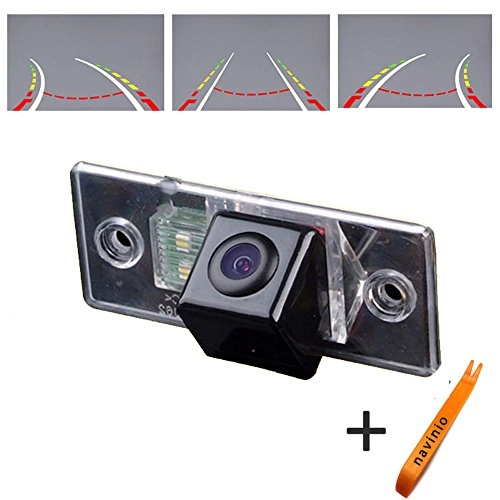

1 x rear view camera.

1 x power cable.

1 x 6 metre video cable.

1 x user manual.
