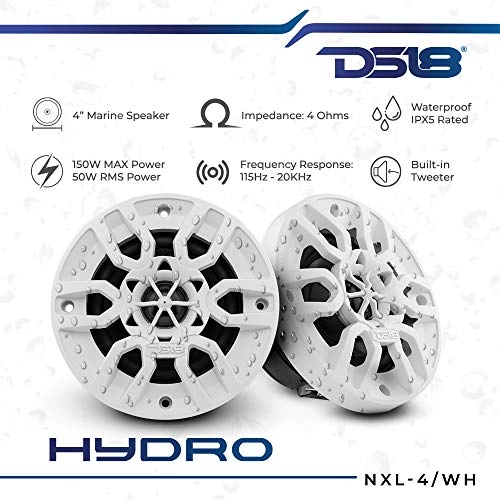

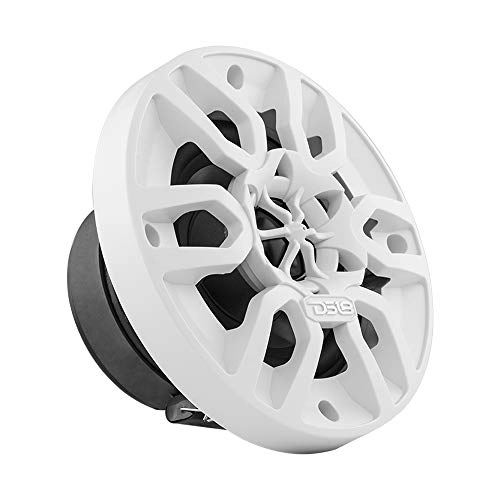

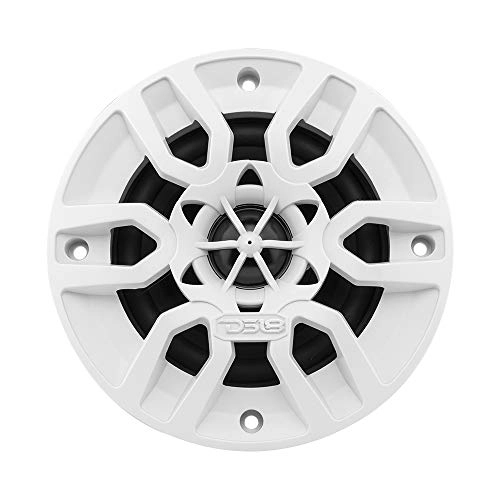

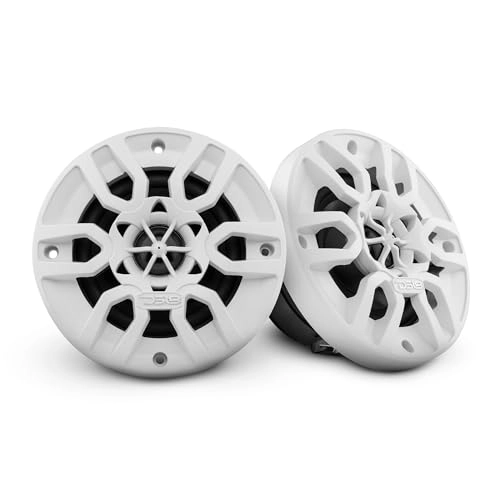

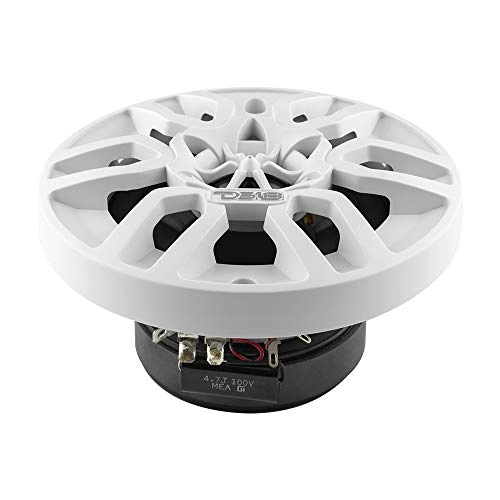

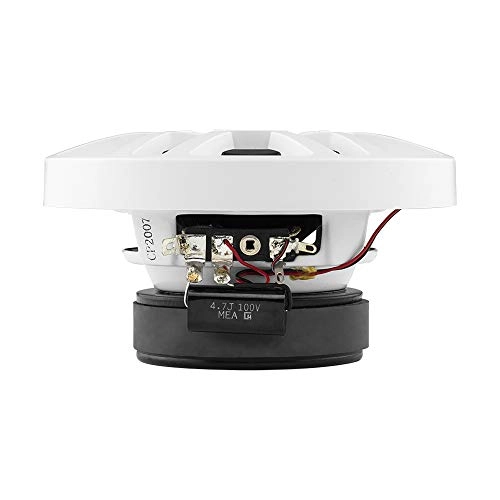

DS18 NXL-4 - 4" 150W

DS18 NXL-4/WH

Nominal Diameter: 4" Nominal Impedance: 4 OHM RMS Power Handling: 50 Watts Maximum Power Handling: 150 Watts Sensitivity: 89 dB Frequency Response: 115 HZ - 20KHz Recommended HI Pass Crossover: 120Hz Voice Coil Diameter: 1" Voice Coil Former Material KSV Winding Material Copper Wire Cone Material Injection Surround Material Rubber Basket Material Metal Magnet Material Ferrite Magnet Weight: 11 Oz

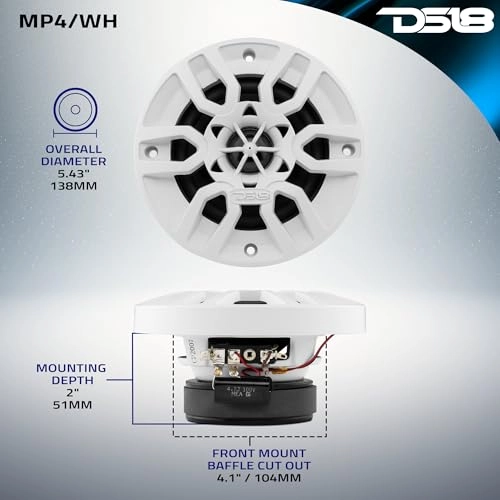

Measurement Overall Diameter: 5.43" Overall Depth: 3.03" Front Mount Baffle Cutout: 4.13" Mounting Depth: 2.08" Motor Diameter: 3.14"
