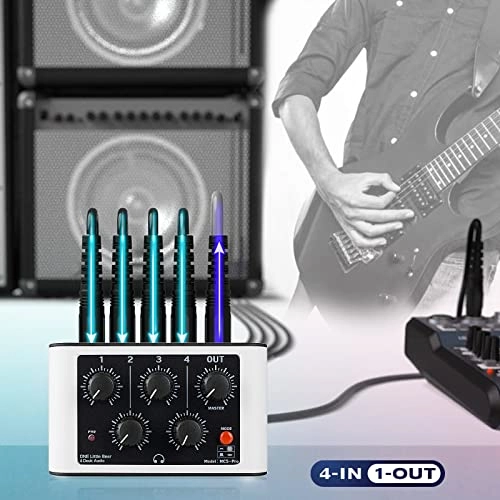

Douk Audio MC5 PRO - 4 channels

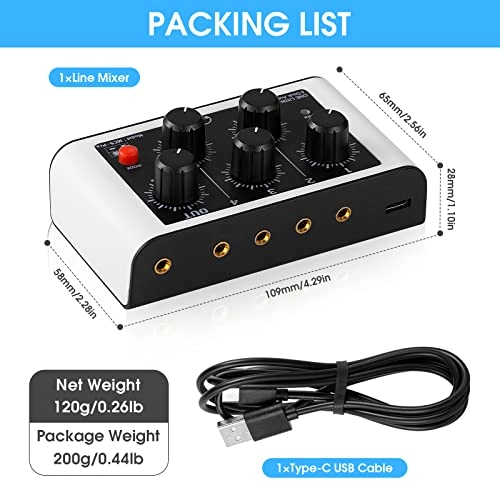

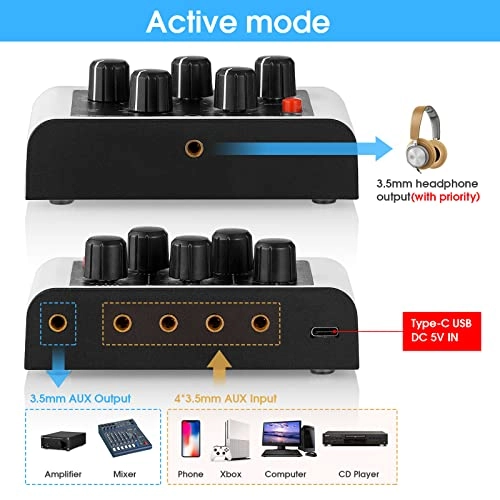

Warm Tips 1. In active mode, please use independent USB power supply to power MC5 pro, cannot share the same power supply with audio device, or else common ground noise will be caused. 2. The 3.5mm headphone jack output is prior, 3.5mm AUX output on the back panel will auto disconnect if headphone is inserted. 3. Recommend to use active mode if want to connect headphone for monitoring, or else the output sound will be very small. 4. Please keep wireless device such as WIFI or phone away from MC5 PRO, or else noise may be caused. 5. MC5 PRO only supports standard audio signal such as CD / DVD / phone, cannot connect phono turntables or MIC directly. Parameters Audio input: 4 groups of 3.5mm AUX Audio output: 1× 3.5mm AUX / 1× 3.5mm headphone jack (cannot output at the same time) Passive mode: No power required, passive control. Input impedance: 50KΩ Output impedance: 4.7KΩ Active mode: Working voltage: DC 5V (≥0.5A) Power interface: Type-C USB Output impedance: 3Ω Dimensions(L*W*H): 109*65*28mm / 4.29*2.56*1.10in (not including knobs) Net weight: 120g / 0.26lb Package weight: 200g / 0.44lb Packing List 1×Line Mixer 1×Type-C USB Cable
