DFGJ 3rd Brake Light Camera - Night Vision Wire

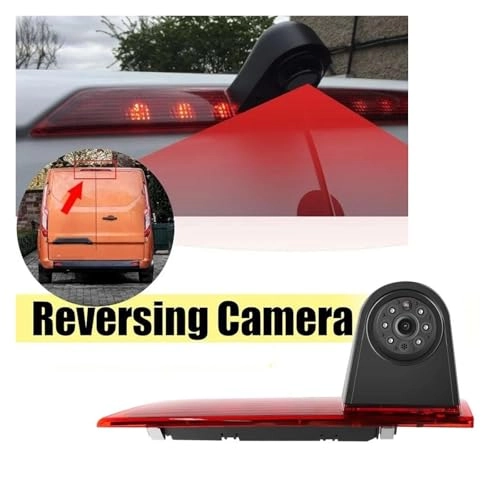

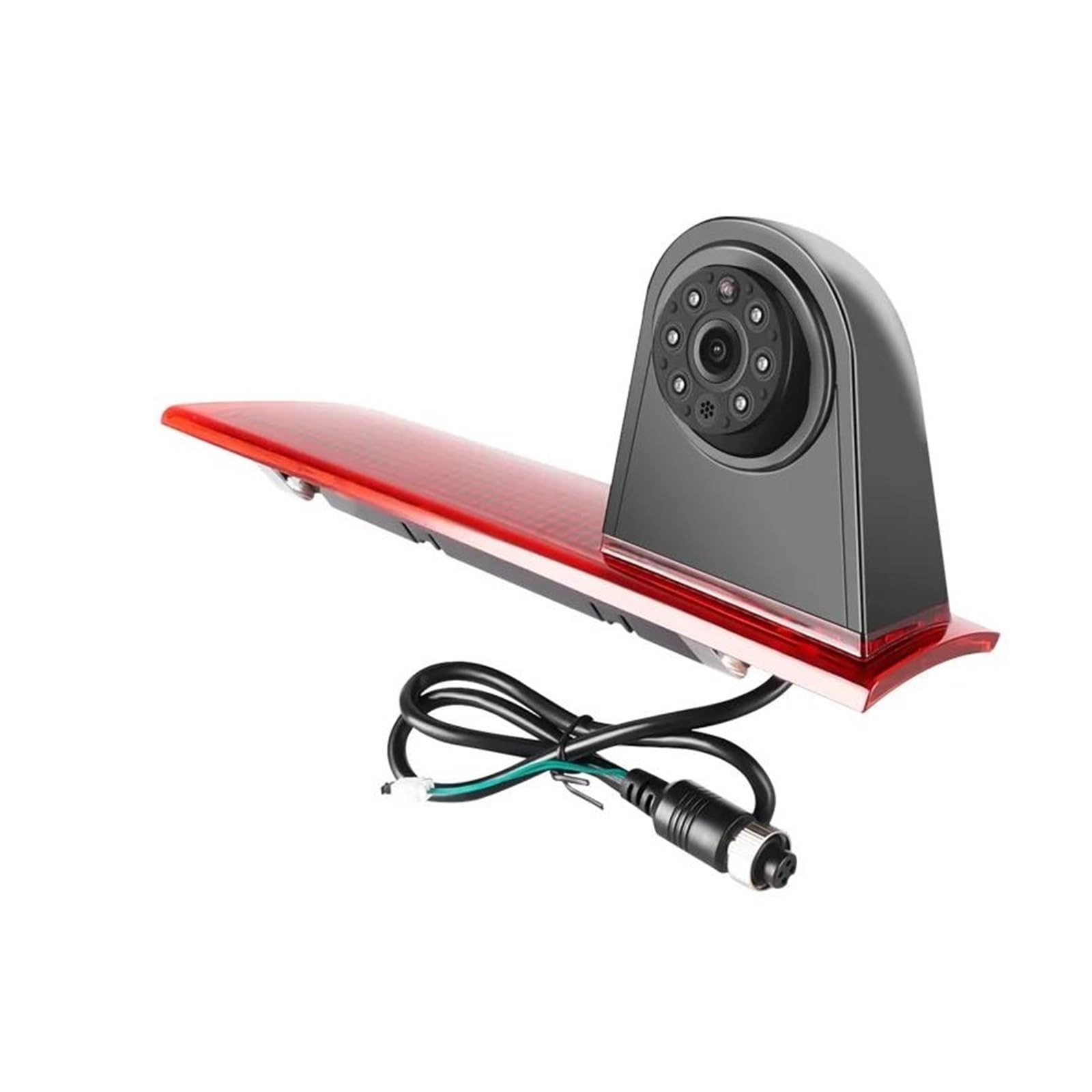

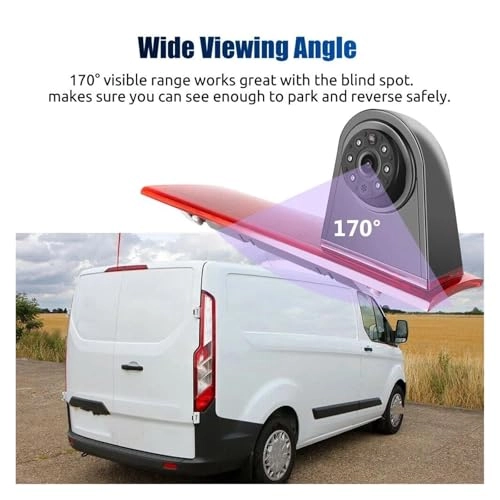

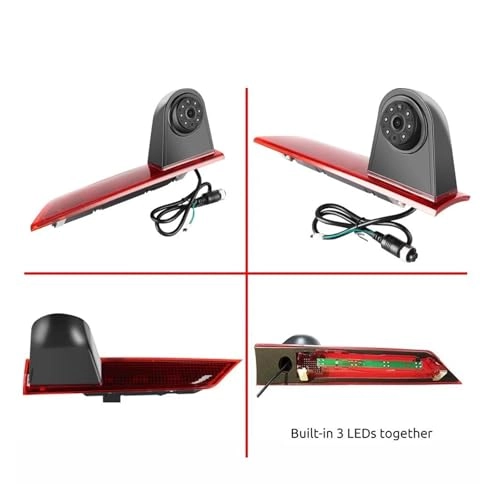

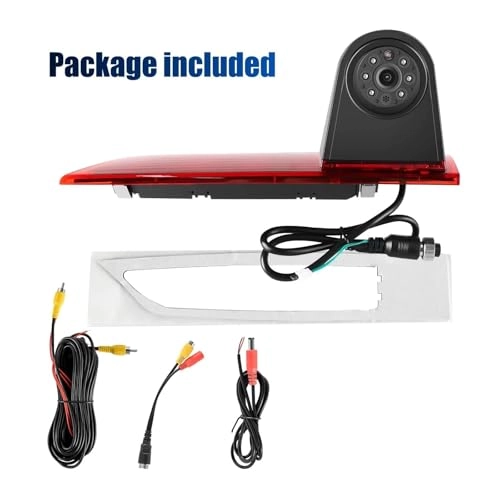

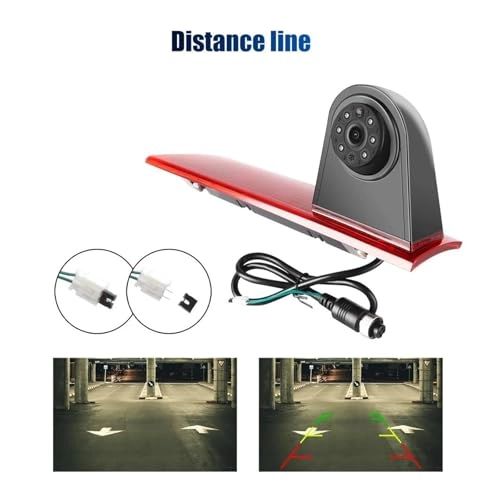

Suitable for: - For Transit Custom 2012 2013 2014 2015 2016 3rd Brake Light Cover HD Rear View Backup Camera IP68 Waterproof Night Vision 【Camera of CMOS】 NTSC, resolution 720 x 480 pixels, detection angle: 170 degrees, voltage 12V, camera lens flexibly adjustable for optimal visibility. 【Installation without drilling or sealing】 With CCD lens. visibility even at night. IP68 rating, waterproof, viewing angle 170-degree wide angle lens. 【Easy mounting】 You take the outer cover of your 3. Brake light off and use the special Custom rear view camera. The connection cable is fed into the vehicle interior, where the supplied 8m cable with anti-vibration screw plug is connected. Specification: Image sensor: 1/3 PC2099CMOS Resolution: 720*480 pixels TV lines: 700TVL Detection angle: 170° Material Camera housing: plastic Minimum lighting: 0.1 Lux Video standard: PAL Voltage: 12V Ambient temperature range: -20°C to 75°C <;2 W Night vision: 6 infrared diodes with brightness sensor Distance lines: optional incl. 8m cable Installation instructions: Remove brake light Insert lighting unit in camera Reinstall camera with brake light Connect the power supply cable to the reversing light Lay the video cable in the vehicle to the monitor Package Included: 1x Reversing Camera Integrated in Brake Light 1x 8m/26ft RCA Video Cable 1x Adapter Cable 1x Power Cable Easy Installation: The reversing camera can be easily installed in your vehicle using screws or the included double-sided tape. No drilling, wiring, or connecting to reversing lights is required. It's ideal for first-time car camera users. Customer Service: Installation and removal are very convenient. If you have any questions, please email us, and we will be happy to assist you.
