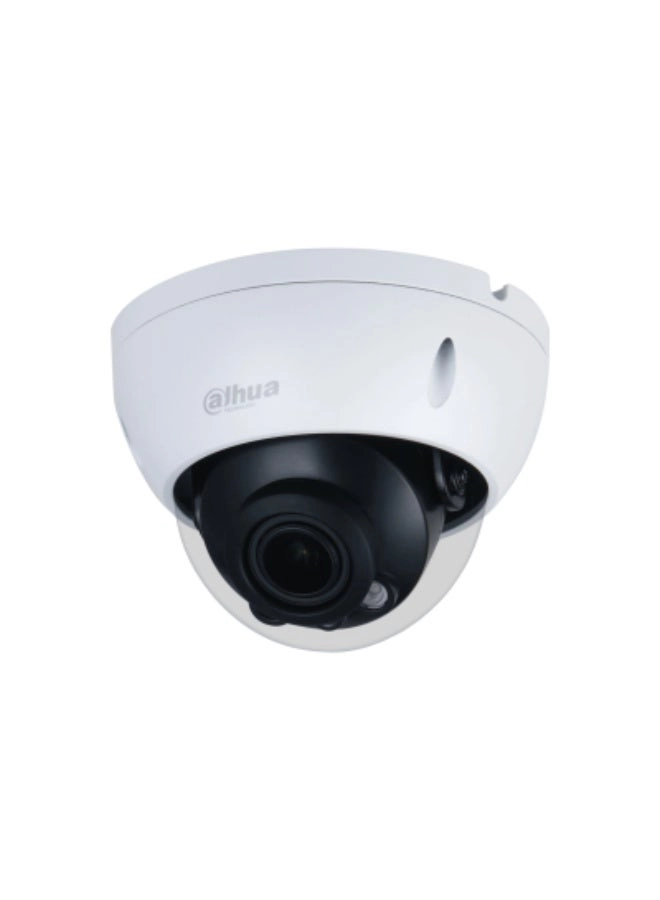

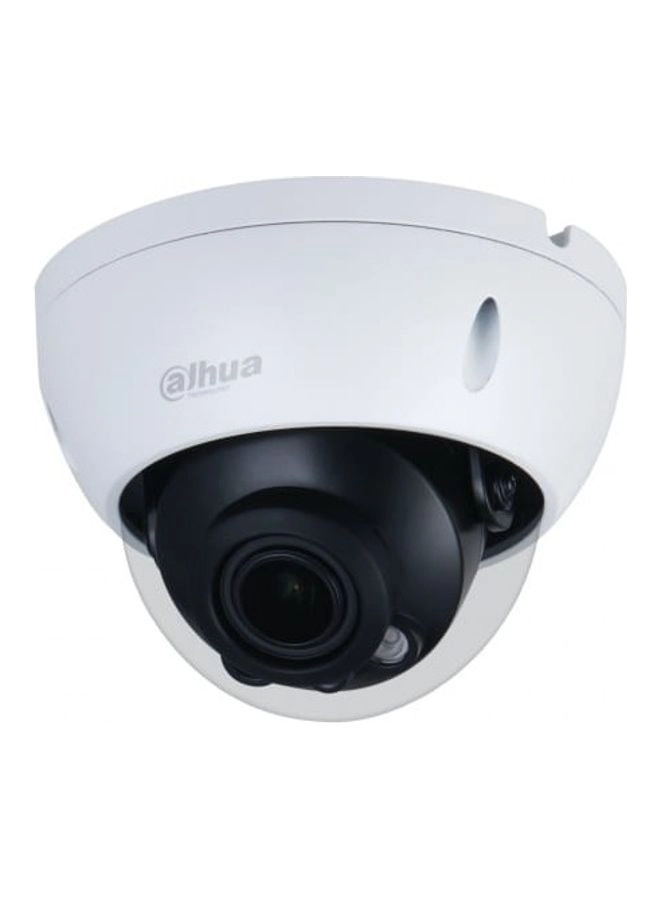

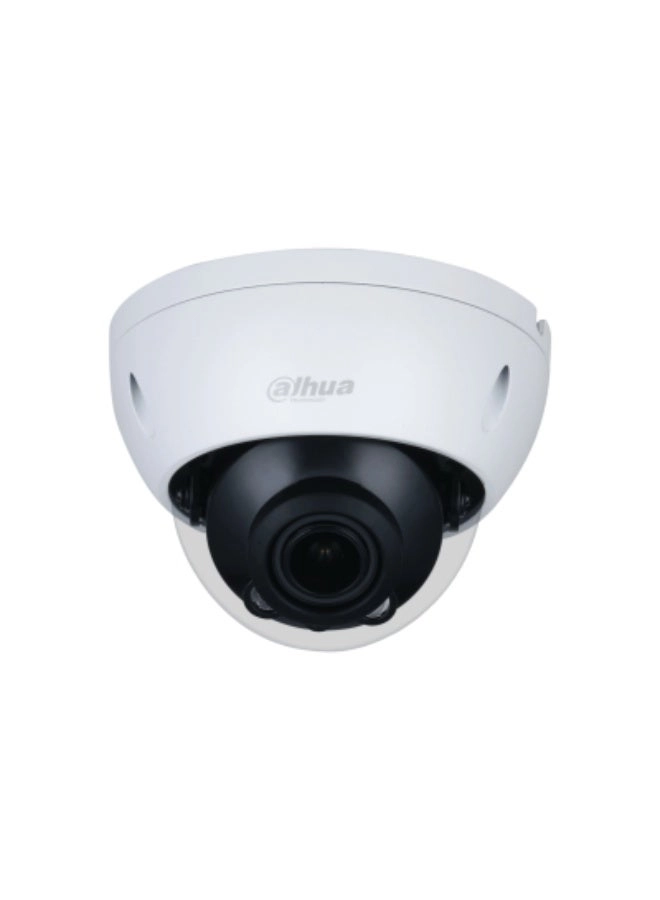

Dahua Technology IPC-HDBW3441R-ZAS

Unavailable

Key Features

Camera tilt control: Yes
Recognize distance: 37.3m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 54°°
Lens viewing angle, diagonal: 124°°
Power consumption (Power over Ethernet (PoE)): 7.7W
Identify distance: 18.7m
Auto flip: Yes
Fixed focus: Yes
Type: IP security camera
Mirror: Yes
Audio codecs: G.711Mu, G.711a, G.723, G.726, PCM
Motion sensor: Yes
Audio output channels: 2.0channels

Specifications

Features

Web browser

✓

Voice codecs

G.711Mu, G.711a, G.711u, G.723, G.726, PCM

Internal memory

512 MB

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Audio formats supported

G.711, G.711 A-law, G.711 μ-law, G.722

Card reader integrated

✓

Maximum memory card size

256 GB

Video motion detection

✓

Connectivity technology

Wired

Product colour

White

Video streaming

✓

Audio system full duplex

✓

Fixed focus

✓

Type

IP security camera

Mirror

✓

Audio codecs

G.711Mu, G.711a, G.723, G.726, PCM

Motion sensor

✓

Audio output channels

2.0

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576

Recognize distance (wide)

12.80 m

Recognize distance (tele)

37.30 m

ROM capacity

128 MB

Packaging data

Package weight

986 g

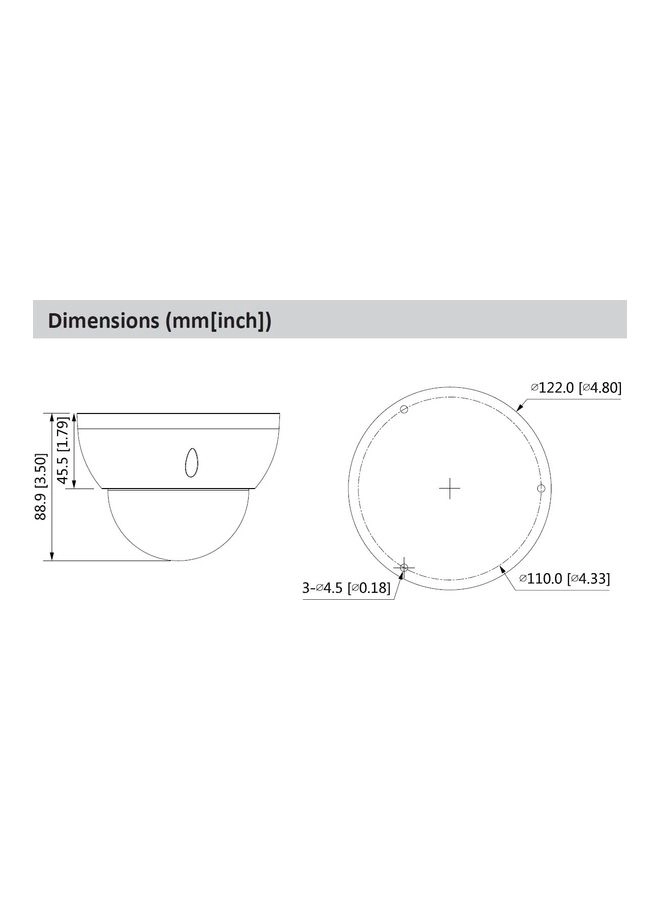

Weight & dimensions

Weight

492 g

Height

94 mm

Diameter

122 mm

Management features

Web-based management

✓

Management software

DSS

Behavior analysis

Intrusion detection, Line crossing detection

Power

Power consumption (typical)

2.80 W

AC input voltage

12 V

Power consumption (max)

8.50 W

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

7.70 W

Performance

Number of effective pixels (H x V)

2688 x 1520 pixels

Camera pan control

✓

System requirements

Mobile operating systems supported

Android, iOS

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

355 °

Storage

Compatible memory cards

MicroSD (TransFlash)

Built-in HDD

✗

Design

International Protection (IP) code

IP67

IK code

IK10

Housing material

Metal

Placement supported

Indoor/Outdoor, Outdoor

Mounting type

Ceiling, Ceiling/Wall

LED indicators

Yes

Form factor

Dome

Packaging content

Manual

✓

Network

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.3af

Supported network protocols

802.1x, ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, P2P, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SAMBA, SFTP, SMTP, SNMP, TCP, UDP, UPnP

Streaming method

Multicast, Unicast

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Ports & interfaces

Ethernet LAN (RJ-45) ports

Alarm input channels

Alarm output channels

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Technical details

Certification

B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, CE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, CE-LVD:EN62368-1, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Audio

Audio system

2-way

Built-in speaker(s)

✗

Audio detection

✓

Lens system

Minimum aperture number

1.50

Maximum aperture number

1.50

Number of lenses

Detect distance (wide)

64 m

Detect distance (tele)

186.60 m

Observe distance (wide)

25.60 m

Observe distance (tele)

88.80 m

Identify distance (wide)

6.40 m

Identify distance (tele)

22.20 m

Identify distance

18.70 m

Noise reduction technology

3D noise reduction

Recognize distance

37.30 m

Video

Video compression formats

H.264, H.264B, H.264H, H.265, M-JPEG

Video formats supported

H.264, H.264B, H.265, M-JPEG

Frame rate

30 fps

Smart IR

✓

Video recording

✓

Privacy masking

✓

Security

IP address filtering

✓

Automatic Network Replenishment (ANR)

✓

HTTPS encryption

✓

Focusing

Focus

Motorized/Manual

Closest focusing distance

0.80 m

Camera

Day/night mode

✓

Gain control type

Auto/Manual

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Adjustment shutter speed

Auto/Manual

Camera shutter speed

1/3 - 1/100000 s

Image stabilizer

✓

Bit rate control

Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR), Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Normal focusing range

1.5 m

Total megapixels

4 MP

Number of cameras

Focal length range

2.7 - 13.5 mm

Bit rate

3 Kbps - 20480 Kbps

Signal-to-Noise Ratio (SNR)

56 dB

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Progressive scan

✓

White balance

Natural

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Intelligent Video Surveillance (IVS) system features

Intrusion, People counting, Tripwire

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Auto flip

✓

Lens viewing angle, diagonal

124°

Lens viewing angle, vertical

54°

Camera tilt control

✓

Shutter

Camera shutter type

Electronic

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 355 °

Image sensor

Maximum resolution

2688 x 1520 pixels

Dynamic range

120 dB

Minimum illumination

0.00 lx

Night vision

Number of illumination LEDs

Night vision

✓

LED type

Night vision distance

40 m

Panoramic camera

Number of Privacy masking areas (panoramic camera)

Product Details

4MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera

Files

Product Brochure

mmo_102155713_1671782067_6654_7773.pdf

PDF• 552.8 KB

User manual

mmo_102155713_1671782108_8952_7596.pdf

PDF• 819.6 KB

Reviews
