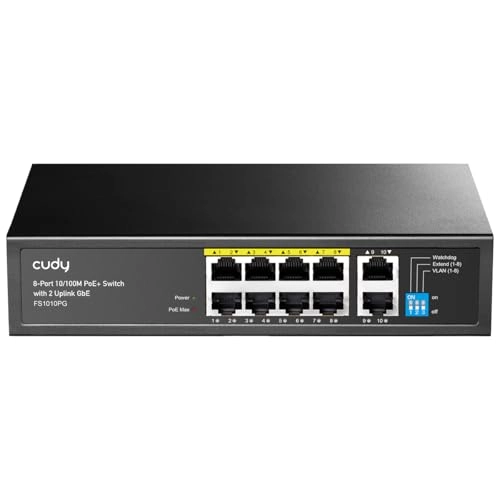

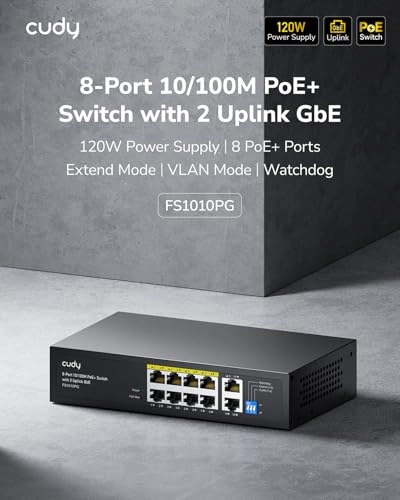

Cudy FS1010PG 10-ports

Name: Cudy FS1010PG 10-ports
Brand: Cudy
SKU: 345508
Availability: InStock

Best offer

AED

271²⁶

Key Features

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Uplink ports quantity: 2
Store-and-forward: Yes
Power over Ethernet plus (PoE+) ports quantity: 1
Half duplex: Yes
Jumbo frames: 1528
Full duplex: Yes
MAC address table: 8000entries
Bandwidth: 2Gbit/s
Jumbo frames support: Yes
Forwarding rate: 1.48Mpps
Power source: AC
Surge protection: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T

Specifications

Features

Mean time between failures (MTBF)

50000 h

Plug and Play

✓

Product colour

Black

Packet buffer memory

0.25 MB

Full duplex

✓

MAC address table

8000 entries

Bandwidth

2 Gbit/s

Jumbo frames support

✓

Forwarding rate

1.48 Mpps

Weight & dimensions

Height

44 mm

Depth

150 mm

Width

220 mm

Power

Power connector

AC-in jack

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Surge protection voltage

4 kV

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

120 W

Power source

Performance

Surge protection

✓

Design

Housing material

Metal

Fanless

✓

LED indicators

Activity, Link, PoE, Power

Packaging content

Cables included

Power supply included

✓

Network

Networking standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

VLAN support

✓

Copper ethernet cabling technology

100BASE-TX, 10BASE-T

Ethernet LAN data rates

Flow control support

✓

Jumbo frames

1528

Half duplex

✓

Store-and-forward

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Cable types supported

Cat3, Cat4, Cat5, Cat5e

Power over Ethernet plus (PoE+) ports quantity

Uplink ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Product Details

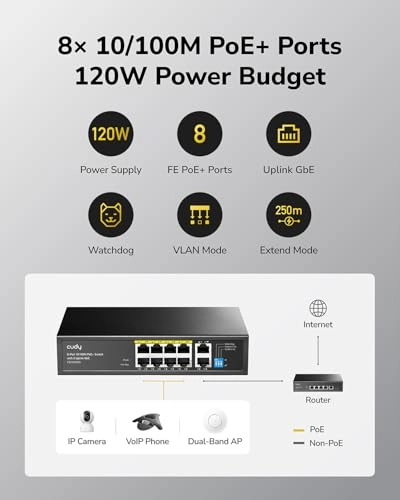

120 W Power budget & 30 W Maximum One Port Supports a total PoE power of 120 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard. Watchdog guarantees uninterrupted operation of the PoE devices The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation. Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-) Surveillance Works with IP Cameras for home and office, small business VoIP Conference Call Works with VoIP phones for business conference Wi-Fi Coverage Works with WiFi APs for office and business

Files

Product Brochure

mmo_101307874_1659079608_5918_32317.pdf

PDF• 777.8 KB

User manual

mmo_101307874_1659079617_8093_31307.pdf

PDF• 1 MB
