Cryfokt Car Driving Recorder - 640x480

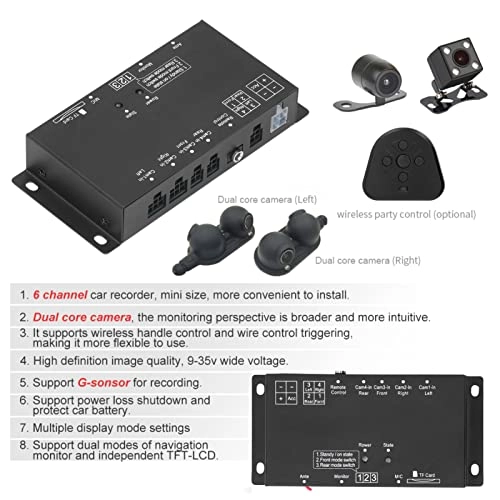

1. [COMPACT SIZE] Easy installation due to the mini size design. 2. [WIDE VIEW ANGLE] Dual cameras for a wider monitoring perspective. 3. [FLEXIBLE CONTROL] Support wireless handle and wire control triggering. 4. [BATTERY PROTECTION] Power loss shutdown to protect car battery. 5. [MULITPLE DISPLAY MODES] Dual modes of navigation monitor and TFT-LCD support. Specification: Item Type: Mobile Digital Video Recorder Material: ABS + Metal Remote Control 1: Built-in 1pc CR2025 button battery 100mah Remote Control 2: Built-in 1pc CR2025 button battery 100mah Video Format: PAL/NTSC (automatic identification, note: the camera needs to be connected before power on, this machine supports mixed formats) Video Parameters of Each Channel: Resolution: 640x480 Refresh Rate: 30 frames per second Peak Value: 1Vp-p Impedance: 75Ω Video Interface: 6 inputs (6P connector interface), 1 output ( interface) Video Recording: Memory card (less than or equal to 64G, not included), the recording format is AVI Audio: 1 in 1 out (reserved function) Default Boot Screen: The default boot Tian character -shaped or H-shaped four-screen mode, selectable in the menu Video mode Same screen video mode Picture Mode: Tian character-shaped four-picture mode, H-type four-picture mode, picture mode, picture mode, and single-picture full screen and other picture modes Host Protection Mode: Power loss protection (automatically shut down when the voltage is lower than the set value) Operation Screen Mode: Wire control: high level trigger / wireless handle / manual button Positive/Mirror Selection: OFF/ON Host Operation Power Consumption: 2W Output Power: 5V/1A (camera power supply) Rated Voltage: DC 12V/24V Maximum Voltage: DC 9V-36V Working Temperature: 0℃ to +55℃ Application: Universal Modification How to Use: 1. Connect the camera to
