Cisco RV132W-A-K9-NA - 802.11n

Key Features

DSL WAN: Yes
3G/4G USB modem compatibility: Yes
3G: Yes
4G: Yes
Firewall: Yes
WLAN data transfer rate (max): 75Mbit/s
ADSL2+: Yes
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Antenna design: Internal
Ethernet LAN interface type: Fast Ethernet
Antenna gain level (max): 3dBi
DHCP client: Yes
DHCP server: Yes
Product type: Tabletop router
Filtering: Yes

Specifications

Features

Country of origin

China

Antennas quantity

Universal Plug and Play (UPnP)

✓

Quality of Service (QoS) support

✓

On/off switch

✓

Security algorithms

3DES, AES, SSH, WEP, WPA, WPA2-PSK, WPS

Product colour

Black

Antenna gain level (max)

3 dBi

DHCP client

✓

DHCP server

✓

Product type

Tabletop router

Packaging data

Package weight

830.07 g

Package height

109.50 mm

Package depth

269 mm

Package width

192 mm

Weight & dimensions

Weight

331.12 g

Height

38.10 mm

Depth

200.20 mm

Width

139.70 mm

Power

Output current

1 A

Output voltage

12 V

Power source type

Performance

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wireless LAN features

WLAN data transfer rate (max)

75 Mbit/s

Other features

Bandwidth (first)

2.40 GHz

Filtering

✓

Software

Firewall

✓

Design

Reset button

✓

Network

Networking standards

IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3u

Supported network protocols

IPv4, IPv6

Wi-Fi band

Single-band (2.4 GHz)

Cabling technology

10/100Base-T(X)

SIM card slot

✗

Ethernet LAN data rates

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN

✓

Ethernet LAN interface type

Fast Ethernet

Ports & interfaces

Memory card slot(s)

✗

Ethernet LAN (RJ-45) ports

USB port

✓

Ethernet WAN

✓

USB 2.0 ports quantity

DSL features

ADSL2+

✓

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 85 %

Technical details

Certification

CE, FCC, IC, Wi-Fi

Protocols

Routing protocols

RIP-1, RIP-2

Security

DMZ support

✓

Antenna

Antenna design

Internal

Mobile network

✓

WAN connection

3G/4G USB modem compatibility

✓

DSL WAN

✓

Product Details

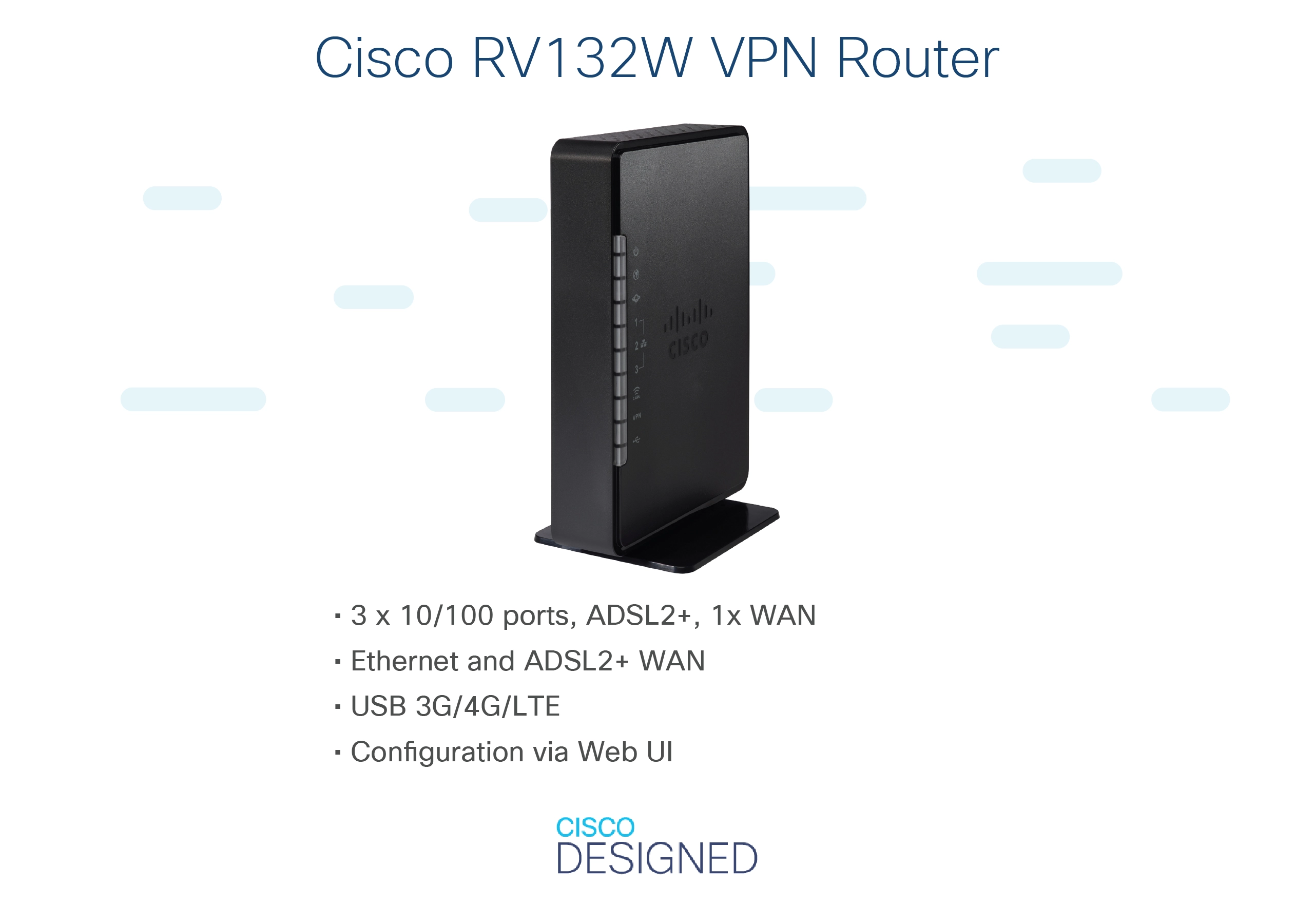

The Cisco® RV132W Wireless-N ADSL2+ VPN Router is easy to use, set up, and deploy. This flexible router offers great performance and is suited for small or home offices (SOHO) and smaller deployments. This networking-in-a-box model offers a quick deployment process that only takes a few minutes to set up using a web-based user interface. - VPN security - Built-in three-port Fast Ethernet switch - Asymetrical Digital Subscriber Line 2 plus (ADSL2+) connectivity - Fast Ethernet WAN - USB 3G/4G/LTE - Limited lifetime warranty - Industry-leading support - Internal antennas - Sleek new design The RV132W can be used to connect to an ADSL2+ interface or a regular Ethernet WAN interface. The model supports the free Cisco Small Business FindIT Network Discovery Utility, which allows for automatic discovery and one-click software downloads.
