Cisco C1300-48FP-4X 48-ports

Name: Cisco C1300-48FP-4X 48-ports
Brand: Cisco
SKU: 347646

Best offer

AED

6 950⁰⁰

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
DHCP features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Number of queues: 8
Number of static routes: 990
Static route: Yes
Port mirroring: Yes
Policy-based routing: Yes
Jumbo frames: 9000
Queue scheduling algorithms: Weighted Round Robin (WRR)
Switching capacity: 104Gbit/s
MAC address table: 16000entries
Access Control List (ACL): Yes
Access Control List (ACL) rules: 1024

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

856329 h

Plug and Play

✓

Internal memory

1024 MB

Processor frequency

1400 MHz

MIB support

Quality of Service (QoS) support

✓

Noise level

37.30 dB

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS

Rack mounting

✓

Virtual LAN features

Private VLAN, Voice VLAN

Product colour

White

Packet buffer memory

3 MB

Queue scheduling algorithms

Weighted Round Robin (WRR)

Switching capacity

104 Gbit/s

MAC address table

16000 entries

Access Control List (ACL)

✓

Access Control List (ACL) rules

1024

Authentication type

RADIUS, TACACS+

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Multicast support

✓

Static route

✓

Switch layer

L2/L3

Packaging data

Package weight

7000 g

Package height

95 mm

Package depth

571.80 mm

Package width

480.80 mm

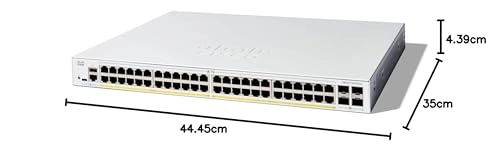

Weight & dimensions

Weight

5430 g

Height

43.90 mm

Depth

444.50 mm

Width

350 mm

Management features

Web-based management

✓

ARP inspection

✓

Power

Power plug type

Type C

AC input voltage

100 - 220 V

Power consumption (typical)

43.93 W

AC input frequency

50/60 Hz

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

375 W

Power source

Wireless LAN features

IGMP snooping

✓

IGMP proxy

✓

Design

Housing material

Metal

Reset button

✓

LED indicators

Yes

Computer system

Built-in processor

✓

Packaging content

USB Type C cable and mounting hardware

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

VLAN support

✓

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

QinQ implementation

Selective QinQ

Link aggregation

✓

Flow control support

✓

Jumbo frames

9000

Policy-based routing

✓

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Console port

RJ-45/USB Type-C

Combo SFP ports quantity

Installed SFP+ modules quantity

Installed SFP modules quantity

Cable types supported

Cat5e

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

1542.30 BTU/h

Technical details

Certification

CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 62368)

Switch type

Managed

Memory

Flash memory

512 MB

Protocols

IPv4 & IPv6 features

ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of static routes

990

Number of queues

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

DoS attack prevention

✓

Authentication

MAC-based authentication, Web-based authentication

DHCP features

DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping

Solid state drive

Memory type

DDR4-SDRAM

Product Details

The Cisco Catalyst 1300-48FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
