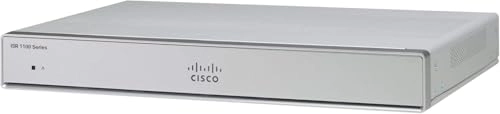

Cisco C1111X-8P 1Gbps

Unavailable

Key Features

DSL WAN: No
3G/4G USB modem compatibility: Yes
Firewall: Yes
WAN/Ethernet LAN ports quantity: 2
ADSL: Yes
ADSL2: Yes
Static route: Yes
Fast Ethernet (copper) ports quantity: 1
Gigabit Ethernet (copper) ports quantity: 8
Wall mountable: Yes
Access Control List (ACL): Yes
DHCP client: Yes
DHCP server: Yes
Port forwarding: Yes
Multicast support: Yes

Specifications

Features

Country of origin

Czech Republic

Antennas quantity

Authentication method

SHA-256

Supported protocols

AAA, ACL, AVC, BFD, BGP, DHCP, DNS, DVMRP, EEM, EIGRP, ERSPAN, EVC, FR, HSRP, IGMPv3, IKE, IPSLA, IPsec, IPv4, IPv6, IS-IS, L2TPv3, LISP, MPLS, OSPF, PIM SM, RADIUS, RIP, RIPv2, RSVP, SSM

Internal memory

4000 MB

Quality of Service (QoS) support

✓

Frequency range

2.40 - 5 GHz

Security algorithms

128-bit AES, 256-bit AES, 3DES, 802.1x RADIUS, AES, DES

Frequency range

2400 - 5000 MHz

Product colour

Silver

Wall mountable

✓

Access Control List (ACL)

✓

DHCP client

✓

DHCP server

✓

Port forwarding

✓

Multicast support

✓

Static route

✓

Packaging data

Package type

Box

Package weight

3460 g

Package height

162.10 mm

Package depth

508 mm

Package width

342.90 mm

Weight & dimensions

Weight

1940 g

Height

44 mm

Depth

244 mm

Width

323 mm

Management features

Web-based management

✓

Power

Output voltage

12 V

AC input voltage

100 - 240 V

Power consumption (typical)

66 W

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✓

Power source type

PoE

Other features

Frequency range

2.4 - 5 GHz

Software

Firewall

✓

Design

LED indicators

Link, Status

Detachable antenna(s)

✓

Computer system

Antenna type

External, Not supported

Packaging content

Quick start guide

✓

Manual

✓

AC adapter included

✓

Network

Data link protocols

HDLC

Switching protocols

RFC 2338

Networking standards

IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Supported network protocols

ACL, BFD, IP SLA, NAT, QoS, VRF Lite

Management protocols

IGMPv3

VLAN support

✓

Cabling technology

10/100/1000Base-T(X)

SIM card slot

✗

Ethernet LAN data rates

10, 100

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN

✓

Ports & interfaces

Ethernet LAN (RJ-45) ports

Power over Ethernet (PoE) ports quantity

Ethernet WAN

✓

USB ports quantity

Installed SFP modules quantity

USB version

3.2 Gen 1 (3.1 Gen 1)

Fast Ethernet (copper) ports quantity

Gigabit Ethernet (copper) ports quantity

WAN/Ethernet LAN ports quantity

DSL features

ADSL2

✓

ADSL

✓

Operational conditions

Operating altitude (imperial)

0 - 3000 m

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 85 %

Non-operating altitude

0 - 4570 m

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

5 - 95 %

Storage temperature (T-T)

0 - 65 °C

Technical details

Certification

2, UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1

Memory

Flash memory

4000 MB

Internal memory type

DRAM

Protocols

Routing protocols

VRRP

IPv4 & IPv6 features

Dual stack IPv4/IPv6

Security

Network address translation (NAT)

✓

Logistics data

Harmonized System (HS) code

85176990

WAN connection

3G/4G USB modem compatibility

✓

DSL WAN

✗

Product Details

The Cisco C1121X-8PLTEP Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.

Files

User manual

mmo_65588242_1554108086_6869_27255.pdf

PDF• 1.3 MB

Product Brochure

mmo_73047347_1710870740_283_1982023.pdf

PDF• 1.4 MB

Cisco ISR1100 and ISR1100X Series Routers

mmo_73047347_1710870740_3337_1982023.pdf

PDF• 775.2 KB
